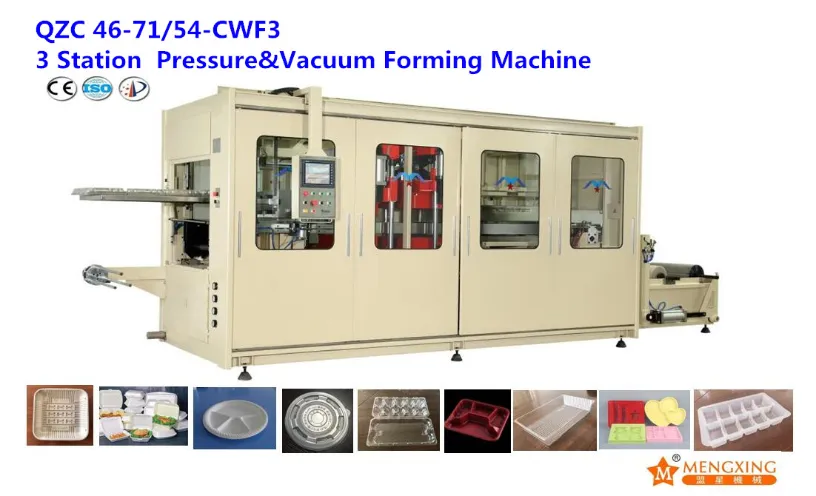

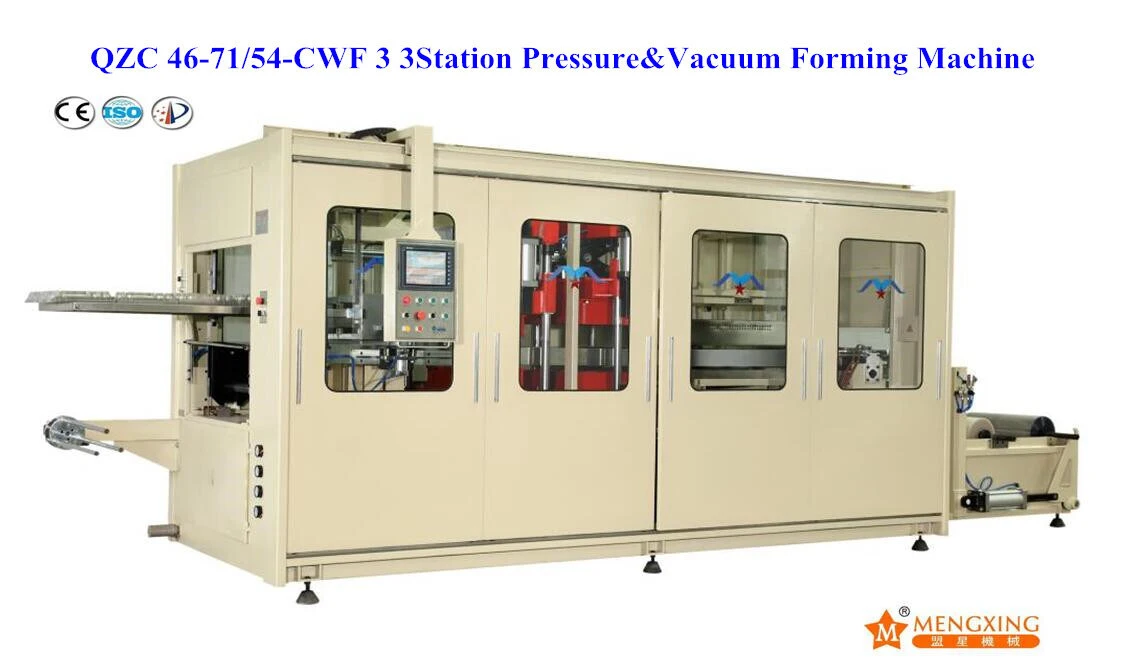

QZC 46-71/54-CWF3 Automatic High Speed Thermoforming Plastic Cup Lid Making Machine
Basic Info.
Automatic High Speed Thermoforming Plastic Cup Lid Making Machine
Usage:
The automatic plastic cup lid making machine is designed for producing various of open-wide plastic containers , such as food trays , plastic trays , cosmetic trays , blister , clamshells , plates and other plastic related items .
Suitable Sheets:
PVC,PP,PS,HIPS,PET,APET,PETG , Etc
Feature Function:
* All actions are controlled by PLC.Touch Screen (HMI) Operation, Easy and Convenient . All production data can record and recall any time .
* Production counting , which can auto-stop or alarm advance , it also has store function , which can store 230 production data .
* Inverter Feeding,Feeding Length Stepless adjust , High Speed ( Max. Sheet Feeding 1000mm/ s) , Accurate and Steady .
* Computer Intellectual Control System , which has the advantage of maintaining temperature stable , lower consumption , long life span . Individual heater control .
* Auto Far Infrared ray Ceramic heater & Solid State Relay self-checking function .
* Heater Stove Tri-section heating .
* Upper/Down Mold Forming
* Positive, Negative Forming
* Forming , Trimming / Same position
* Finished Products Stacked & Auto counting
* Edge Sheet material & Auto rewinder function
* Feeding With motor adjust
* Feeding Chain Width can separate /synchronization electromotion adjustment.
* Heater Stove Auto-push Structure , it can push out under non-stop production , which can save the sheet material .
* Cylinder Sheet Loading Structure , easy for install the sheet .
Technical Parameter
| Model NO. | QZC46-71/54-CWF3 | |
| Adjustable Sheet Width (mm) | 460-710 | |
| Sheet Thickness (mm) | 0.2-1.5 | |
| Max Roller Sheet Dimension (mm) | 600 | |
| Mold ( Die) Stroke (mm) | 2X155 | |
| Mold ( Die ) Base Stroke (mm) | 155 | |
| Max Forming Area (mm2) | 670X540 | |
| Max Forming Height/Depth (mm) | 50/80 | |
| Max Cutting Force(kgf) | 30000 | |
| Capacity (shot/ min) | 8-18 | |
| Cooling Pattern | Water-cooling | |
| Gas source (outer) | Air (m3/ min) | ≥5 |
| Pressure (MPa) | 0.8 | |
| Vacuum Pump(Outer) | Busch R5 0100 | |
| Power | 3 Phase 4 Line 380V50Hz | |
| Heater (kw) | 44.2 | |
| General Power (kw) | 50.42 | |
| Dimension (L×W×H) (mm) | 9400X3000X2430 | |
| Machine Weight (kg) | 9000 | |
Specification :
| PLC | Taiwan Delta |
| Touch Screen Monitor ( 10.4″inch /Color ) | Taiwan Delta |
| Feeding Servo Motor(3.0kw) | Taiwan Delta |
| Stacking Servo Motor (1.5kw) | Taiwan Delta |
| Heater (72PCS ) Heater | GERMAN |
| Solid State Relay (72 PCS ) | CHINA |
| Contactor | Germany Siemens |
| Thermo Relay | Germany Siemens |
| Relay | JAPAN Omron |
| Vacuum Pump | Busch R5 0040 |
| Pneumatic | JAPAN SMC |
| Cylinder | CHINA |
