Plastic Negative Pressure Moulding Machine

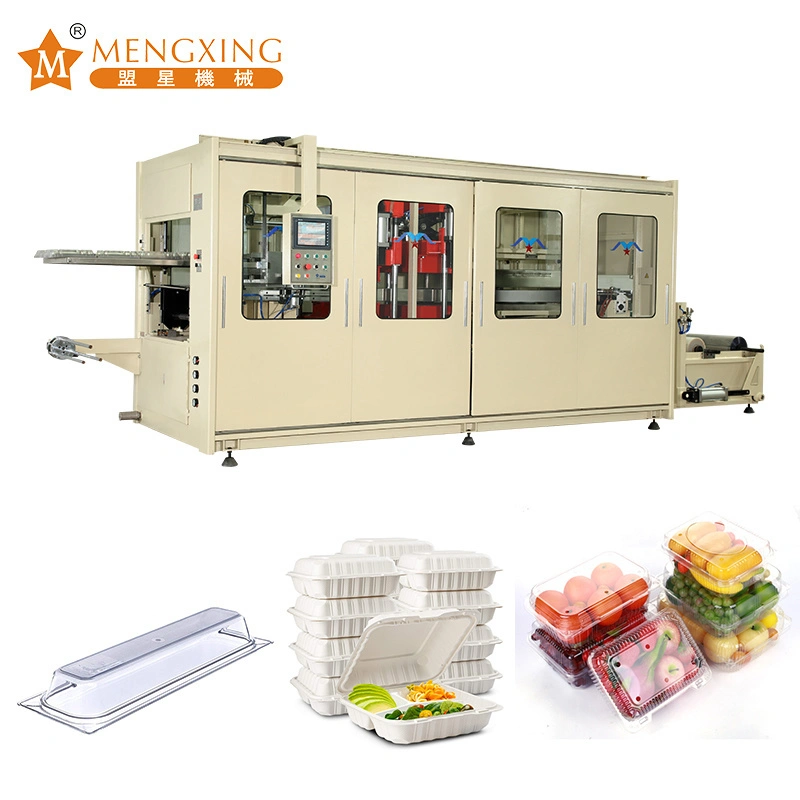

Three Station Automatic Thermoforming Machine High-Speed Vacuum Pressure Forming Machine Plastic Negative Pressure Moulding Machine

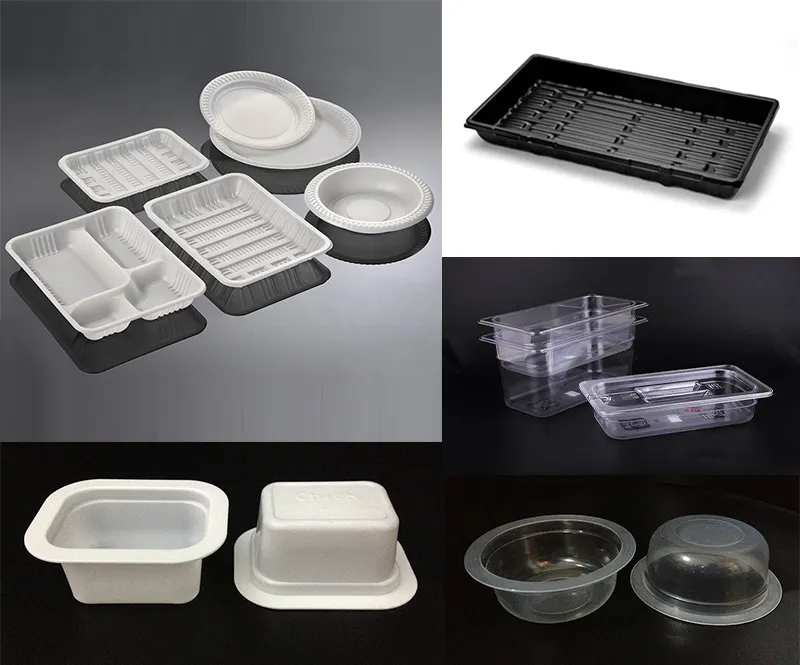

The machine is suitable for making all size packing containers ,in open-type with thin-wall ,by using roll-sheet , under high-speed vacuum suction-forming processing .The products out of this machine can be used for the package of foods .native-products,tourist-goods,textile,medical, toy,cosmetic,electrical elements and daily used hard-ware ,etc .
Sheet fit to the machine
Starch-deposit sheets ,light-deposit sheet ,environment sheet APET ,PETG .Color sheets :PVC,HIPS,PET,PS,PP, CPET,EPS, etc.Fiber-coating-sheet.
Feature Function :
1. Mechanical , Pneumatic, and Electrical Combination. All working action is controlled by PLC. Touch Screen Input , easy and convenient .
2. Three Working Position: Forming / Cutting / Stacking.
3. Pressure / Negative Forming assist with Plug
4. Upper or Lower Mold Forming Method.
5. Servo Motor Feeding, Feeding Length Stepless Adjust, High Speed and Accurate.
6. Upper heater with 3 sections heating, under the heater with 2 sections heating.
7. Heater with Intellectual Temperature Control System, automatic supply the heating, Individual Heater Control, Touch Screen Digital Input , Mini-adjust & Precision and Accurate , Fast Heating ( Only 3 min from 0-400 degree ). Stable and Reliable.It won't affect by outer voltage, lower power consumption, longer life of far infrared ceramic heater .
8. Servo Motor Stacking, Finished Production Accounting.
9. All production data and technical parameter store and recall functions.
10. Edge Automatic trimming.
11. Feeding China Width separate adjust or Motor adjust.
12. Heater automatic push-out function.
13. Auto Roll Sheet Loading, Reduce the Working labor.
|PLC ||Taiwan Delta|
|Touch Screen Monitor ( 10.4″inch /Color )||Taiwan Delta|
|Feeding Servo Motor(3.0kw)||Taiwan Delta|
|Stacking Servo Motor (2kw)||Taiwan Delta|
|Heater (132PCS ) Heater||GERMANY Elstein|
|Solid State Relay (132 PCS ) ||CHINA|
|Thermo Relay||Germany Siemens|
|Vacuum Pump||Busch R5 0040|
|Sheet Width (mm)||460-710|
|Sheet Thickness (mm)||0.2-1.8|
|Max Roll Sheet (mm)||600|
|Forming Mold Stroke (mm)||2×155|
|Cutting Mold Stroke (mm)||155|
|Cutting Base Stroke (mm)||Max 100|
|Max Forming Area (mm2)||670×540|
|Max Forming Depth / Height (mm)||80/50|
|Max Cutting Force(kgf)||30000|
|Working Capacity ( Cycle / min)||4-18 ( Max capacity is 18 Cycle/ Per Min ) |
|Forming Cooling||Water Cooling |
|Air Source||Air (m3/ min)||≥5|
|Air Pressure (MPa)||0.8|
|Vacuum Pump||Busch R5 0040|
|Power||3 Phase 4 Line 380V50Hz|
|Max Power (kw)||78|
|Max Dimension (L×W×H) (mm)||9480×3030×2430|
|Max Weight (kg)||≈8500|
This kind of product can improve the working efficiency of work staff. The operation process is very simple and convenient. Installed with a highly advanced die change equipment, it features high work efficiency.
Having this product definitely speeds up the production time since no thinking is needed by it, there are better repeatability and less human error. Installed with a highly advanced die change equipment, it features high work efficiency.
