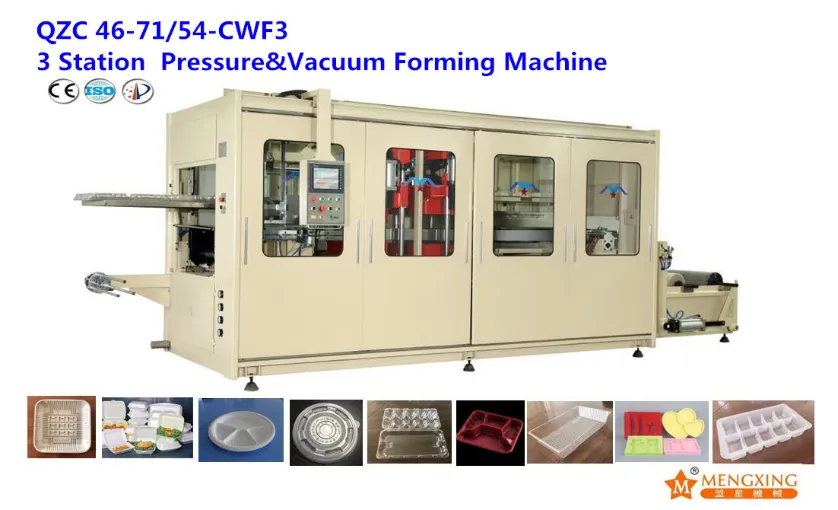

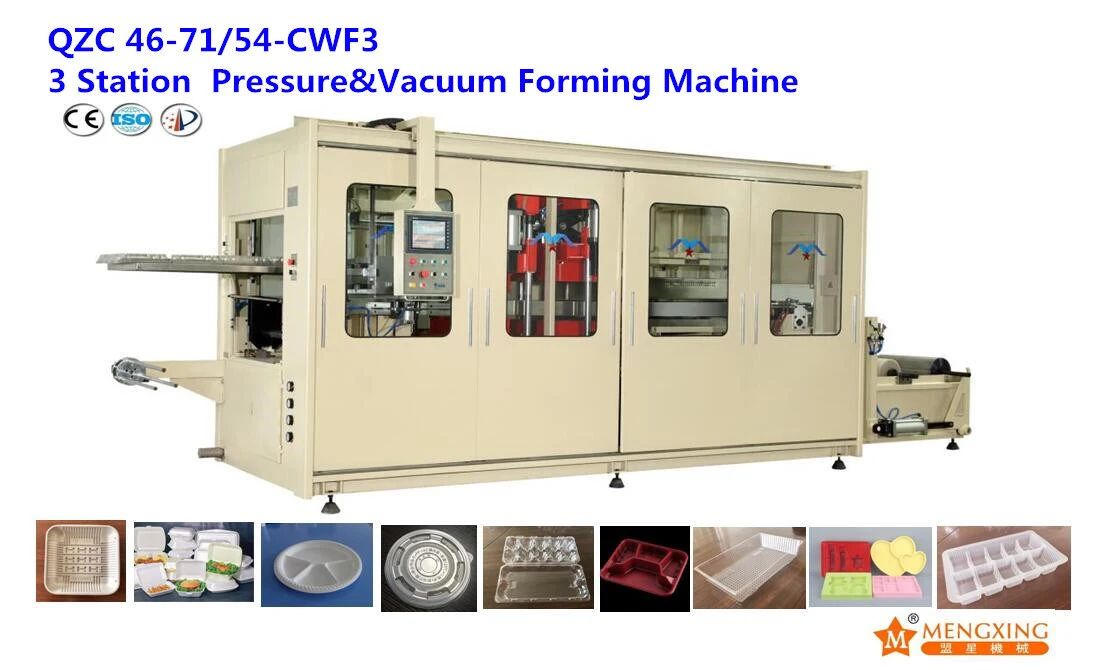

QZC 46-71/54-CWF3 Automatic High Speed Food Container Making Machine

这里可以自定义设置
QZC 46-71/54-CWF3 Automatic High Speed Food Container Making Machine
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障

Basic Info.

Model NO.
QZC46-71/54-CWF3
Certification
ISO9001:2008, CE, UL, QS
Processing Type
Plastic Thermoforming Machine
Voltage
380V/220V 50Hz
Power(W)
96
Warranty
1 Year
Product Type
PVC Profile
Fast Food Equipment
Beautiful Equipment
Condition
New
Packaging Details
Bulk Packing
Trademark
MengXing
Transport Package
as Stanadard Export Packaging
Specification
9400*3030*2430mm
Origin
Guangdong, China (Mainland)

QZC 46-71/54-CWF3 Automatic High Speed Food Container Making Machine


Usage:

The food container making machine is designed for producing various of open-wide plastic containers , such as food trays , plastic trays , cosmetic trays , blister , clamshells , plates and other plastic related items .

Suitable Sheets:

PVC,PP,PS,HIPS,PET,APET,PETG , Etc

Feature Function:

* All actions are controlled by PLC.Touch Screen (HMI) Operation, Easy and Convenient . All production data can record and recall any time .

* Production counting , which can auto-stop or alarm advance , it also has store function , which can store 230 production data .

* Inverter Feeding,Feeding Length Stepless adjust , High Speed ( Max. Sheet Feeding 1000mm/ s) , Accurate and Steady .

* Computer Intellectual Control System , which has the advantage of maintaining temperature stable , lower consumption , long life span . Individual heater control .

* Auto Far Infrared ray Ceramic heater & Solid State Relay self-checking function .

* Heater Stove Tri-section heating .

* Upper/Down Mold Forming

* Positive, Negative Forming

* Forming , Trimming / Same position

* Finished Products Stacked & Auto counting

* Edge Sheet material & Auto rewinder function

* Feeding With motor adjust

* Feeding Chain Width can separate /synchronization electromotion adjustment.

* Heater Stove Auto-push Structure , it can push out under non-stop production , which can save the sheet material .

* Cylinder Sheet Loading Structure , easy for install the sheet .


Technical Parameter

Model NO.

QZC46-71/54-CWF3

Adjustable Sheet Width (mm)

460-710

Sheet Thickness (mm)

0.2-1.5

Max Roller Sheet Dimension (mm)

600

Mold ( Die) Stroke (mm)

150

Mold ( Die ) Base Stroke (mm)

93

Max Forming Area (mm2)

680×400

Max Forming Height/Depth (mm)

50

Max Cutting Force(kgf)

2500

Capacity (shot/ min)

4-10

Cooling Pattern

Water-cooling

Gas source (outer)

Air (m3/ min)

≥3

Pressure (MPa)

0.8

Vacuum Pump(Outer)

Busch R5 0100

Power

3 Phase 4 Line 380V50Hz

Heater (kw)

36

General Power (kw)

42

Dimension (L×W×H) (mm)

6225×1650×2450

Machine Weight (kg)

5000


Specification :
PLCTaiwan Delta
Touch Screen Monitor ( 10.4″inch /Color )Taiwan Delta
Feeding Servo Motor(3.0kw)Taiwan Delta
Stacking Servo Motor (1.5kw)Taiwan Delta
Heater (72PCS ) HeaterGERMAN
Solid State Relay (72 PCS )CHINA
ContactorGermany  Siemens
Thermo RelayGermany  Siemens
RelayJAPAN Omron
Vacuum PumpBusch R5 0040
PneumaticJAPAN SMC
CylinderCHINA
Tasks that are too heavy or too delicate for human muscles to do can be done easily by this product. Its accessories such as the heater, contractor, and relay, are all imported from Germany, ensuring the high reliability and long service life of the product. This product can effectively reduce monotony. It is good at creating a healthy environment, reducing boredom and monotony for people. Its accessories such as the heater, contractor, and relay, are all imported from Germany, ensuring the high reliability and long service life of the product.
