PLC Screentouch Control Plastic Processing Machine High Speed Vacuum Forming Machine Plastic Tray Making Machine Automatic Thermoforming Machine Blister Machine
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
The most popular plastic tray forming machine is a multi-head extruder, which is used for extruding slats for upper and lower panels, I-shaped connecting plates, compound wings, and other components of plastic pallets. This type of molded pallet has a number of advantages over woody pallets, including its lightweight, durability, and portability. There are various types of these machines, including a manual and an automatic one.
Vacuum-formed trays are the most common types of plastic trays. The cost is low and the process can run even very thin material. Injection molding, two pairs of molds are required, and vacuum forming requires large-scale machinery. This machine is now a specialty piece for domestic blow molding manufacturers. It has a high speed of production and specializes in high-strength blow-molded ware. Twin-sheet trays are often hollow, reinforced, and have two surfaces.
The vacuum-formed plastic tray is a low-cost product. The vacuum-formed trays are generally more expensive than other plastic trays, but this type of plastic is much easier to form and has the highest price-performance ratio. This type of tray is also suitable for general plastic processing plants. They can produce one-off and multi-colored plastic pallets. The two-sided trays are available in different shapes. The advantages of vacuum-forming include its fast forming speed, high strength, and versatility.
Basic Info.
Model NO.
XC46-71/122-BWP
Certification
ISO9001:2008, CE
Trademark
MengXing
Transport Package
as Standard Exporting Package
Origin
China
HS Code
84774090

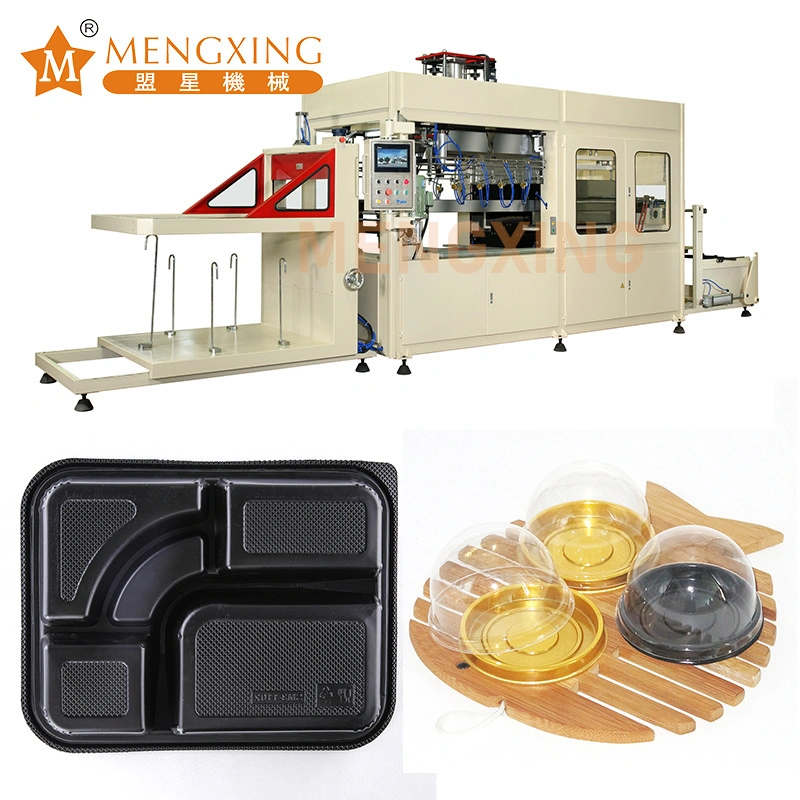

PLC Screentouch Control Plastic Processing Machine High Speed Vacuum Forming Machine Platic Tray Making Machine Automatic Thermoforming Machine Blister Machine
![PLC Screentouch Control Plastic Processing Machine High Speed Vacuum Forming Machine Plastic Tray Making Machine Automatic Thermoforming Machine Blister Machine]()
![PLC Screentouch Control Plastic Processing Machine High Speed Vacuum Forming Machine Plastic Tray Making Machine Automatic Thermoforming Machine Blister Machine]()
Useage:
The machine is suitable for making all size packing containers ,in open-type with thin-wall ,by using roll-sheet , under high-speed vacuum suction-forming processing .The products out of this machine can be used for the package of foods .native-products,tourist-goods,textile,medical, toy,cosmetic,electrical elements and daily used hard-ware ,etc .
Sheet fit to the machine
Starch-deposit sheets ,light-deposit sheet ,environment sheet APET ,PETG .Color sheets :PVC,HIPS,PET,PS,PP, EPS, etc.Fiber-coating-sheet.
Structure features
1.The machine combine with mechanical ,pneumatic and electrical integration fully computer control .Touch Screen easy operation.
2.Production Accounting ,can set automatic stop or advance alarm function ;Date Memorization function can store 230 data and param .
3.Inverter Feeding Driving ,length stepless adjust ,Feeding accurate,stable and high speed.(Max Feeding Speed 1000mm /per second)
4.Temperature Control system , fully computer intellectual temperature control , short heating time ( only 3 min from 0-400 degree ) ; stable ( not effect by outside voltage and temperature fluctuate is less than 1 degree) ; lower power consumption 15% , longer life of far infrared ray ceramic heater
5.Heater has deflection over structure ,which could close whole row of the porcelain heaters when the width of sheet is≤580mm.It can reduce power consumption 16%.
6.Heating Temperature control , individual heating control , Touch Screen input , mini-adjustment precision and heating temperature uniformity .
7.Aadvance feeding with the heating time automatic memory function ,machine could start production from the first feeding .
8.Two-step vacuum ,Two time of up-mould ,Mould Shaking Function ,Mould delay .
9.Up/down Mould electric stroke adjust ,easy to adjust under the mould matched situation .It could improve the accurate of moulding and quality of finished production .
10.Back acting plate position motor adjust .
11.Up/down mould match into cushion ,avoid crushion and improve the match speed .
12.Up/down Guiding Leader with self-lubrication bearing couple .stable production and durable structure ,it could assure the high quality of finished products.
13.The width of feeding chain synchronizate and separate motor adjust .
14.Heaters with moving-out structure ,could move out under the malfunction situation ,it could save the sheet materials .
15.Cylinder Sheet Loading structure ,easy for workwoman operation .
16.Up / Lower mold stroke double adjustment , upper mold electromotion adjust under mold clamed situation )
17.Cutting unit with double clamping cutting function ,could produce Male/Female and various different of products slide cutting .
18.Cutting structure adopts special convert structure ,can optimize the working space .The separate stacking car easy finished products stacked .Movement Guide Pole easy stack .
Technical Components
Technical Parameter
VI,Sample Pictures
![PLC Screentouch Control Plastic Processing Machine High Speed Vacuum Forming Machine Plastic Tray Making Machine Automatic Thermoforming Machine Blister Machine]()
VII,Certifications
![PLC Screentouch Control Plastic Processing Machine High Speed Vacuum Forming Machine Plastic Tray Making Machine Automatic Thermoforming Machine Blister Machine]()
VIII,Workshop Pictures
![PLC Screentouch Control Plastic Processing Machine High Speed Vacuum Forming Machine Plastic Tray Making Machine Automatic Thermoforming Machine Blister Machine]()
IX,Package
![PLC Screentouch Control Plastic Processing Machine High Speed Vacuum Forming Machine Plastic Tray Making Machine Automatic Thermoforming Machine Blister Machine]()
X,Exhibition
![PLC Screentouch Control Plastic Processing Machine High Speed Vacuum Forming Machine Plastic Tray Making Machine Automatic Thermoforming Machine Blister Machine]()
Useage:
The machine is suitable for making all size packing containers ,in open-type with thin-wall ,by using roll-sheet , under high-speed vacuum suction-forming processing .The products out of this machine can be used for the package of foods .native-products,tourist-goods,textile,medical, toy,cosmetic,electrical elements and daily used hard-ware ,etc .
Sheet fit to the machine
Starch-deposit sheets ,light-deposit sheet ,environment sheet APET ,PETG .Color sheets :PVC,HIPS,PET,PS,PP, EPS, etc.Fiber-coating-sheet.
Structure features
1.The machine combine with mechanical ,pneumatic and electrical integration fully computer control .Touch Screen easy operation.
2.Production Accounting ,can set automatic stop or advance alarm function ;Date Memorization function can store 230 data and param .
3.Inverter Feeding Driving ,length stepless adjust ,Feeding accurate,stable and high speed.(Max Feeding Speed 1000mm /per second)
4.Temperature Control system , fully computer intellectual temperature control , short heating time ( only 3 min from 0-400 degree ) ; stable ( not effect by outside voltage and temperature fluctuate is less than 1 degree) ; lower power consumption 15% , longer life of far infrared ray ceramic heater
5.Heater has deflection over structure ,which could close whole row of the porcelain heaters when the width of sheet is≤580mm.It can reduce power consumption 16%.
6.Heating Temperature control , individual heating control , Touch Screen input , mini-adjustment precision and heating temperature uniformity .
7.Aadvance feeding with the heating time automatic memory function ,machine could start production from the first feeding .
8.Two-step vacuum ,Two time of up-mould ,Mould Shaking Function ,Mould delay .
9.Up/down Mould electric stroke adjust ,easy to adjust under the mould matched situation .It could improve the accurate of moulding and quality of finished production .
10.Back acting plate position motor adjust .
11.Up/down mould match into cushion ,avoid crushion and improve the match speed .
12.Up/down Guiding Leader with self-lubrication bearing couple .stable production and durable structure ,it could assure the high quality of finished products.
13.The width of feeding chain synchronizate and separate motor adjust .
14.Heaters with moving-out structure ,could move out under the malfunction situation ,it could save the sheet materials .
15.Cylinder Sheet Loading structure ,easy for workwoman operation .
16.Up / Lower mold stroke double adjustment , upper mold electromotion adjust under mold clamed situation )
17.Cutting unit with double clamping cutting function ,could produce Male/Female and various different of products slide cutting .
18.Cutting structure adopts special convert structure ,can optimize the working space .The separate stacking car easy finished products stacked .Movement Guide Pole easy stack .
Technical Components
| Touch Screen Monitor( 10.4 " inch /Color ) | Taiwan Delta |
| PLC | Taiwan Delta |
| Inverter 3.7Kw | Taiwan Delta |
| Encoder 1024 | Taiwan Delta |
| Vacuum Pump | Busch 0100 |
| Cylinder | China Zhicheng |
| Pneumatic | Japan SMC |
| Adjust Sprayer | Meiji Japan |
| Fan Blower (0.55Kw) | Manda |
| Contactor | Germany,Siemens |
| Thermo relay | Germany,Siemens |
| Middle relay | Japan Omron |
| Impulse Solid State Relay | Joint Venture |
| Mold Tray | 430-680mm adjustable water cooling base |
| Heater | 120 Pcs Far Infrared Ray Heaters(Germany) |
| Upper/Down Heater 120 Zone ( 1 control 1 )Section Adjust , Digital input | |
Technical Parameter
| Model No. | XC46-71/122A-CWP | |
| Suitable Sheet Width(mm) | 460-710 | |
| Thickness(mm) | 0.1-2.0 | |
| Max Roll Sheet (mm) | 600 | |
| Up Mould Stroke (mm) | 500 | |
| Down Mould Stroke(mm) | 350 | |
| Max Forming Area(mm2) | 680×1200 | |
| Max Forming Height Protruding(mm) | 200 | |
| Max Forming Height Concave(mm) | 150 | |
| Capacity (Cycle/min) | 4-12 | |
| Cooling Outlet | Outlet | 4 PCS |
| Spray | 10 PCS | |
| Air Source | Air Vol. (m3/min) | ≥2 |
| Pressure(MPa) | 0.8 | |
| Water Consumption | 4-5 Cube/Hr | |
| Vacuum Pump ( Outlay ) | Busch R5 0100 | |
| Power Supply | 380V/ 220V 50Hz 3Phase 4 line | |
| Heater Power(Kw) | 54 | |
| General Power Max(Kw) | 62.52 | |
| Dimension(L×W×H)(mm) | 8070×1750×2525 | |
| Weight(kg) | 4900 | |
