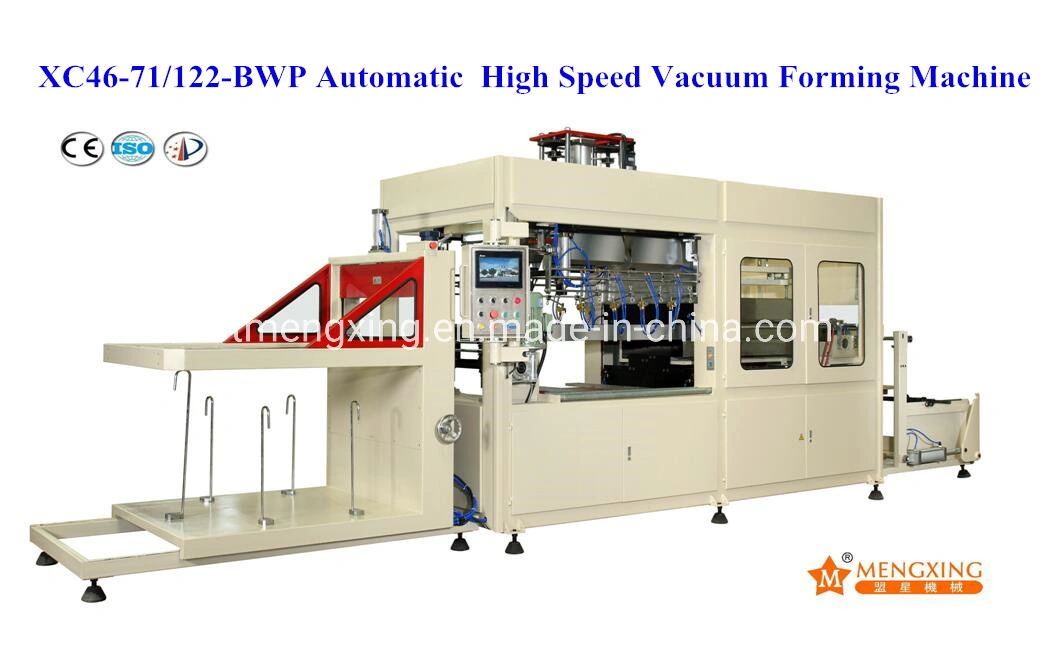

XC46-71/122-BWP Automatic High-speed Vacuum Forming Machine

Plastic Forming Machine (Mengxing)
This machine is mainly adapted to a variety of plastic reel sheet vacuum forming various open thin-walled containers for food, souvenirs, travel goods, textiles, decorations, cosmetics, medical supplies, Western medicine, children's toys, electrical and electronic components, hardware and other goods producing all kinds of packaging products.
II,Available sheet
1. Starch degradation sheet
2. Optical degradation sheet
3. Green sheet: APET, PETG
4. Various colors sheet: PVC, HIPS, PET, PS, PP, EPS, etc.
 01. mechanical, pneumatic, electrical integration. Each action program controlled by the PLC. Touch-screen operation, simple and convenient.
02. Frequency sheet feeding, stepless adjustment of the length, accurate and stable speed. (Max.Speed:1000mm/s)
03. Electric furnace temperature control system is fully computerized intelligent automatic compensation control, partitioning a controlled man-machine interface of a digital input, with high precision fine-tuning, temperature uniformity, fast heating (from 0-400 degrees 3 minutes), stable ( influence from external voltage, temperature fluctuations of not more than 1 degree), low energy consumption (15% saving), hearth advantages of long life.
04.Double electric oven.
05. Electric furnace with a bias structure, when the sheet width of less than 580mm, closed electric furnace side of the row of brick fever can reduce energy consumption by 16%.
06. Early feeding with the heating time automatic memory function, since the first version of the machine can enter the normal working condition.
07. Vacuum in two steps, forming mold adjusted twice, shock release, delay vacuum.
08. Up and down mold stroke can be adjusted in two-directions.The closing method of up mold adopts electric adjustment.Height of up&down mold can be adjusted when closing mold,convenient and fast.
09.Electric adjust the position of the rear upper flashboard.
10. The down mold clamping direction readily into the buffer, to improve the speed of mold clamping, to avoid shock.
11.The guide sleeve of up&down mold plates adopt insert solid lubrication bearing, which makes them move smoothly and accurately, and is helpful to improve the products quality.

 12. With electric furnace automatic removal device, in the middle of production,it doesn't need to disconnect the sheet.It can stop or start up at any time, which do not waste sheet.
13. Mechanical reel device, reduce labor intensity.
14 Movement guide column, so that products stack neatly.
15. 10.4-inch color touch screen, optimized operating environment.
16. Front &rear upper flashboards are made of aluminum alloy material, anti-rust and improve product quality.
IV,Technical parameters
ParameterXC46-71/122-BWP(mode No.)
Available sheet width (mm) 460-710
Available sheet thickness (mm) 0.1-1.2
Max.dia.of sheet roll (mm)600
Up mold stroke (mm)  400
Down mould stroke (mm)  300
Max. forming area (mm2) 680 × 1200
Max. forming height (mm) 200
Max. forming depth (mm) 150
Capacity (Cycle / min)  4-10
  Product Shaping&CoolingAir vent qty.4 pcs
Spray nozzle qty.8 pcs
  Gas Source
Air supply(m3/min)≥ 2
Water consumption4-5 Cube / Hour
Vacuum pump (Outlay)  Busch R5 0100
Power supply3-phase 4-wire
380V/220V 50Hz
Heating power(Kw) 30
Feeding motor power (Kw) 2.2
Max.power of whole machine(Kw)37
Dimensions (L × W × H) (mm) 8070 × 1656 × 2425
Total weight of whole machine (Kgs) 4600
V,Technical configuration
Programmable logic controller (PLC)  Taiwan Delta
10.4 inches color touch screen  Taiwan Delta
Drive inverter  Taiwan Delta
Feeding motor (3Kw) China
Encoder Japan
Heater (59pcs)China
Heater with sensor  (1pc)Germany
Solid-state regulator  China
AC contactor  Germany Siemens
Thermal relay   Germany Siemens
Intermediate relay   Germany Weidmuller
Vacuum pump  Busch R5 0100
Pneumatic components   Korea Sanwo&Japan SMC
Cylinder   China
Air sprayer  (8pcs)Meiji
Fan (4 × 0.37 kw) Manda

VI,Sample Pictures
Plastic Forming Machine (Mengxing)

Plastic Forming Machine (Mengxing)

VIII,Workshop Pictures
Plastic Forming Machine (Mengxing)

Plastic Forming Machine (Mengxing)

Plastic Forming Machine (Mengxing)
Many customers are impressed by the advanced standing of Mengxing Vacuum Forming Machine on vacuum forming machine. With an automatic lubrication system, it, therefore, has a smooth operation. This product is believed to have the extraordinary potential. With an automatic lubrication system, it, therefore, has a smooth operation.
