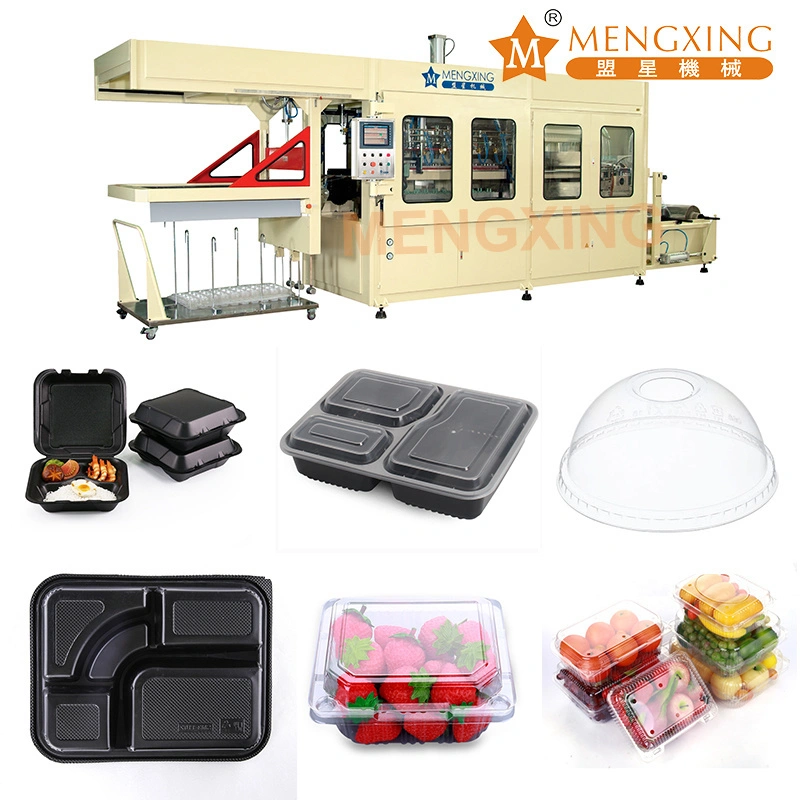

Auto Plastic Forming Machine PP PET PS Tray Making Machine Lids Blister Forming Machine
Useage:
The machine is suitable for making all size packing containers ,in open-type with thin-wall ,by using roll-sheet , under high-speed vacuum suction-forming processing .The products out of this machine can be used for the package of foods .native-products,tourist-goods,textile,medical, toy,cosmetic,electrical elements and daily used hard-ware ,etc .
Sheet fit to the machine
Starch-deposit sheets ,light-deposit sheet ,environment sheet APET ,PETG .Color sheets :PVC,HIPS,PET,PS,PP, EPS, etc.Fiber-coating-sheet.
Structure features
1.The machine combine with mechanical ,pneumatic and electrical integration fully computer control .Touch Screen easy operation.
2.Production Accounting ,can set automatic stop or advance alarm function ;Date Memorization function can store 230 data and param .
3.Inverter Feeding Driving ,length stepless adjust ,Feeding accurate,stable and high speed.(Max Feeding Speed 1000mm /per second)
4.Temperature Control system , fully computer intellectual temperature control , short heating time ( only 3 min from 0-400 degree ) ; stable ( not effect by outside voltage and temperature fluctuate is less than 1 degree) ; lower power consumption 15% , longer life of far infrared ray ceramic heater
5.Heater has deflection over structure ,which could close whole row of the porcelain heaters when the width of sheet is≤580mm.It can reduce power consumption 16%.
6.Heating Temperature control , individual heating control , Touch Screen input , mini-adjustment precision and heating temperature uniformity .
7.Aadvance feeding with the heating time automatic memory function ,machine could start production from the first feeding .
8.Two-step vacuum ,Two time of up-mould ,Mould Shaking Function ,Mould delay .
9.Up/down Mould electric stroke adjust ,easy to adjust under the mould matched situation .It could improve the accurate of moulding and quality of finished production .
10.Back acting plate position motor adjust .
11.Up/down mould match into cushion ,avoid crushion and improve the match speed .
12.Up/down Guiding Leader with self-lubrication bearing couple .stable production and durable structure ,it could assure the high quality of finished products.
13.The width of feeding chain synchronizate and separate motor adjust .
14.Heaters with moving-out structure ,could move out under the malfunction situation ,it could save the sheet materials .
15.Cylinder Sheet Loading structure ,easy for workwoman operation .
16.Up / Lower mold stroke double adjustment , upper mold electromotion adjust under mold clamed situation )
17.Cutting unit with double clamping cutting function ,could produce Male/Female and various different of products slide cutting .
18.Cutting structure adopts special convert structure ,can optimize the working space .The separate stacking car easy finished products stacked .Movement Guide Pole easy stack .
Technical Components| Touch Screen Monitor( 10.4 " inch /Color ) | Taiwan Delta |
| PLC | Taiwan Delta |
| Inverter 3.7Kw | Taiwan Delta |
| Encoder 1024 | Taiwan Delta |
| Vacuum Pump | Busch 0100 |
| Cylinder | China Zhicheng |
| Pneumatic | Japan SMC |
| Adjust Sprayer | Meiji Japan |
| Fan Blower (0.55Kw) | Manda |
| Contactor | Germany,Siemens |
| Thermo relay | Germany,Siemens |
| Middle relay | Japan Omron |
| Impulse Solid State Relay | Joint Venture |
| Mold Tray | 430-680mm adjustable water cooling base |
| Heater | 120 Pcs Far Infrared Ray Heaters(Germany) |
| Upper/Down Heater 120 Zone ( 1 control 1 )Section Adjust , Digital input |
| Model No. | XC46-71/122A-CWP |
| Suitable Sheet Width(mm) | 460-710 |
| Thickness(mm) | 0.1-2.0 |
| Max Roll Sheet (mm) | 600 |
| Up Mould Stroke (mm) | 500 |
| Down Mould Stroke(mm) | 350 |
| Max Forming Area(mm2) | 680×1200 |
| Max Forming Height Protruding(mm) | 200 |
| Max Forming Height Concave(mm) | 150 |
| Capacity (Cycle/min) | 4-12 |
| Cooling Outlet | Outlet | 4 PCS |
| Spray | 10 PCS |
| Air Source | Air Vol. (m3/min) | ≥2 |
| Pressure(MPa) | 0.8 |
| Water Consumption | 4-5 Cube/Hr |
| Vacuum Pump ( Outlay ) | Busch R5 0100 |
| Power Supply | 380V/ 220V 50Hz 3Phase 4 line |
| Heater Power(Kw) | 54 |
| General Power Max(Kw) | 62.52 |
| Dimension(L×W×H)(mm) | 8070×1750×2525 |
| Weight(kg) | 4900 |
