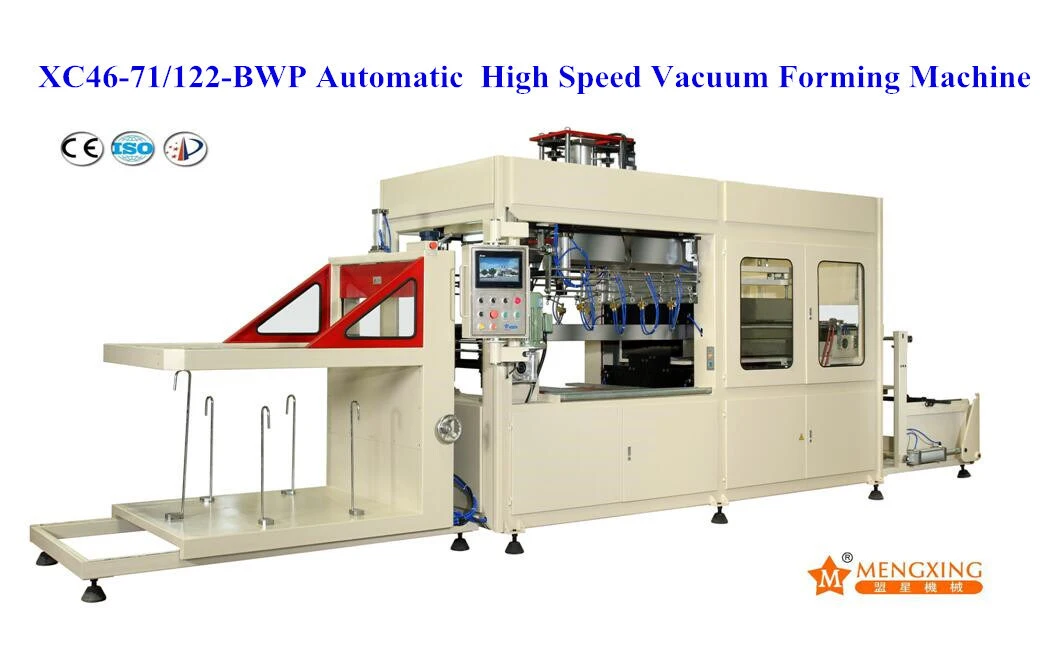

High Speed Vacuum Forming Machine

这里可以自定义设置
High Speed Vacuum Forming Machine
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障

Basic Info.

Model NO.
XC46-71/122-BWP
HS Code
84774090
Useage:
The machine is suitable for making all size packing containers ,in open-type with thin-wall ,by using roll-sheet , under high-speed vacuum suction-forming processing .The products out of this machine can be used for the package of foods .native-products,tourist-goods,textile,medical, toy,cosmetic,electrical elements and daily used hard-ware ,etc .
Sheet fit to the machine
Starch-deposit sheets ,light-deposit sheet ,environment sheet APET ,PETG .Color sheets :PVC,HIPS,PET,PS,PP, EPS, etc.Fiber-coating-sheet.

Structure features
1.The machine combine with mechanical ,pneumatic and electrical integration fully computer control .Touch Screen easy operation.
2
.Inverter Feeding Driving ,length stepless adjust ,Feeding accurate,stable and high speed.(Max Feeding Speed 1000mm /per second)
3.Temperature Control system , fully computer intellectual temperature control , short heating time ( only 3 min from 0-400 degree ) ; stable ( not effect by outside voltage and temperature fluctuate is less than 1 degree)  ; lower power consumption 15% , longer life of far infrared ray ceramic heater.
4.Up and Down double oven.                                                                              5
.Heater has deflection over structure ,which could close whole row of the porcelain heaters when the width of sheet is≤580mm.It can reduce power consumption 16%.
6
.Heating Temperature control , individual heating control , Touch Screen input , mini-adjustment precision and heating temperature uniformity .
7
.Aadvance feeding with the heating time automatic memory function ,machine could start production from the first feeding .
8
.Two-step vacuum ,Two time of up-mould ,Mould Shaking Function ,Mould delay .
9
.Up/down Mould electric stroke adjust ,easy to adjust under the mould matched situation .It could improve the accurate of moulding and quality of finished production .
10
.Back acting plate position motor adjust .
11
.Up/down mould match into cushion ,avoid crushion and improve the match speed .
12
.Up/down Guiding Leader with self-lubrication bearing couple .stable production and durable structure ,it could assure the high quality of finished products.
13
.Heaters with moving-out structure ,could move out under the malfunction situation ,it could save the sheet materials .
14
.Cylinder Sheet Loading structure ,easy for workwoman operation .
15. Cutting unit with double clamping cutting function ,could produce Male/Female and various different of products slide cutting .
16
.Movement Guide Pole, easily stack .

Technical Components
Touch Screen Monitor( 10.4 " inch /Color )Taiwan Delta
PLCTaiwan Delta
Inverter 3.7KwTaiwan Delta
Encoder Japan
Vacuum PumpBusch 0100  Germany
CylinderChina
PneumaticJapan SMC & Korea Sanwo
Adjust SprayerMeiji Japan
Fan Blower (4*0.37Kw)China Manda
ContactorGermany,Siemens
Thermo relayGermany,Siemens
Middle relayJapan Omron
Impulse Solid State RelayJoint Venture
Mold Tray430-680mm adjustable water cooling base
Heater120 Pcs Far Infrared Ray Heaters Taiwan
Upper/Down Heater 120 Zone ( 1 control 1 )Section Adjust , Digital input
With its advanced control system, the product helps increase productivity. It finally decreases production time and increases output. Having gone through surface treatment, it is highly resistant to corrosion. This product plays a vital role in many industries. Not only does it relieve stress, but it also benefits people by reducing human capital costs. Having gone through surface treatment, it is highly resistant to corrosion.
