Basic Info.
Model NO.
XC46-71/122-BWP
Certification
ISO9001:2008, CE, QS
Transport Package
as Standard Exporting Package
Specification
8070*1750*2525mm

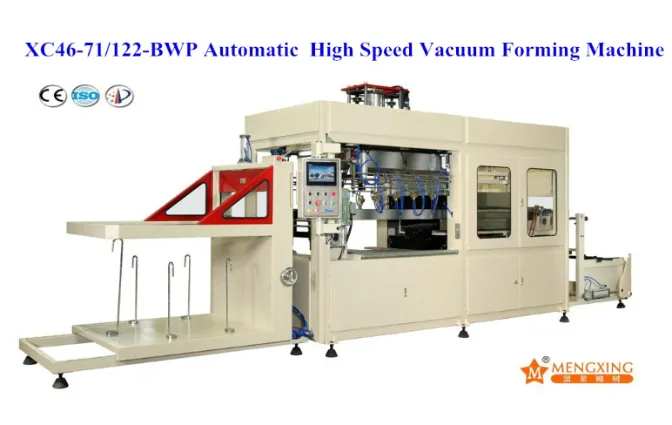

XC46-71/122-BWP Automatic High-speed Vacuum Forming Machine
I,UsageThis machine is mainly adapted to a variety of plastic reel sheet vacuum forming various open thin-walled containers for food, souvenirs, travel goods, textiles, decorations, cosmetics, medical supplies, in medicine, children toys, electrical and electronic components, hardware and other goods producing all kinds of packaging products. II,Available Sheet1. Starch degradation sheet2. Optical degradation sheet3. Green sheet: APET, PETG4. Various colors sheet: PVC, HIPS, PET, PS, PP, EPS, etc5. Flocking sheet III.Features1. Mechanical, pneumatic and electrical integration. Each action program controlled by the PLC. Touch-screen operation, simple and convenient.2. Production technology, can be set to automatically shut down or advance warning, with file memory function, can store up to 230 product information and parameters.3. Frequency sheet feeding, stepless adjustment of length, speed accuracy and stability. (Max.speed 1000mm /s)4. Temperature control system adopts full computer intelligent automatic compensation control, fast heating (from 0-400 degrees takes 3 minutes), stable (without external voltage impact, temperature fluctuations of not more than 1 degree), low energy consumption (saving about 15%) , heat tiles long life and other advantages.7. Electric furnace with a bias structure, when the sheet width of less than 580mm, closed electric furnace heat tiles while the entire row can reduce energy consumption by 16%.8. Furnaces partition a man-machine interface control a digital input, high precision fine-tuning, temperature uniformity, etc..9. Early feeding with the heating time automatic memory function, since the first edition of the machine can enter the normal working condition.10. Two steps vacuum,forming mold adjusting twice,shock release; delay vacuum.11. Products spray silicone devices.12. Two directions adjustable up and down stroke, in which the upper and lower mold clamping direction of the electric adjustment, can adjust the state in the mold, the lower die height position, and convenient.13. Electric gate position after adjustment.14. Upper and lower mold clamping direction readily into the buffer, to improve the speed of the mold, to avoid shock.15. Upper and lower die sets bushing using mosaic solid lubricating bearings, so that the upper and lower mold under smooth and accurate movement on stage, will help improve the quality of products.16. Sheet feeding caterpillar width can be synchronous or discrete electric adjustment.17. Automatic electric furnace removed device is disconnected in the middle of the sheet can be produced at any time without stopping and starting, do not waste sheets.18. Mechanical reel device, reduce labor intensity.19. Upper and lower stroke two-way adjustable, the direction in which the upper mold clamping electric adjustment (lower clamping state also available).20. Double action cutting mechanism plywood, electric slicing methods to meet overcast, sub-version of the male die cutting products of any shape.21. Cutting machine uses a unique inverted structure can greatly optimize work space. Independent convenience products products stacked car transported to the next process. Movement Guide column, so that products stack neatly.IV,Technical ParametersParameter | XC46-71/122A-CWP(mode No.) |
Available sheet width (mm) | 460-710 |
Available sheet thickness (mm) | 0.1-2.0 |
Max.dia.of sheet roll (mm) | 600 |
Up mold stroke (mm) | 500 |
Down mold stroke (mm) | 350 |
Max. forming area (mm2) | 680 × 1200 |
Max. forming height (mm) | 200 (male mold) |
Max. forming depth (mm) | 150 (female mold) |
Capacity(times/min) | 4-10 |
Products shaping &cooling | Air vent qty. | 4 pcs |
Spay nozzle qty. | 11 pcs |
Gas source | Air supply(m3/min) | ≥ 2 |
Pressure(Mpa) | 0.8 |
Water consumption | 4-5 Cube / Hr |
Vacuum pump (external) | Busch R5 0100 |
Power supply | three-phase four-wire 380V / 220V 50Hz |
Heating power (Kw) | 54 |
Max. power of whole machine (Kw) | 62.52 |
Dimensions (L × W × H) (mm) | 8070 × 1750 × 2525 |
Weight of whole machine(Kgs) | 4900 |
V,Technical configurationHMI 10.4 inches Color | Taiwan Delta |
PLC 168 | Taiwan Delta |
Inverter 3.7Kw | Taiwan Delta |
encoder 1024 | Taiwan Delta |
pumps | Busch 0100 |
Cylinders (Up&down molds adopt rough- rod cylinder) | Zhicheng |
Pneumatic component (waterproof type) | Japan SMC |
Adjustable spray gun | Meiji |
Fans (4sets,0.55Kw) | Manda |
AC contactor | Germany Siemens |
Thermal relay | Germany Siemens |
Relay | Omron |
Heating furnance with 120 pcs of far infrared ceramic heaters,up&down heating furnances, zoning one-one control. | Zoning Adjustment via HMI digital input, accurate and stable. |

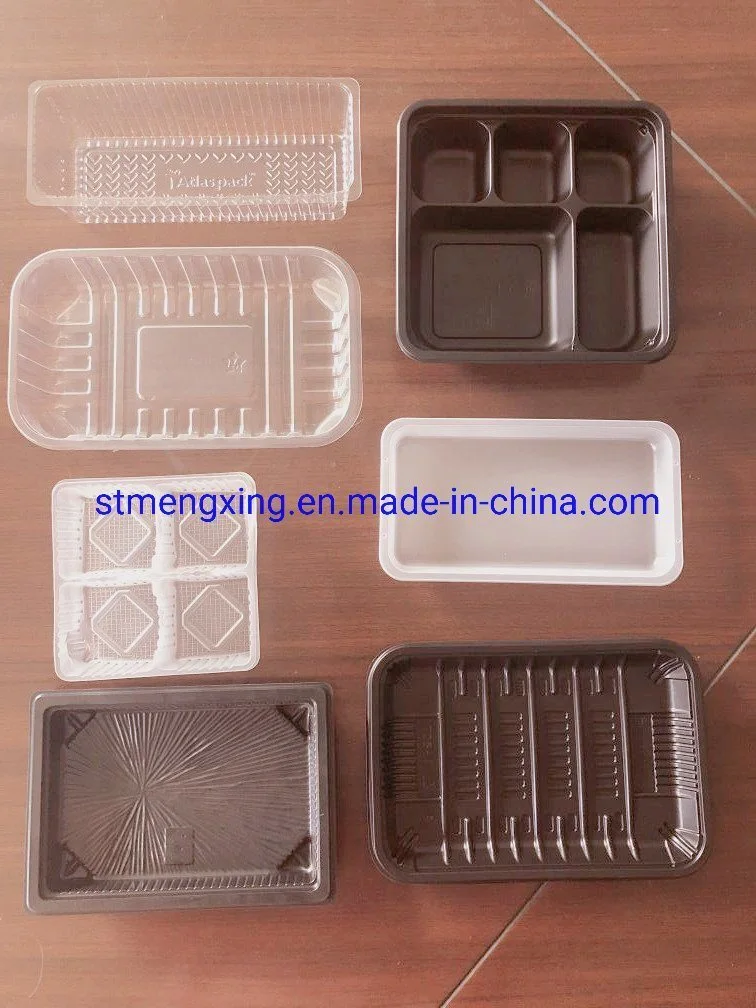

VI,Sample PicturesVII,Certifications
VIII,Workshop Pictures
IX,PackageX,Exhibition
