Basic Info.

Model NO.

vacuum forming machine

Certification

ISO9001:2008, CE

Trademark

Mengxing

Transport Package

as Standard Exporting Package

Specification

8070*1750*2525mm

Origin

China

HS Code

84774090

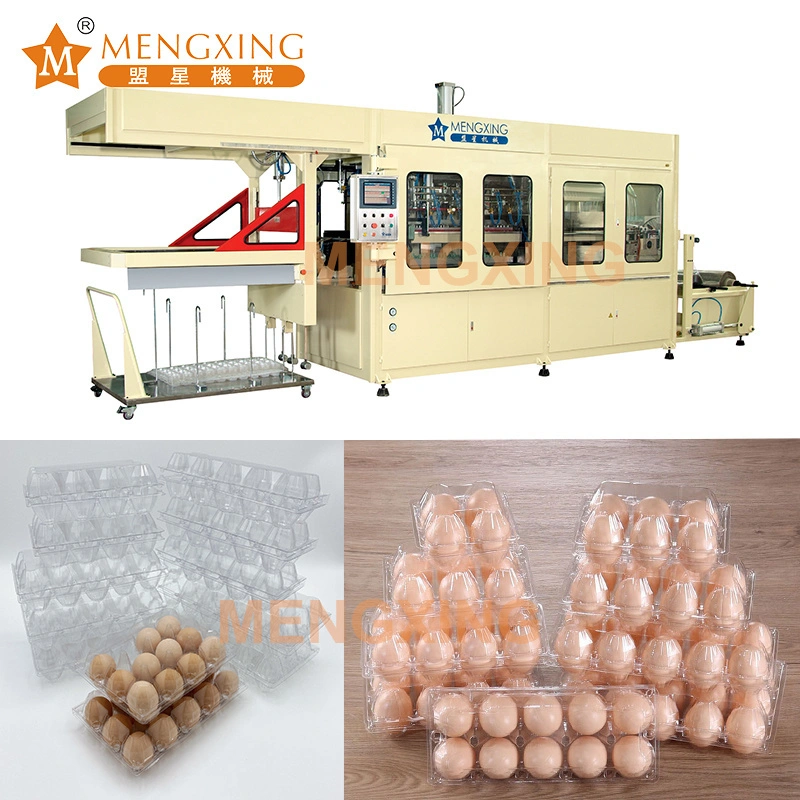

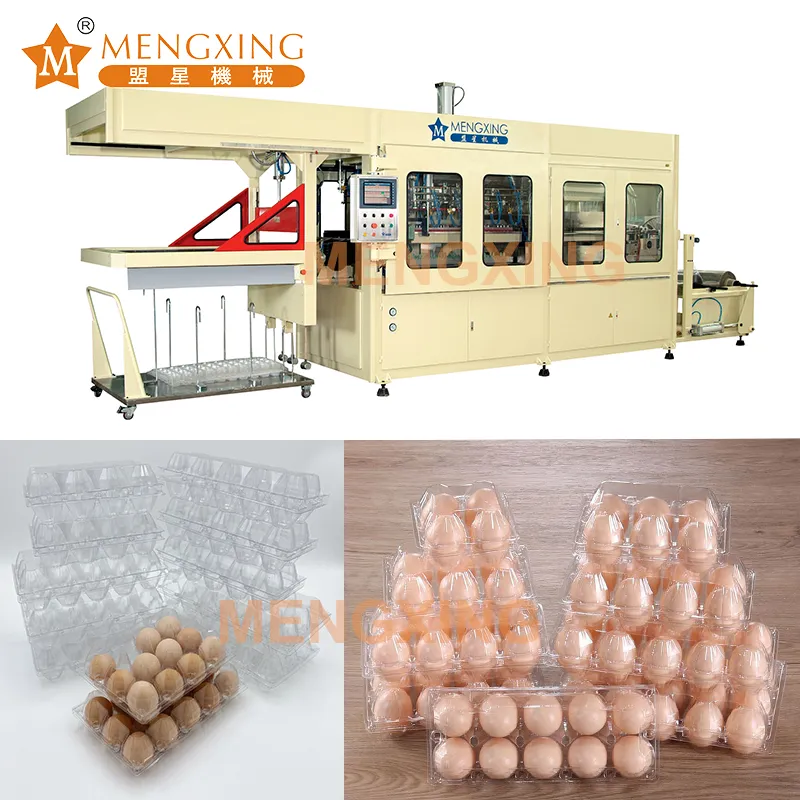

High Speed Plastic Package Machine Egg Tray Production Line Vacuum Forming Machine Plastic Tray Making Machine

Useage:
The machine is suitable for making all size packing containers ,in open-type with thin-wall ,by using roll-sheet , under high-speed vacuum suction-forming processing .The products out of this machine can be used for the package of foods .native-products,tourist-goods,textile,medical, toy,cosmetic,electrical elements and daily used hard-ware ,etc .
Sheet fit to the machine
Starch-deposit sheets ,light-deposit sheet ,environment sheet APET ,PETG .Color sheets :PVC,HIPS,PET,PS,PP, EPS, etc.Fiber-coating-sheet.
Structure features
1.The machine combine with mechanical ,pneumatic and electrical integration fully computer control .Touch Screen easy operation.
2.Production Accounting ,can set automatic stop or advance alarm function ;Date Memorization function can store 230 data and param .
3.Inverter Feeding Driving ,length stepless adjust ,Feeding accurate,stable and high speed.(Max Feeding Speed 1000mm /per second)
4.Temperature Control system , fully computer intellectual temperature control , short heating time ( only 3 min from 0-400 degree ) ; stable ( not effect by outside voltage and temperature fluctuate is less than 1 degree) ; lower power consumption 15% , longer life of far infrared ray ceramic heater
5.Heater has deflection over structure ,which could close whole row of the porcelain heaters when the width of sheet is≤580mm.It can reduce power consumption 16%.
6.Heating Temperature control , individual heating control , Touch Screen input , mini-adjustment precision and heating temperature uniformity .
7.Aadvance feeding with the heating time automatic memory function ,machine could start production from the first feeding .
8.Two-step vacuum ,Two time of up-mould ,Mould Shaking Function ,Mould delay .
9.Up/down Mould electric stroke adjust ,easy to adjust under the mould matched situation .It could improve the accurate of moulding and quality of finished production .
10.Back acting plate position motor adjust .
11.Up/down mould match into cushion ,avoid crushion and improve the match speed .
12.Up/down Guiding Leader with self-lubrication bearing couple .stable production and durable structure ,it could assure the high quality of finished products.
13.The width of feeding chain synchronizate and separate motor adjust .
14.Heaters with moving-out structure ,could move out under the malfunction situation ,it could save the sheet materials .
15.Cylinder Sheet Loading structure ,easy for workwoman operation .
16.Up / Lower mold stroke double adjustment , upper mold electromotion adjust under mold clamed situation )
17.Cutting unit with double clamping cutting function ,could produce Male/Female and various different of products slide cutting .
18.Cutting structure adopts special convert structure ,can optimize the working space .The separate stacking car easy finished products stacked .Movement Guide Pole easy stack .
Technical Components

Touch Screen Monitor( 10.4 " inch /Color )	Taiwan Delta
PLC	Taiwan Delta
Inverter 3.7Kw	Taiwan Delta
Encoder 1024	Taiwan Delta
Vacuum Pump	Busch 0100
Cylinder	China Zhicheng
Pneumatic	Japan SMC
Adjust Sprayer	Meiji Japan
Fan Blower (0.55Kw)	Manda
Contactor	Germany,Siemens
Thermo relay	Germany,Siemens
Middle relay	Japan Omron
Impulse Solid State Relay	Joint Venture
Mold Tray	430-680mm adjustable water cooling base
Heater	120 Pcs Far Infrared Ray Heaters(Germany)
Upper/Down Heater 120 Zone ( 1 control 1 )Section Adjust , Digital input

Technical Parameter

Model No.		XC46-71/122A-CWP
Suitable Sheet Width(mm)		460-710
Thickness(mm)		0.1-2.0
Max Roll Sheet (mm)		600
Up Mould Stroke (mm)		500
Down Mould Stroke(mm)		350
Max Forming Area(mm²)		680×1200
Max Forming Height Protruding(mm)		200
Max Forming Height Concave(mm)		150
Capacity (Cycle/min)		4-12
Cooling Outlet	Outlet	4 PCS
	Spray	10 PCS
Air Source	Air Vol. (m³/min)	≥2
	Pressure(MPa)	0.8
Water Consumption		4-5 Cube/Hr
Vacuum Pump ( Outlay )		Busch R5 0100
Power Supply		380V/ 220V 50Hz 3Phase 4 line
Heater Power(Kw)		54
General Power Max(Kw)		62.52
Dimension(L×W×H)(mm)		8070×1750×2525
Weight(kg)		4900

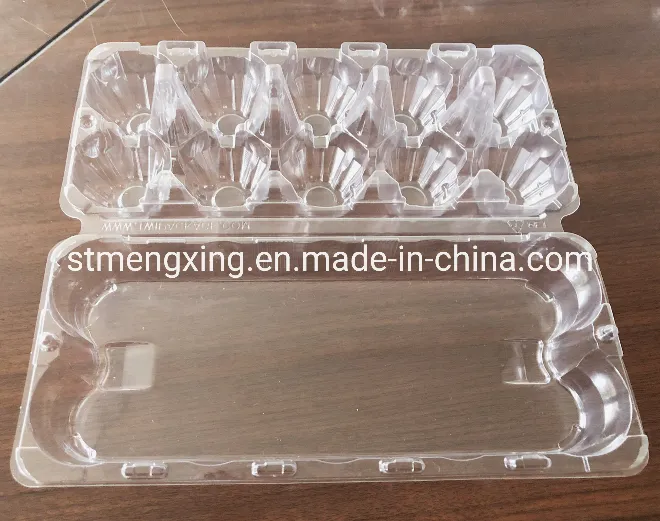

VI,Sample Pictures
High Speed Plastic Package Machine Egg Tray Production Line Vacuum Forming Machine Plastic Tray Making Machine

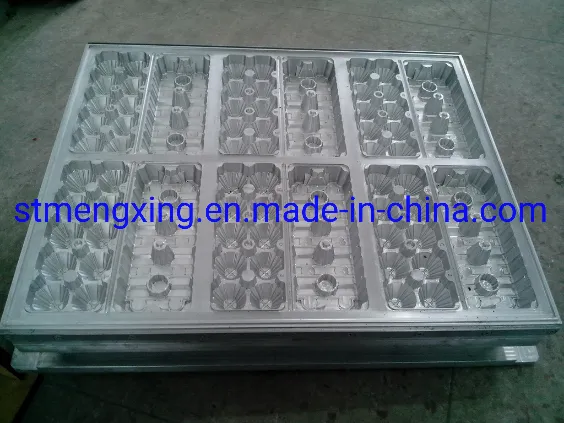

VII,Mold Picture

VIII,Certifications

IX,Workshop Pictures

X,Package
High Speed Plastic Package Machine Egg Tray Production Line Vacuum Forming Machine Plastic Tray Making Machine

XI,Exhibition

vacuum forming machine has helped Mengxing Vacuum Forming Machine increase popularity and improve reputation. Its flashboards are made of aluminum alloy, ensuring it to be high-strength. This product is bound to help both make money and increase brand reputation. Its flashboards are made of aluminum alloy, ensuring it to be high-strength.
