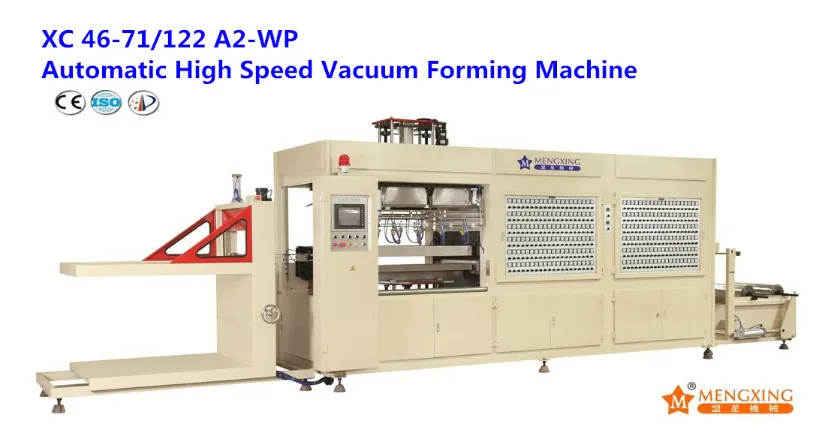

High Speed Cake Box Making Machine (XC46-71/122-BWP)


I,Usage
This machine is mainly adapted to a variety of plastic reel sheet vacuum forming various open thin-walled containers for food, souvenirs, travel goods, textiles, decorations, cosmetics, medical supplies, in medicine, children toys, electrical and electronic components, hardware and other goods producing all kinds of packaging products.

II,Available sheet
1. Starch degradation sheet
2. Optical degradation sheet
3. Green sheet: APET, PETG
4. Various colors sheet: PVC, HIPS, PET, PS, PP, EPS, etc.

III,Features
1. Mechanical, pneumatic and electrical integration. Each action program controlled by the PLC. Touch-screen operation, simple and convenient.
2. Frequency sheet feeding, stepless adjustment of length, speed accuracy and stability. (Max. Speed 1000mm /s)
3. Automatically compensates for temperature control system using intelligent control, fast heating (from 0-400 degrees takes 5 minutes), stable (without external voltage impact, temperature fluctuations of not more than 1 degree), low energy consumption (15% saving), fever long life and other advantages of brick.
4. Electric furnace with a bias structure, when the sheet width of less than 580mm, closed electric furnace heat tiles while the entire row can reduce energy consumption by 16%.
5. Furnaces partition using gear switch (divided into ten stalls), a control of a regulator, easy to adjust the temperature uniformity, easy to use, simple.
6. Early feeding with the heating time automatic memory function, since the first edition of the machine can enter the normal working condition.
7. Vacuum in two steps,forming mold adjusted twice,shock release, delay vacuum
8. Two directions adjustable up and down stroke, in which the mold clamping direction electric adjustment, can be adjusted in the mold on the state (and lower) mold height position, and convenient.
9. Electric gate position after adjustment.
10. Under the direction of the mold clamping readily into the buffer, to improve the speed of the mold, to avoid shock.
11. Upper and lower die sets bushing using mosaic solid lubricating bearings, so that the upper and lower mold under smooth and accurate movement on stage, will help improve the quality of products.
12. Automatic electric furnace removed device is disconnected in the middle of the sheet can be produced at any time without stopping and starting, do not waste sheets.
13. Mechanical reel device, reduce labor intensity.
14. Double action cutting mechanism plywood, electric slicing methods to meet overcast, sub-version of the male die cutting products of any shape.
15. Movement Guide column, so that products stack neatly.

IV,Technical Parameters
ParameterXC46-71/122A-WP(mode No.)
Available sheet width (mm)  460-710
Available sheet thickness (mm)   0.1-1.2
Max.dia.of sheet roll (mm)   600
Up mold stroke (mm)  400
Down mold stroke (mm)   300
Max. forming area (mm2)   680 × 1200
Max. forming height (mm)200(male mold)
Max. forming height (mm)  150  (female mold)
Capacity (times / min)  4-10
 Product Shaping&CoolingAir vent qty.4pcs
Spray nozzle qty.8pcs
Air supply (m3/min)   ≥ 2
Pressure (MPa) 0.8
Water consumption   4-5 Cube / Hour
Vacuum pump (external)   Busch R5 0100
Power  supply3-phase  4-wire
380V / 220V 50Hz
Heating power (Kw)54
Max. power of whole machine (Kw)  61.23
Dimensions (L × W × H)(mm)  8070 × 1656 × 2425
Weight of whole machine (Kgs)  4700


V,Technical configuration
HMI 5.7 inches color  Taiwan Delta
PLC 48  Taiwan Delta
 Inverter 2.2Kw   Taiwan Delta
 Encoder 1024  Taiwan Delta
 Vacuum pump  Busch
Cylinder (upper and lower molds adopt thick-rod cylinder)   Zhicheng
Pneumatic componentKorea Sanwo
Adjustable spray gun  Meiji
FanManda
AC contactor  Germany Siemens
Heating relay   Germany Siemens
Relay  Omron
Pulsed solid-state relay joint venture brand
Heating furnance 120 pcs of far infrared ceramic heaters,up&down heating furnances,  zoning one-one control(120zones)

VI,Sample Picture

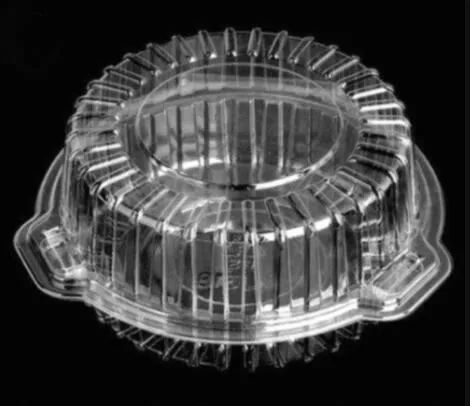

High Speed Cake Box Making Machine (XC46-71/122-BWP)  High Speed Cake Box Making Machine (XC46-71/122-BWP)

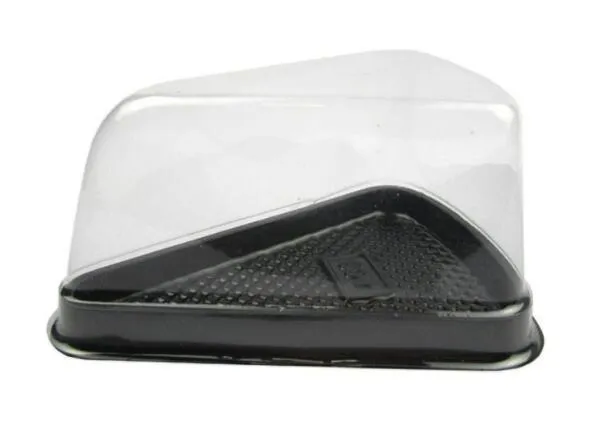

High Speed Cake Box Making Machine (XC46-71/122-BWP) High Speed Cake Box Making Machine (XC46-71/122-BWP)

VII,CertificationHigh Speed Cake Box Making Machine (XC46-71/122-BWP)


VIII,Workshop Pictures
High Speed Cake Box Making Machine (XC46-71/122-BWP)


IX,Package

High Speed Cake Box Making Machine (XC46-71/122-BWP)

X,Exhibition
High Speed Cake Box Making Machine (XC46-71/122-BWP)


It is created not only to fulfill the ambitions of customers but also to add value to their business. The movement guide column of the product ensures the items are stacked neatly. Shantou Mengxing Package Machinery Co.,Ltd. strictly controls the quality and makes the best service. The movement guide column of the product ensures the items are stacked neatly.
