EPS Tray Forming Machine

这里可以自定义设置
EPS Tray Forming Machine
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障

Basic Info.

Model NO.
XC46-71/122A-CWP
Certification
ISO9001:2008, CE, QS
Trademark
Mengxing
Transport Package
as Standard Exporting Package
Specification
8070*1750*2525mm
Origin
China
HS Code
84774090

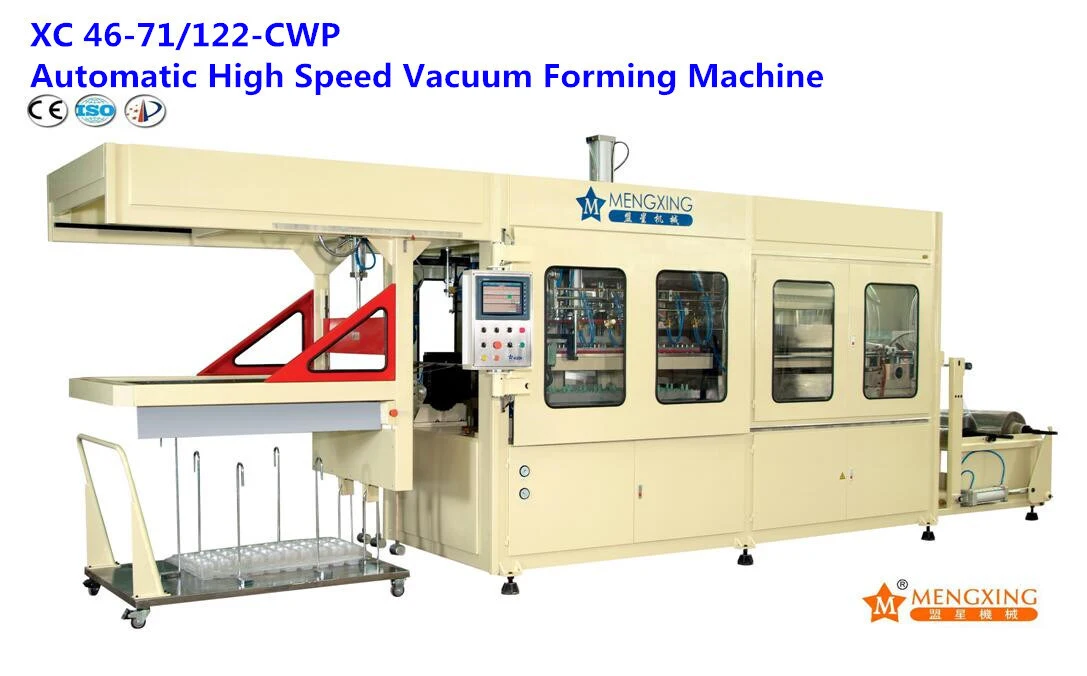

EPS Tray Forming Machine
I,Usage

This machine is mainly adapted to a variety of plastic reel sheet vacuum forming various open thin-walled containers for food, souvenirs, travel goods, textiles, decorations, cosmetics, medical supplies, in medicine, children toys, electrical and electronic components, hardware and other goods producing all kinds of packaging products.

II,Available Sheet
1. Starch degradation sheet
2. Optical degradation sheet
3. Green sheet: APET, PETG
4. Various colors sheet: PVC, HIPS, PET, PS, PP, EPS, etc
5. Flocking sheet

III.Features
1. Mechanical, pneumatic and electrical integration. Each action program controlled by the PLC. Touch-screen operation, simple and convenient.
2. Production technology, can be set to automatically shut down or advance warning, with file memory function, can store up to 230 product information and parameters.
3. Frequency sheet feeding, stepless adjustment of length, speed accuracy and stability. (Max.speed 1000mm /s)
4. Temperature control system adopts full computer intelligent automatic compensation control, fast heating (from 0-400 degrees takes 3 minutes), stable (without external voltage impact, temperature fluctuations of not more than 1 degree), low energy consumption (saving about 15%) , heat tiles long life and other advantages.
7. Electric furnace with a bias structure, when the sheet width of less than 580mm, closed electric furnace heat tiles while the entire row can reduce energy consumption by 16%.
8. Furnaces partition a man-machine interface control a digital input, high precision fine-tuning, temperature uniformity, etc..
9. Early feeding with the heating time automatic memory function, since the first edition of the machine can enter the normal working condition.
10. Two steps vacuum,forming mold adjusting twice,shock release; delay vacuum.
11. Products spray silicone devices.
12. Two directions adjustable up and down stroke, in which the upper and lower mold clamping direction of the electric adjustment, can adjust the state in the mold, the lower die height position, and convenient.
13. Electric gate position after adjustment.
14. Upper and lower mold clamping direction readily into the buffer, to improve the speed of the mold, to avoid shock.
15. Upper and lower die sets bushing using mosaic solid lubricating bearings, so that the upper and lower mold under smooth and accurate movement on stage, will help improve the quality of products.
16. Sheet feeding caterpillar width can be synchronous or discrete electric adjustment.
17. Automatic electric furnace removed device is disconnected in the middle of the sheet can be produced at any time without stopping and starting, do not waste sheets.
18. Mechanical reel device, reduce labor intensity.
19. Upper and lower stroke two-way adjustable, the direction in which the upper mold clamping electric adjustment (lower clamping state also available).
20. Double action cutting mechanism plywood, electric slicing methods to meet overcast, sub-version of the male die cutting products of any shape.
21. Cutting machine uses a unique inverted structure can greatly optimize work space. Independent convenience products products stacked car transported to the next process. Movement Guide column, so that products stack neatly.

IV,Technical Parameters
ParameterXC46-71/122A-CWP(mode No.)
Available sheet width (mm)   460-710
Available sheet thickness (mm)   0.1-2.0
Max.dia.of sheet roll (mm)   600
Up mold stroke (mm)  500
Down mold stroke (mm)  350
Max. forming area (mm2)   680 × 1200
Max. forming height (mm)   200  (male mold)
Max. forming depth (mm)   150   (female mold)
Capacity(times/min) 4-10
Products shaping &cooling    Air vent qty.4 pcs
Spay nozzle qty.11 pcs
Gas sourceAir supply(m3/min)≥ 2
Pressure(Mpa)0.8
Water consumption  4-5 Cube / Hr
Vacuum pump (external)  Busch R5 0100
Power supplythree-phase four-wire 380V / 220V 50Hz
Heating power (Kw)54
Max. power of whole machine (Kw)  62.52
Dimensions (L × W × H) (mm)   8070 × 1750 × 2525
Weight of whole machine(Kgs)  4900

V,Technical configuration
HMI 10.4 inches Color  Taiwan Delta
PLC 168   Taiwan Delta
Inverter 3.7Kw   Taiwan Delta
encoder 1024  Taiwan Delta
pumps  Busch 0100
Cylinders
 (Up&down molds adopt rough- rod cylinder)
Zhicheng
Pneumatic component (waterproof type)  Japan SMC
Adjustable spray gun  Meiji
Fans (4sets,0.55Kw)   Manda
AC contactor  Germany Siemens
Thermal relay   Germany Siemens
Relay   Omron
Heating furnance with 120 pcs of far infrared ceramic heaters,up&down heating furnances,  zoning one-one control.Zoning Adjustment via HMI digital input, accurate and stable.

IV,Sample Pictures

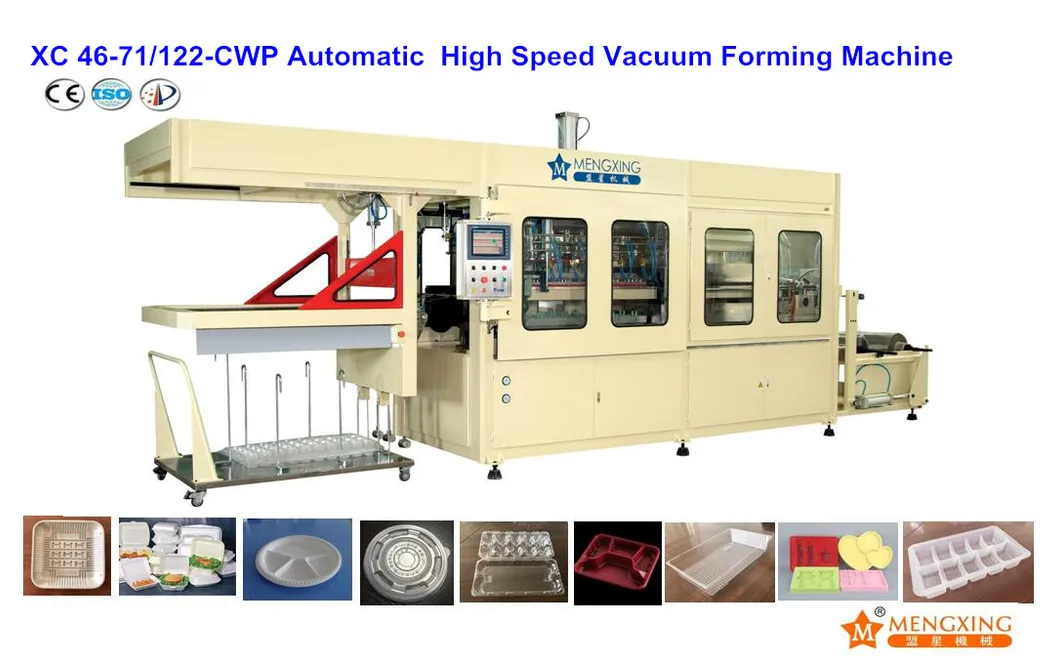

EPS Tray Forming Machine


VII,Certifications
EPS Tray Forming Machine

VIII,Workshop Pictures
EPS Tray Forming Machine


IX,Package

EPS Tray Forming Machine

X,Exhibition
EPS Tray Forming Machine


There will be a cut in the payment of labor prices because the use of this product can replace manual labor. The product is popular for its data memorization function. This product brings an increase in accuracy and repeatability. As it is programmed to perform a task over and over again, the accuracy and repeatability compared to an employee is far greater. The product is popular for its data memorization function.
