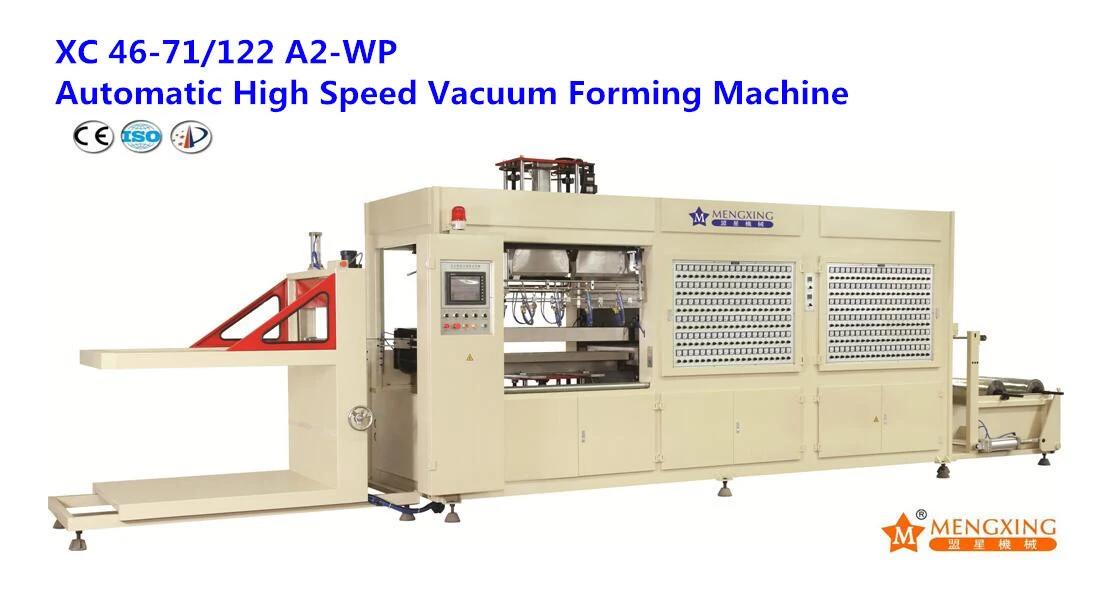

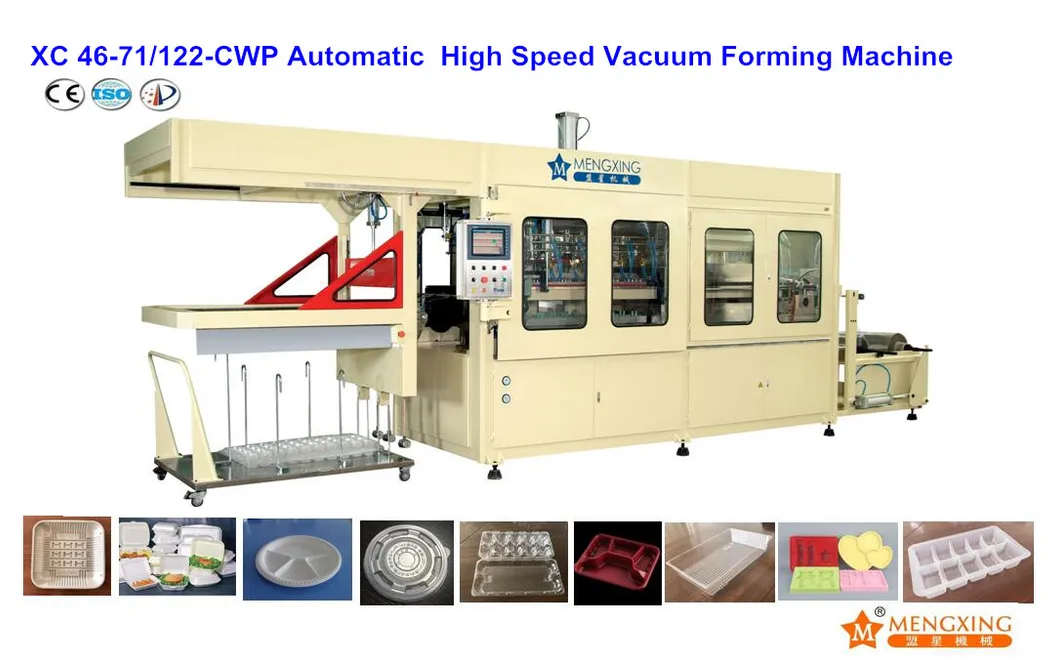

Automatic High-Speed Vacuum Forming Machine

I,Usage
This machine is mainly adapted to a variety of plastic reel sheet vacuum forming various open thin-walled containers for food, souvenirs, travel goods, textiles, decorations, cosmetics, medical supplies, in medicine, children toys, electrical and electronic components, hardware and other goods producing all kinds of packaging products.

II,Available sheet
1. Starch degradation sheet
2. Optical degradation sheet
3. Green sheet: APET, PETG
4. Various colors sheet: PVC, HIPS, PET, PS, PP, EPS, etc

III,Features
1. Mechanical, pneumatic and electrical integration. Each action program controlled by the PLC. Touch-screen operation, simple and convenient.
2. Frequency sheet feeding, stepless adjustment of length, speed accuracy and stability. (High Speed 1000mm /s)
3. Automatically compensates for temperature control system using intelligent control, fast heating (from 0-400 degrees 5 minutes), stable (without external voltage impact, temperature fluctuations of not more than 1 degree), low energy consumption (15% saving), fever long life and other advantages of brick.
4. Electric furnace with a bias structure, when the sheet width of less than 580mm, closed electric furnace heat tiles while the entire row can reduce energy consumption by 16%.
5. Furnaces partition using gear switch (divided into ten stalls), a control of a regulator, easy to adjust the temperature uniformity, easy to use, simple.
6. Early feeding with the heating time automatic memory function, since the first edition of the machine can enter the normal working condition.
7. Vcuum in two steps, forming mold adjusted twice,shock release, delay vacuum
8. Two directions adjustable up and down stroke, in which the mold clamping direction electric adjustment can be adjusted in the mold on the state (and lower) mold height position, and convenient.
9. Electric gate position after adjustment.
10. Under the direction of the mold clamping readily into the buffer, to improve the speed of the mold, to avoid shock.
11. Upper and lower die sets bushing using mosaic solid lubricating bearings, so that the upper and lower mold under smooth and accurate movement on stage, will help improve the quality of products.
12. Automatic electric furnace removed device is disconnected in the middle of the sheet can be produced at any time without stopping and starting, do not waste sheets.
13. Mechanical reel device, reduce labor intensity.
14. Double action cutting mechanism plywood, electric slicing methods to meet overcast, sub-version of the male die cutting products of any shape.
15. Movement Guide column, so that products stack neatly.

IV,Technical Parameters

Parameter			XC46-71/122A-WP(mode No.)
Available sheet width (mm)			460-710
Available sheet thickness (mm)			0.1-1.2
Max.dia.of sheet roll (mm)			600
Up mold stroke (mm)			400
Down mold stroke (mm)			300
Max. forming area (mm2)			680 × 1200
Max. forming height (mm)			200(male die)
Max. forming height (mm)			150 (female die)
Capacity(times/min)			4-10
Product Shaping&Cooling		Air vent qty.	4 pcs
		Spray nozzle qty.	8 pcs
Gas source	Air supply(m3/min)		≥ 2
	pressure (MPa)		0.8
Water consumption			4-5 Cube / Hour
Vacuum pump (external)			Busch R5 0100
Power supply			three-phase four-wire 380V / 220V 50Hz
Heating power (Kw)			54
Max. power of whole machine (Kw)			61.23
Dimensions (L × W × H)(mm)			8070 × 1656 × 2425
Weight of machine (Kgs)			4700

V,Technical configuration

HMI 5.7 inches color	Taiwan Delta
PLC 48	Taiwan Delta
Inverter 2.2Kw	Taiwan Delta
Encoder 1024	Taiwan Delta
Vacuum pump	Busch
Cylinder (up&down molds adopt coarser cylinders)	Zhicheng
Pneumatic original	Korea Sanwo&Japan SMC
Adjustable spray gun	Meiji
fan	Manda
AC contactor	Germany Siemens
Thermal relay	Germany Siemens
relay	Omron
pulsed solid-state relay electrical pulse (120)	joint venture brand
heating tiles (120)	120 far infrared ceramic heater down into a total of 120 zones (one control one)

VI,Sample Picture

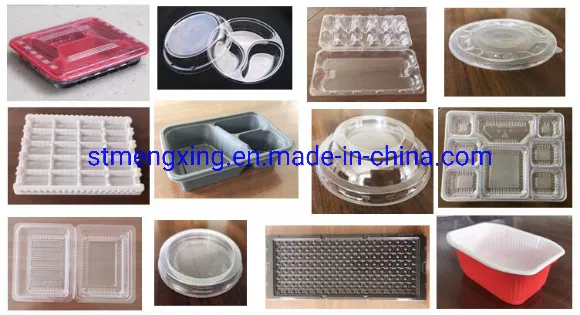

Automatic High-Speed Vacuum Forming Machine

VII,Certifications

VIII,Workshop Pictures

X,Package
Automatic High-Speed Vacuum Forming Machine

XI,Exhibition

Using this product means fewer employee costs. By adding this product to an operation, fewer employees are needed to get the job done. The servo motor adopted is super powerful. This product brings an increase in accuracy and repeatability. As it is programmed to perform a task over and over again, the accuracy and repeatability compared to an employee is far greater. The servo motor adopted is super powerful.
