Basic Info.

Model NO.

XC100-130/125-WF

Certification

ISO9001:2008, CE, UL, QS, GMP

Type

Vacuum Forming Machine

Power(W)

112kw

Dimension

8070*3920*2575

Weight

7300kg

Warranty

1 Year

Product Type

PVC Profile

Voltage

380V50Hz

Packaging Details

Bulk Packing

Lead Time

30days

After-Sales Service

Engineers Available to Service Machinery Overseas

Trademark

MengXing

Origin

Guangdong, China (Mainland)

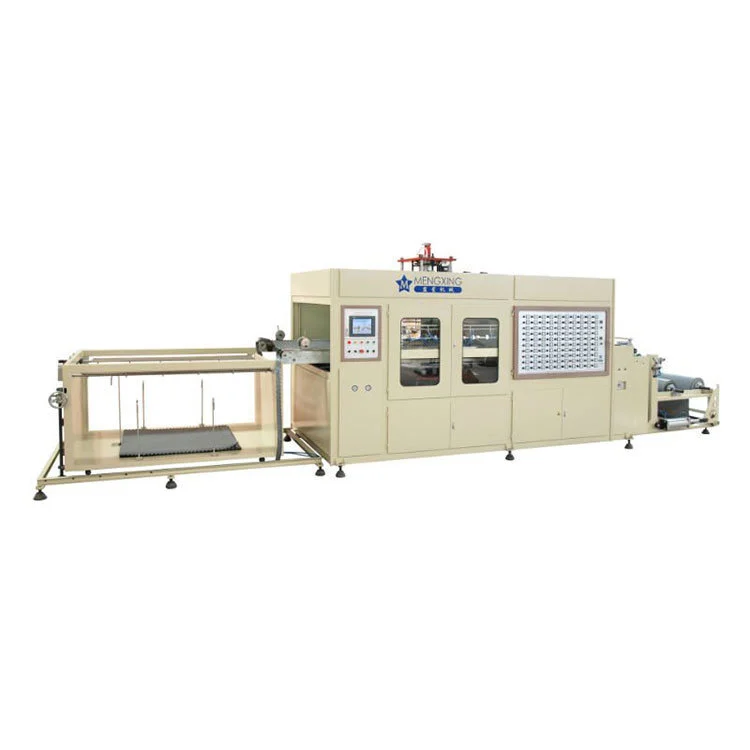

Cooling tower pvc fills forming Machine

sage:
This vacuum forming machine is widely used for making vacuum formed products like cooling tower fills from PVC, PS, material.

Operation Principle:

Operation processes: The heated and soften plastic sheet are being vacuum formed in the mold in order to get the various finished products. The operation processes are: sheet-feeding-heated-forming-side trimming- crosscut.

Structure feature:

01. The machine is combined with pneumatic , mechanical and electricity driving, adpot PLC control . It can achieve sheet feeding , heating , forming , side trimming , crosscut into continuous job .

All working action can adjust uder non-stop production . It's convenient and high capacity , easy for operation .

02. The working method can crosscut by different pattern of fill .

03. Servo Motor feeding , Feeding Length stepless adjustabe , precision and reliable.

04. Cutting Unit with Servo Motor Driving , Electrical & Pneumatic adjustable by different length crosscut ( the length must be longer than each forming mold length ) .

05. Forming area is big and easy for mold installation & replace.

06. Cylinder Roll Sheet Loading , Feeding Chain manual adjust.

07. Upper , Lower mold stroke limited , Up mold descend motor adjust.

08. Forming area double adjustable , can save the sheet material .

09. Back acting plate adopt double cylinder method , motor setting position .

10. Two step of Vacuum .

11. Fan Blowing , Air Spray Cooling Device .

12. Heater adopt individual heating temperature control . ( Point to Point )

13. Advance sheet feeding , heating parameter can automatic adjust.

Technical Parameters:

Sheet size	width 1000-1300mm, thickness 0.12-1.25mm
Max. sheet sending length	1250mm
Max. forming area	970×1870mm
Capacity	4-10cycles/min
Power usage	415V(3 phases 4 lines), max. 112.93Kw total
Air consumption	≥2 m³/min. (prepare by client).
Operation air pressure	0.7Mpa(air source 0.8-1mpa).

Xc100-130/125-Wf Cooling Tower PVC Fills Forming Machines
