Basic Info.

Model NO.

LXC85-135/190-W

Certification

ISO9001:2008, CE, UL

Power(W)

112.93

Dimension

8070*3920*2575

Weight

7300

Voltage

380V 50Hz 3 Phases 4 Line

Lead Time

40 Days

After-Sales Service

Engineers Available to Service Machinery Overseas

Product Type

Blister

Trademark

MengXing

Transport Package

as Standard Exporting Packaging

Origin

Guangdong, China (Mainland)

I,Usage

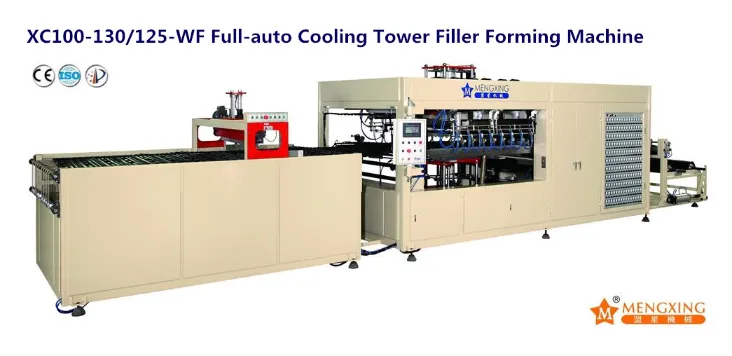

This Cooling Tower Filling Forming Machine is widely used for making vacuum formed products like cooling tower fills from PVC, PS and so on.

II,Operation Principle

Operation processes: The heated and soften plastic sheet are being vacuum formed in the mold in order to get the various finished products. The operation processes are: sheet-feeding-heated-forming-side trimming- crosscut.

III,Structure feature

01. The Cooling Tower Filling Forming Machine is combined with pneumatic , mechanical and electricity driving, adpot PLC control . It can achieve sheet feeding , heating , forming , side trimming , crosscut into continuous job .

All working action can adjust uder non-stop production . It's convenient and high capacity , easy for operation .

02. The working method can crosscut by different pattern of fill .

03. Servo Motor feeding , Feeding Length stepless adjustabe , precision and reliable.

04. Cutting Unit with Servo Motor Driving , Electrical & Pneumatic adjustable by different length crosscut ( the length must be longer than each forming mold length ) .

05. Forming area is big and easy for mold installation & replace.

06. Cylinder Roll Sheet Loading , Feeding Chain manual adjust.

07. Upper , Lower mold stroke limited , Up mold descend motor adjust.

08. Forming area double adjustable , can save the sheet material .

09. Back acting plate adopt double cylinder method , motor setting position .

10. Two step of Vacuum .

11. Fan Blowing , Air Spray Cooling Device .

12. Heater adopt individual heating temperature control . ( Point to Point )

13. Advance sheet feeding , heating parameter can automatic adjust.

IV,Technical Parameters

Sheet size	width 700-1350mm, thickness 0.12-1.2mm
Max. sheet sending length	1900mm
Max. forming area	1320×1880mm
Capacity	4-10cycles/min
Power usage	415V(3 phases 4 lines), max. 112.93Kw total
Air consumption	≥2 m³/min. (prepare by client).
Operation air pressure	0.7Mpa(air source 0.8-1mpa).
Dimension(L×W×H)	8070×3920×2575mm
Weight	about 3200kgs

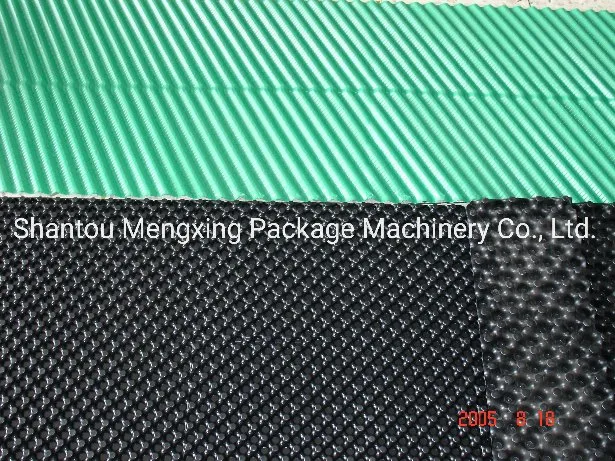

V, Sample Pictures

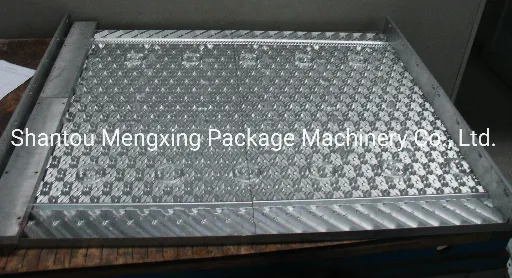

VI,Mold Pictures

VII,Certifications

VIII,Workshop Pictures

IX,Package
LXC 85-135/190-W High Speed Automatic PVC Fill for Cooling Tower

X,Exhibition

We value this product for the speed with which it works, and in the modern world, speed matters the most. - Said one of our customers. Adopting a pneumatic double conveying system and embedded bearings, its molds work stably and accurately. This product will help raise the overall production in the economy. Consequently, employment, national income, and the growth rate of the economy will increase. Adopting a pneumatic double conveying system and embedded bearings, its molds work stably and accurately.
