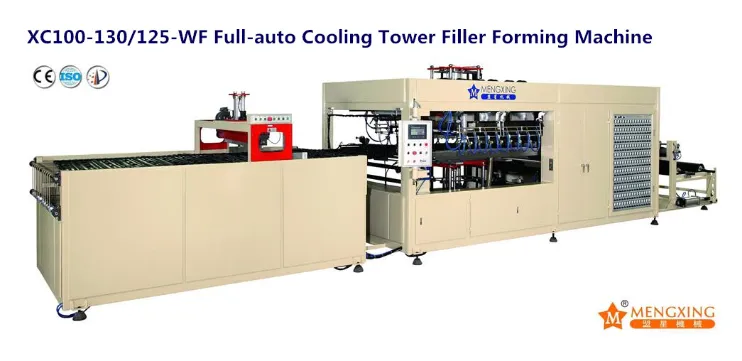

Plastic Cooling Fill Forming Machine (XC88-110/139-WF)
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Basic Info.
Model NO.
XC88-110/139-WF
Trademark
MengXing
Transport Package
as Standard Exporting Package
Specification
9600× 3400× 2500mm
Origin
Shantou,China
HS Code
84778000
I,Usage
This vacuum forming machine is widely used for making vacuum formed products like cooling tower fills from PVC, PS, PP, EPS, PET, Bio-degradable material, APET, PETG and so on.
II,Operation Principle
Operation processes: The heated and soften plastic sheet are being vacuum formed in the mold in order to get the various finished products. The operation processes are: sheet-feeding-heated-forming-side trimming- crosscut.
III,Structure feature
01. The machine is combined with pneumatic , mechanical and electricity driving, adopt PLC control . It can achieve sheet feeding , heating , forming , side trimming , crosscut into continuous job .
All working action can adjust uder non-stop production . It's convenient and high capacity , easy for operation .
02. The working method can crosscut by different pattern of fill .
03. Servo motor feeding , feeding length stepless adjustabe , precision and reliable.
04. Cutting unit with servo motor driving , electrical & pneumatic adjustable by different length crosscut ( the length must be longer than each forming mold length ) .
05. Forming area is big and easy for mold installation & replace.
06. Cylinder roll sheet loading , feeding chain manual adjust.
07. Upper , lower mold stroke limited , up mold descend motor adjust.
08. Forming area double adjustable , can save the sheet material .
09. Back acting plate adopt double cylinder method , motor setting position .
10.Vacuum in two steps.
11. Fan blowing , air spray cooling device .
12. Heater adopt individual heating temperature control . ( Point to Point )
13. Advance sheet feeding , heating parameter can automatic adjust.
IV,Technical Parameters
| Parameter | XC100-130/125-BWF (mode No.) | |
| Suitable sheet width(mm) | 1000-1300 | |
| Sheet thickness(mm) | 0.3-1 | |
| Max.dia. of sheet roll (mm) | 600 | |
| Up mold stroke(mm) | 300 | |
| Down mold stroke(mm) | 250 | |
| Max. forming area(mm2) | 1200×1200 | |
| Max. forming height(mm) | 120 | |
| Max. forming depth(mm) | 100 | |
| Capacity (cycle/min) | 4-8 | |
| Product Shaping& Cooling | Air vent qty. | 7PCS |
| Air sprayer qty. | 16PCS | |
| Gas source (outlay) | Air supply (m3/min) | ≥3 |
| Pressure(MPa) | 0.8 | |
| Water consumption | 4-5 Cube/Hour | |
| Vacuum pump ( Outlay ) | Busch R5 0100 | |
| Power supply | 3-phase 4-wire 415V/ 220V 50Hz | |
| Heating power(Kw) | 59.4 | |
| Feeding motor power(Kw) | 3.0 | |
| Power of whole machine(Kw) | 68.6 | |
| Dimension(L×W×H)(mm) | 9600×3400×2500 | |
| Weight(Kgs) | 7500 | |
V,Technical configuration
| PLC | Taiwan Delta |
| Touch screen monitor ( 10.4″inch /Color ) | Taiwan Delta |
| Feeding motor(3.0kw) | Taiwan Delta |
| Heater with probe(1pcs) | Germany |
| Heater(99pcs) | China |
| Solid voltage regulator | China |
| Contactor | Germany Siemens |
| Thermo relay | Germany Siemens |
| Relay | Japan Omron |
| Vacuum pump(2 set) | Busch R5 0100 |
| Pneumatic component | Japan SMC |
| Cylinder | China |
| Air sprayer(8pcs) | Meiji |
| Fan blower(4×0.55 Kw ) | Manda |

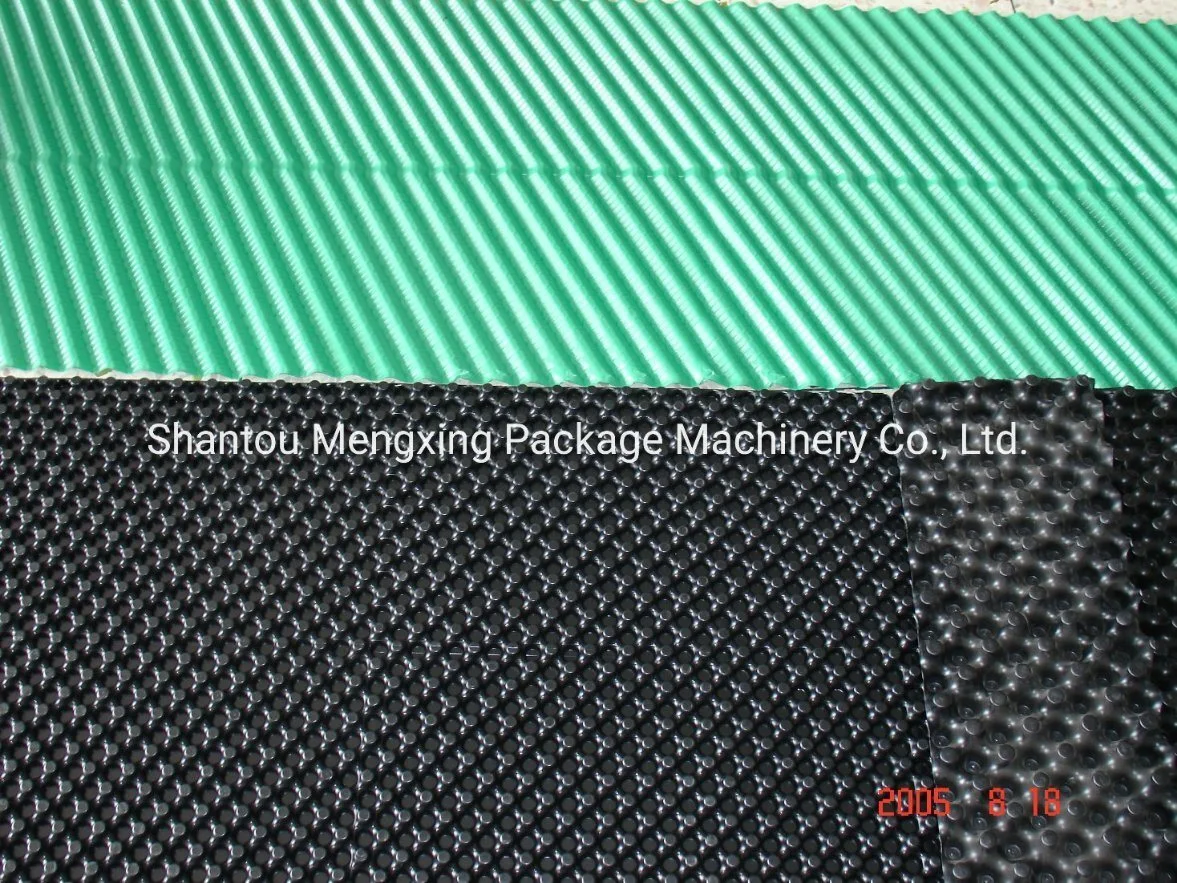

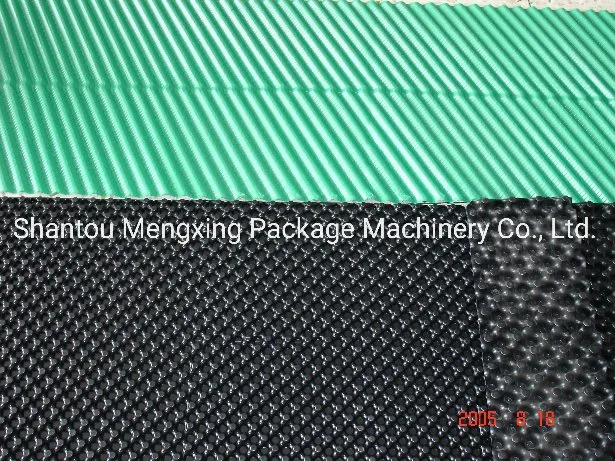

VI,Sample Pictures

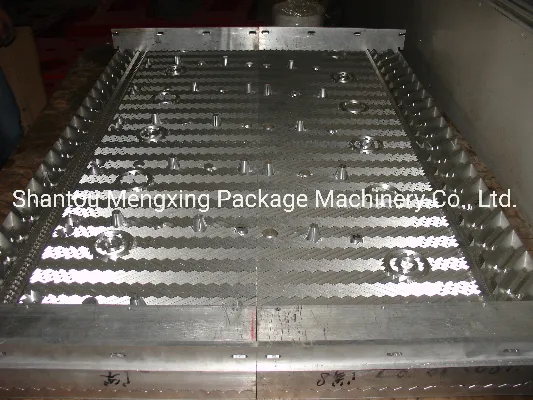

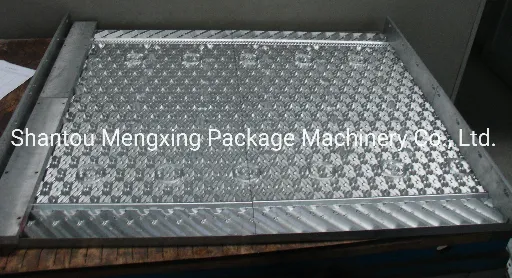

VII,Mold Pictures
VIII,Certifications
IX,Workshop Pictures
X,Package
XI,Exhibition
Works can get rid of jobs that are dirty dull. They will take more interest in their work and their efficiency will increase. The touch screen makes the product be operated easily.
This product will promote the standardization of work quality. It is able to make the work done very neat and accurate. The touch screen makes the product be operated easily.
