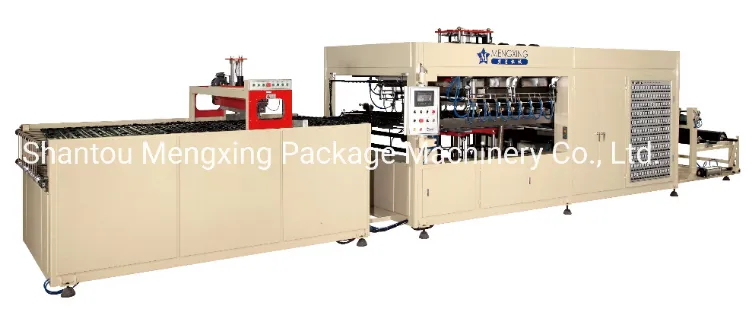

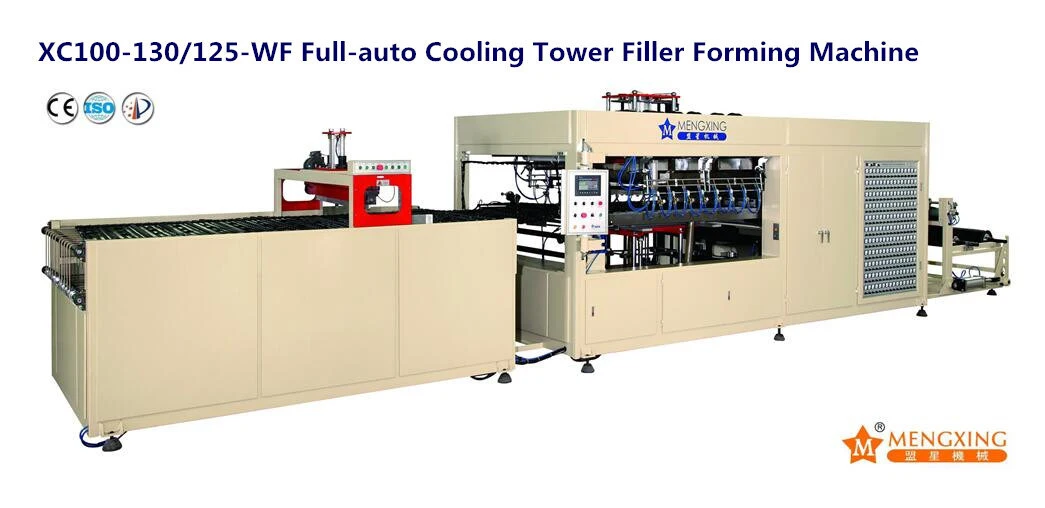

LXC70-135/190-BWF Cooling Tower Fill Forming Machine

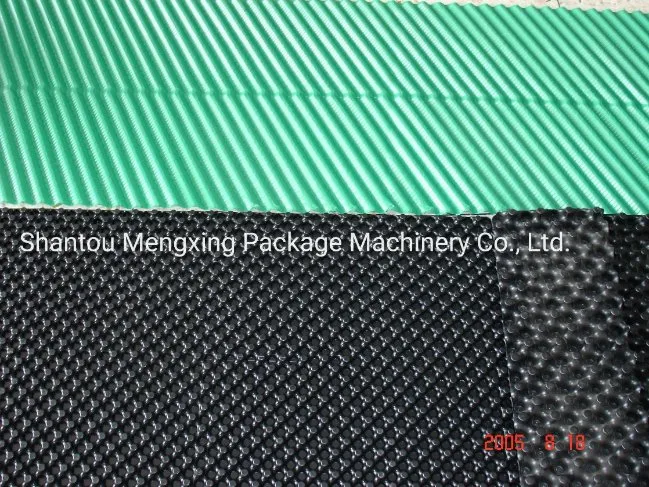

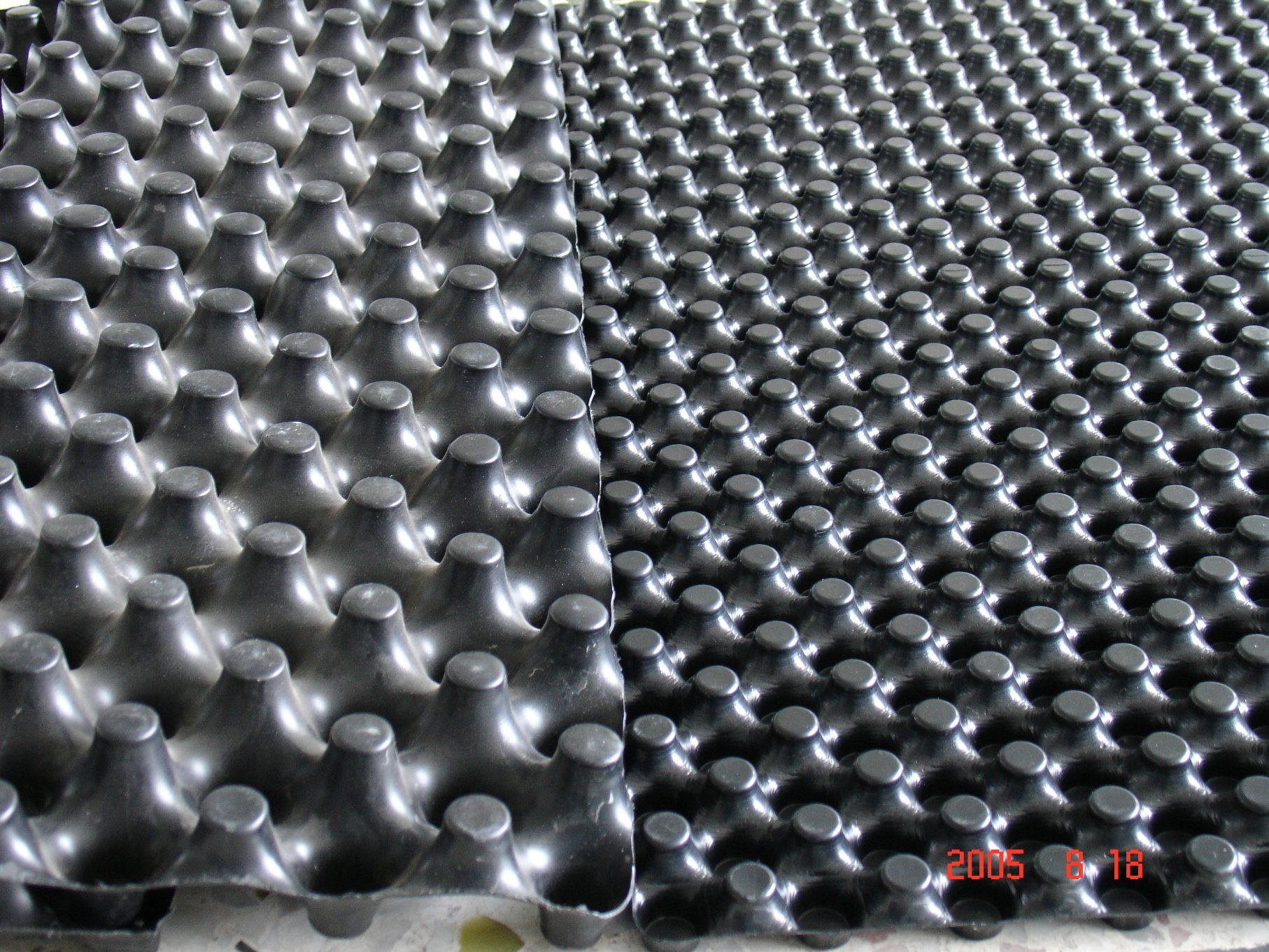

This vacuum forming machine is widely used for making vacuum formed products like cooling tower fills from PVC, PS, PP, EPS, PET, Bio-degradable material, APET, PETG and so on.
Operation processes: The heated and soften plastic sheet are being vacuum formed in the mold in order to get the various finished products. The operation processes are: sheet-feeding-heated-forming-side trimming- crosscut.
01. The machine is combined with pneumatic , mechanical and electricity driving, adopt PLC control . It can achieve sheet feeding , heating , forming , side trimming , crosscut into continuous job .
All working action can adjust uder non-stop production . It's convenient and high capacity , easy for operation .
02. The working method can crosscut by different pattern of fill .
03. Servo motor feeding , feeding length stepless adjustabe , precision and reliable.
04. Cutting unit with servo motor driving , electrical & pneumatic adjustable by different length crosscut ( the length must be longer than each forming mold length ) .
05. Forming area is big and easy for mold installation & replace.
06. Cylinder roll sheet loading , feeding chain manual adjust.
07. Upper , lower mold stroke limited , up mold descend motor adjust.
08. Forming area double adjustable , can save the sheet material .
09. Back acting plate adopt double cylinder method , motor setting position .
10.Vacuum in two steps.
11. Fan blowing , air spray cooling device .
12. Heater adopt individual heating temperature control . ( Point to Point )
13. Advance sheet feeding , heating parameter can automatic adjust.
width 700-1350mm, thickness 0.12-1.2mm
Max. sheet sending length
Max. forming area
415V(3 phases 4 lines), max. 112.93Kw total
≥2 m³/min. (prepare by client).
Operation air pressure
0.7Mpa(air source 0.8-1mpa).
|Touch Screen Monitor ( 7″inch /Color )||Taiwan Delta|
|Feeding Servo Motor(3.0kw)||Taiwan Delta|
|Servo Motor of cutting unit (0.75kw)||Taiwan Delta|
|Heater (164 PCS)||CHINA|
|Solid Voltage Regulator||CHINA|
|Thermo Relay||Germany Siemens|
|Vacuum Pump (2 sets)||Busch R5 0100|
|Fan Blower (7×0.55 kw )||Manda|
