Basic Info.

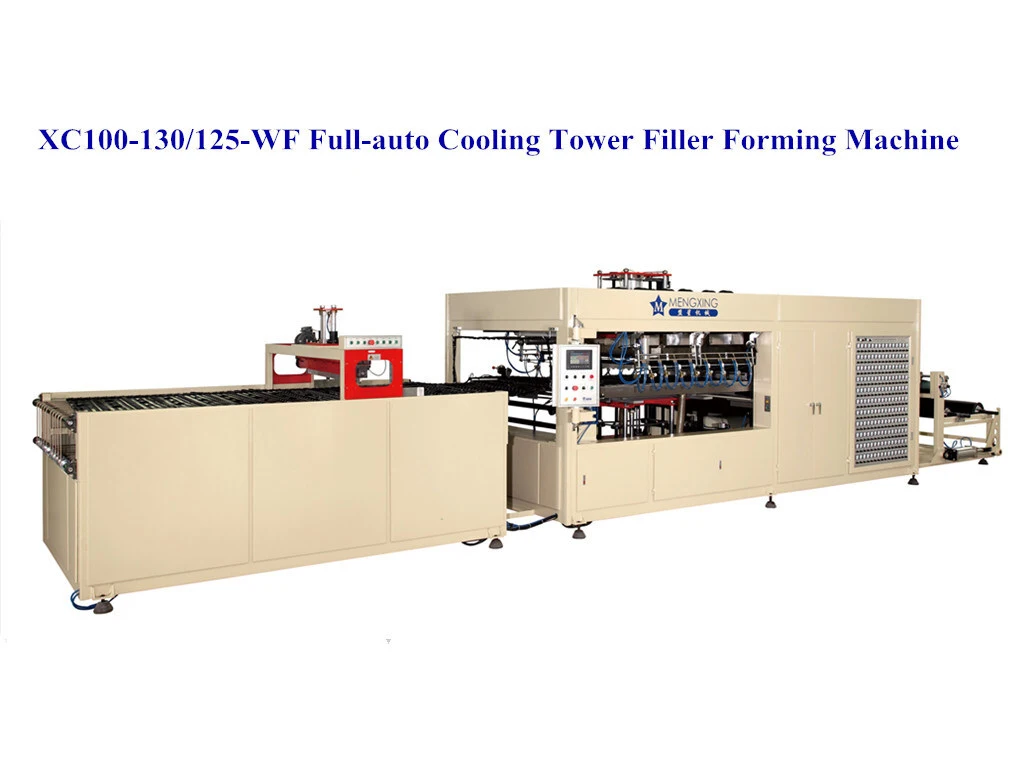

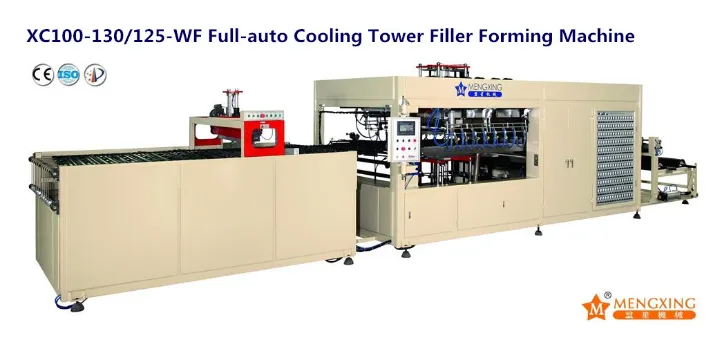

Model NO.
XC100-130/125-WF
Transport Package
as Standard Exporting Package
Specification
9600× 3400× 2500mm
I,Usage
This vacuum forming machine is widely used for making vacuum formed products like cooling tower fills from PVC, PS, PP, EPS, PET, Bio-degradable material, APET, PETG and so on.II,Operation PrincipleOperation processes: The heated and soften plastic sheet are being vacuum formed in the mold in order to get the various finished products. The operation processes are: sheet-feeding-heated-forming-side trimming- crosscut.III,Structure feature01. The machine is combined with pneumatic , mechanical and electricity driving, adopt PLC control . It can achieve sheet feeding , heating , forming , side trimming , crosscut into continuous job .All working action can adjust uder non-stop production . It's convenient and high capacity , easy for operation .02. The working method can crosscut by different pattern of fill .03. Servo motor feeding , feeding length stepless adjustabe , precision and reliable.04. Cutting unit with servo motor driving , electrical & pneumatic adjustable by different length crosscut ( the length must be longer than each forming mold length ) .05. Forming area is big and easy for mold installation & replace.06. Cylinder roll sheet loading , feeding chain manual adjust.07. Upper , lower mold stroke limited , up mold descend motor adjust.08. Forming area double adjustable , can save the sheet material .09. Back acting plate adopt double cylinder method , motor setting position .10.Vacuum in two steps.11. Fan blowing , air spray cooling device .12. Heater adopt individual heating temperature control . ( Point to Point )13. Advance sheet feeding , heating parameter can automatic adjust.IV,Technical Parameters| Parameter | XC100-130/125-BWF (mode No.) |
| Suitable sheet width(mm) | 1000-1300 |
| Sheet thickness(mm) | 0.3-1 |
| Max.dia. of sheet roll (mm) | 600 |
| Up mold stroke(mm) | 300 |
| Down mold stroke(mm) | 250 |
| Max. forming area(mm2) | 1200×1200 |
| Max. forming height(mm) | 120 |
| Max. forming depth(mm) | 100 |
| Capacity (cycle/min) | 4-8 |

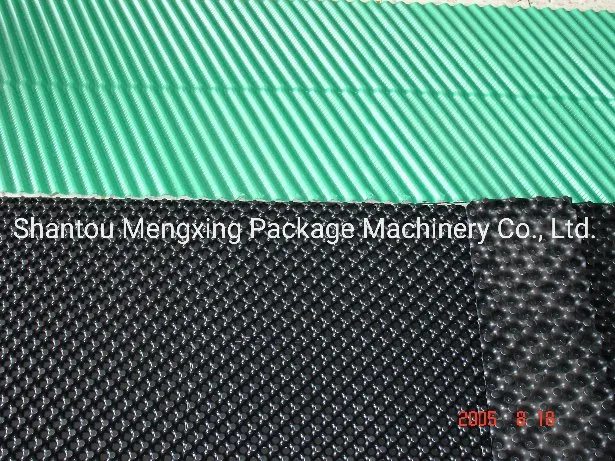

Product
Shaping& Cooling | Air vent qty. | 7PCS |
| Air sprayer qty. | 16PCS |
| Gas source (outlay) | Air supply (m3/min) | ≥3 |
| Pressure(MPa) | 0.8 |
| Water consumption | 4-5 Cube/Hour |
| Vacuum pump ( Outlay ) | Busch R5 0100 |
| Power supply | 3-phase 4-wire 415V/ 220V 50Hz |
| Heating power(Kw) | 59.4 |
| Feeding motor power(Kw) | 3.0 |
| Power of whole machine(Kw) | 68.6 |
| Dimension(L×W×H)(mm) | 9600×3400×2500 |
| Weight(Kgs) | 7500 |
| PLC | Taiwan Delta |
| Touch screen monitor ( 10.4″inch /Color ) | Taiwan Delta |
| Feeding motor(3.0kw) | Taiwan Delta |
| Heater with probe(1pcs) | Germany |
| Heater(99pcs) | China |
| Solid voltage regulator | China |
| Contactor | Germany Siemens |
| Thermo relay | Germany Siemens |
| Relay | Japan Omron |
| Vacuum pump(2 set) | Busch R5 0100 |
| Pneumatic component | Japan SMC |
| Cylinder | China |
| Air sprayer(8pcs) | Meiji |
| Fan blower(4×0.55 Kw ) | Manda |

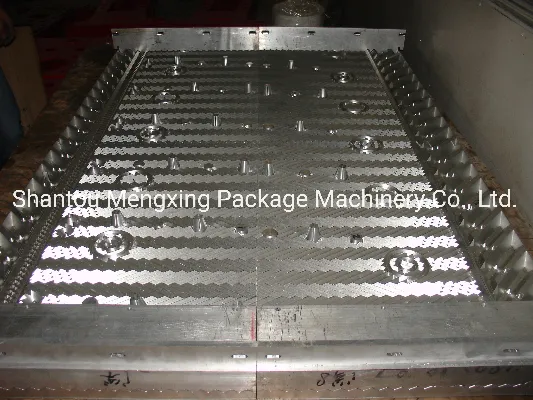

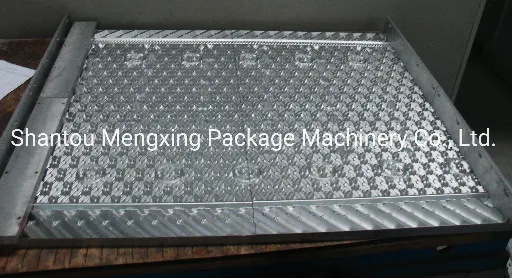

VII,Mold Pictures
VIII,Certifications
IX,Workshop Pictures
X,PackageXI,Exhibition
The whole production process of vacuum forming machine is strictly controlled by professional QC. Auto roll sheet loading and quick mold change system can help save labor while improving work efficiency.
Mengxing has enough capability to produce vacuum forming machine with high quality as well as considerate customer service. Auto roll sheet loading and quick mold change system can help save labor while improving work efficiency.
