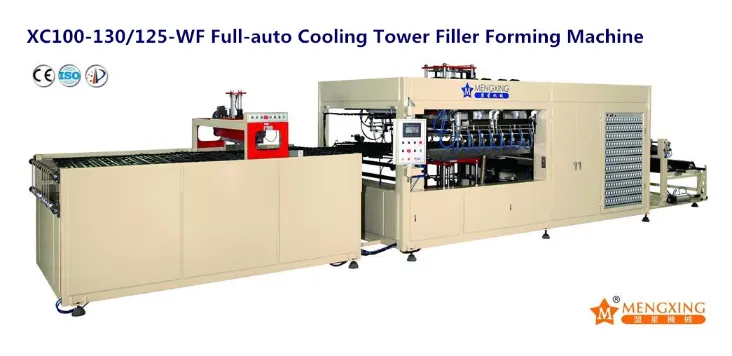

Blister Machine for Cooling Tower Filler

Blister Machine for Cooling Tower Filler

Add success, do you want to check your shopping cart?


Basic Info.

Model NO.
Transport Package
as Standard Exporting Package
9600× 3400× 2500mm
Shantou, China
HS Code
Blister Machine for Cooling Tower Filler

This vacuum forming machine is widely used for making vacuum formed products like cooling tower fills from PVC, PS, PP, EPS, PET, Bio-degradable material, APET, PETG and so on.

II,Operation Principle
Operation processes: The heated and soften plastic sheet are being vacuum formed in the mold in order to get the various finished products.  The operation processes are: sheet-feeding-heated-forming-side trimming- crosscut.

III,Structure feature
01. The machine is combined with pneumatic , mechanical and electricity driving, adopt PLC control . It can achieve sheet feeding , heating , forming , side trimming , crosscut into continuous job .
All working action can adjust uder non-stop production . It's convenient and high capacity , easy for operation .
02. The working method can crosscut by different pattern of fill .
03. Servo motor feeding , feeding length stepless adjustabe , precision and reliable.
04. Cutting unit with servo motor driving , electrical & pneumatic adjustable by different length crosscut ( the length must be longer than each forming mold length ) .
05. Forming area is big and easy for mold installation & replace.
06. Cylinder roll sheet loading , feeding chain manual adjust.
07. Upper , lower mold stroke limited , up mold descend motor adjust.
08. Forming area double adjustable , can save the sheet material .
09. Back acting plate adopt double cylinder method , motor setting position .
10.Vacuum in two steps.
11. Fan blowing , air spray cooling device .
12. Heater adopt individual heating temperature control . ( Point to Point )
13. Advance sheet feeding , heating parameter can automatic adjust.

IV,Technical Parameters
ParameterXC100-130/125-BWF (mode No.)
Suitable sheet width(mm)1000-1300
Sheet thickness(mm)0.3-1
Max.dia. of sheet roll (mm)600
Up mold stroke(mm)300
Down mold stroke(mm)250
Max. forming area(mm2)1200×1200
Max. forming height(mm)120
Max. forming depth(mm)100
Capacity (cycle/min)4-8
Shaping& Cooling
Air vent qty.7PCS
Air sprayer qty.16PCS
 Gas source (outlay)Air supply (m3/min)≥3
Water consumption 4-5 Cube/Hour
Vacuum pump ( Outlay ) Busch R5 0100
Power supply3-phase 4-wire      415V/ 220V 50Hz
Heating power(Kw)59.4
Feeding motor power(Kw)3.0
Power of whole machine(Kw)68.6

V,Technical configuration
PLC Taiwan Delta
Touch screen monitor ( 10.4″inch /Color )Taiwan Delta
Feeding motor(3.0kw)Taiwan Delta
Heater with probe(1pcs)Germany
Solid voltage regulatorChina
ContactorGermany Siemens
Thermo relayGermany Siemens
RelayJapan Omron
Vacuum pump(2 set)Busch  R5 0100
Pneumatic componentJapan SMC
Air sprayer(8pcs)Meiji
Fan blower(4×0.55 Kw )Manda

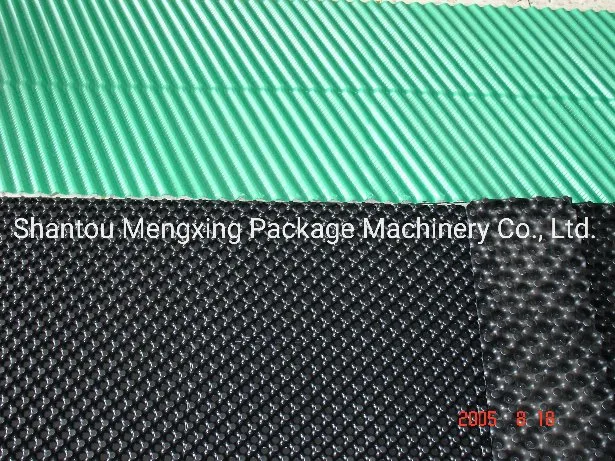

VI,Sample Pictures
Blister Machine for Cooling Tower Filler

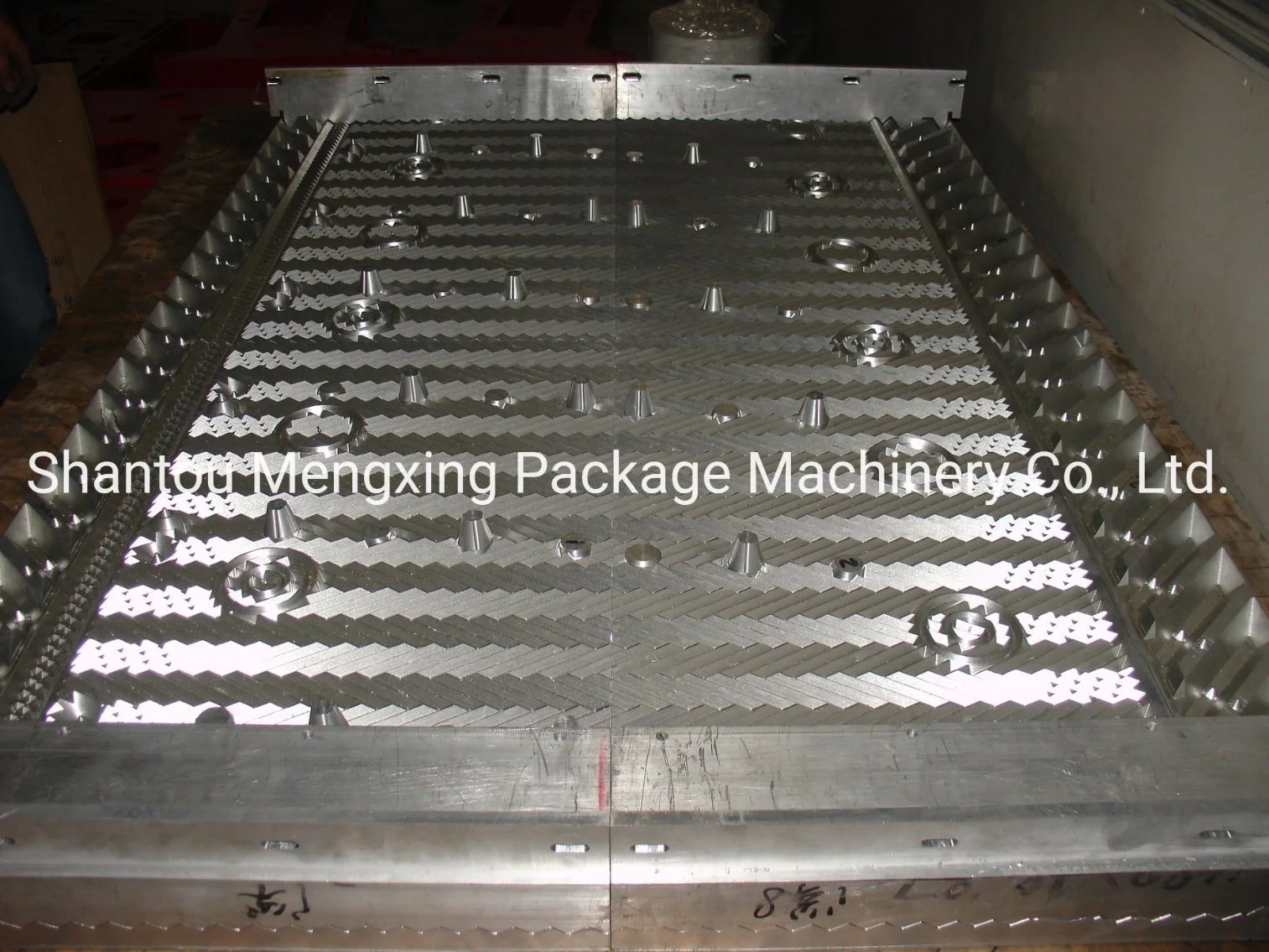

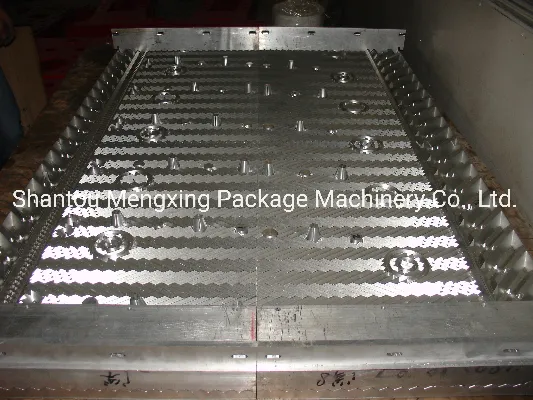

VII,Mold Pictures
Blister Machine for Cooling Tower Filler
Blister Machine for Cooling Tower Filler

Blister Machine for Cooling Tower Filler

IX,Workshop Pictures
Blister Machine for Cooling Tower Filler


Blister Machine for Cooling Tower Filler

Blister Machine for Cooling Tower Filler
With this product, less work is required to be done by human labor, which enhances speed, accuracy, and efficiency. It has passed the CE certification. This product can replace human beings to complete dangerous tasks, which greatly relieves the pressure and labor of workers in the long run. It has passed the CE certification.
