Mtc 400 Full Servo Automatic Cutting Machine
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Basic Info.
Model NO.
MTC400
Trademark
MengXing
Origin
Shantou, China
HS Code
39201000

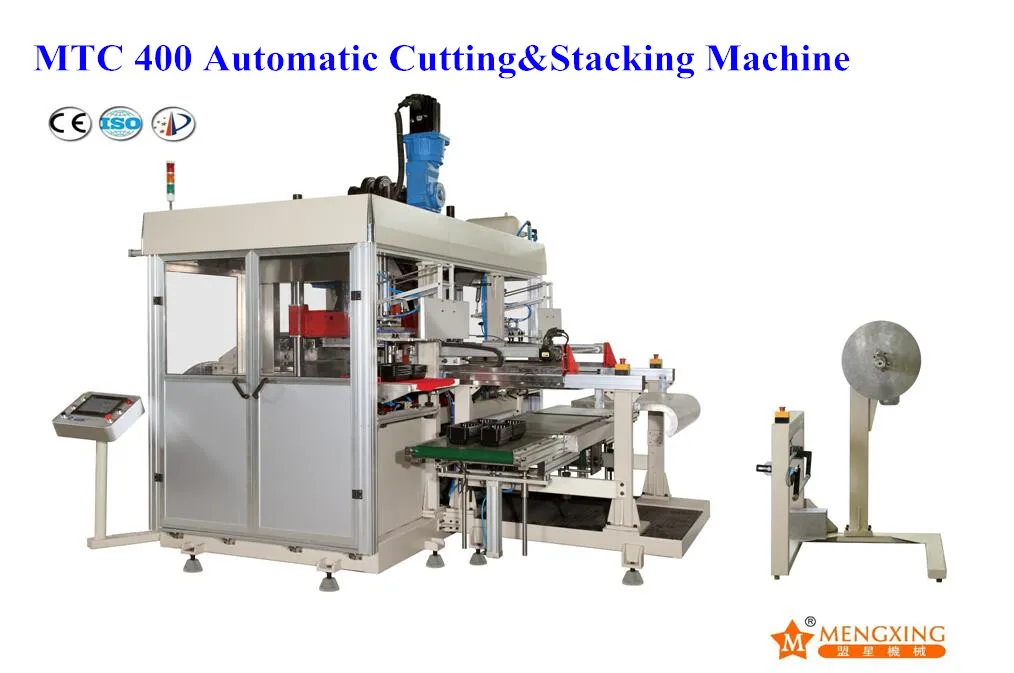

MTC400 Full Servo Automatic Cutting,Counting&Stacking Machine
I,Features
01. This machine mechanical, pneumatic, electrical integration. Each action program controlled by the PLC. Touch-screen operation, simple and convenient.
02. servo motors sheet feeding, step-less adjustment of length, speed accuracy and stability.
03. Adapt with ordinary plastic machine, vacuum forming machine connections are trimmed.
04. Cutting using laser cutter mold, the lower the cost.
05. Using die cutting technology shift, little can be achieved without cutting plastic products, in line with most of the food packaging requirements.
06. Cutting clamping down with full servo drive, fast and precise clamping stroke.
07. Robot sucked out barrier stack, saving labor costs, reduce labor intensity.
08. Using quick die change equipment, pneumatic clamping.
II,Technical parameters
| Parameter | MTC 400(mode No.) | |
| Max. cutting area(mm2) | 400 × 760 | |
| Available sheet thickness (mm) | 0.3-1.5 | |
| Available sheet width (mm) | 500-800 | |
| Max. cutting force (ton) | 45 | |
| Upper mould stroke(mm) | 80 | |
| Under mold stroke (mm) | 110 | |
| Max.height of product (mm) | 70 | |
| Max.depth of product (mm) | 100 | |
| Capacity (Cycle/min) | 30 | |
| Gas source (outlay) | Air supply(m3/min) | ≥ 3 |
| Pressure(MPa) | 0.8 | |
| Power supply | three-phase four-wire 380V / 220V 50Hz | |
| Motor power(Kw) | 19 | |
| Max. power of whole machine(Kw) | 21 | |
| Dimensions (L × W × H) (mm) | 4500 × 3100 × 2900 (including motor height) | |
| Total Weight (Kgs) | 5500 | |
III,Technical configuration
| Programmable Logic Controller (PLC) | Taiwan Delta |
| 10.4 inches color touch screen | Taiwan Delta |
| Sheet feeding servo motor (1.0kw) | Taiwan Delta |
| Up mold servo motor (5.5kw) | Taiwan Delta |
| Down mold servo motor (4.5kw) | Taiwan Delta |
| AC contactor | Germany Siemens |
| Thermal relay | Germany Siemens |
| Intermediate relay | Germany Weidmuller |
| pneumatic components | Japan SMC |
| Cylinder | China |
IV, Certifications
V,Workshop Pictures

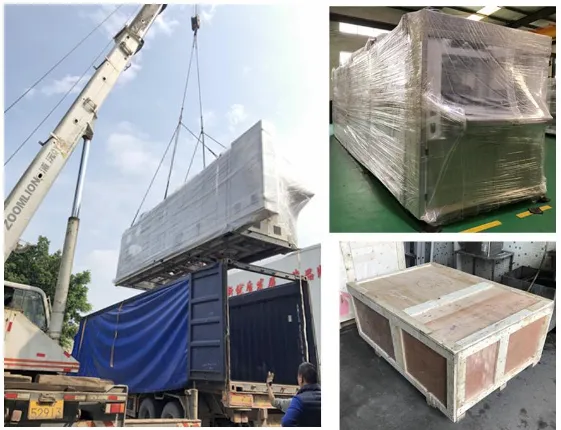

VI,Package
The quality of vacuum forming machine is far superior to others. The product is popular for its data memorization function.
We believe that there are good prospects for this product. The product is popular for its data memorization function.
