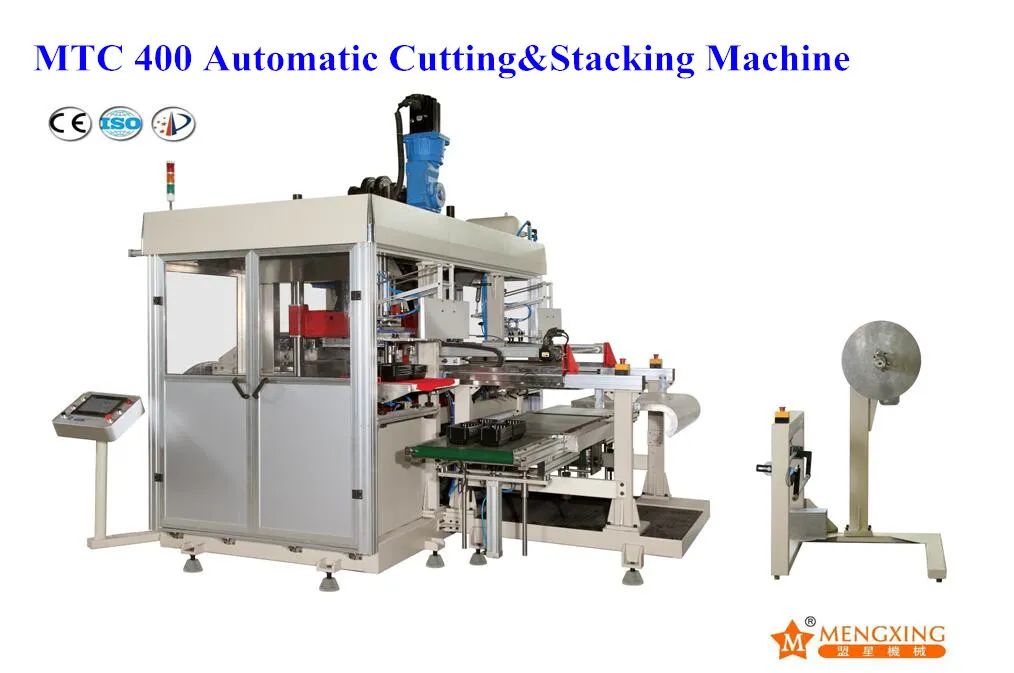

MTC400 Full Servo Automatic Cutting Machine
I,Features
01. This machine mechanical, pneumatic, electrical integration. Each action program controlled by the PLC. Touch-screen operation, simple and convenient.
02. servo motors sheet feeding, step-less adjustment of length, speed accuracy and stability.
03. Adapt with ordinary plastic machine, vacuum forming machine connections are trimmed.
04. Cutting using laser cutter mold, the lower the cost.
05. Using die cutting technology shift, little can be achieved without cutting plastic products, in line with most of the food packaging requirements.
06. Cutting clamping down with full servo drive, fast and precise clamping stroke.
07. Robot sucked out barrier stack, saving labor costs, reduce labor intensity.
08. Using quick die change equipment, pneumatic clamping.
II,Technical parameters
| Parameter | MTC 400(mode No.) | |
| Max. cutting area(mm2) | 400 × 760 | |
| Available sheet thickness (mm) | 0.3-1.5 | |
| Available sheet width (mm) | 500-800 | |
| Max. cutting force (ton) | 45 | |
| Upper mould stroke(mm) | 80 | |
| Under mold stroke (mm) | 110 | |
| Max.height of product (mm) | 70 | |
| Max.depth of product (mm) | 100 | |
| Capacity (Cycle/min) | 30 | |
| Gas source (outlay) | Air supply(m3/min) | ≥ 3 |
| Pressure(MPa) | 0.8 | |
| Power supply | three-phase four-wire 380V / 220V 50Hz | |
| Motor power(Kw) | 19 | |
| Max. power of whole machine(Kw) | 21 | |
| Dimensions (L × W × H) (mm) | 4500 × 3100 × 2900 (including motor height) | |
| Total Weight (Kgs) | 5500 | |
III,Technical configuration
| Programmable Logic Controller (PLC) | Taiwan Delta |
| 10.4 inches color touch screen | Taiwan Delta |
| Sheet feeding servo motor (1.0kw) | Taiwan Delta |
| Up mold servo motor (5.5kw) | Taiwan Delta |
| Down mold servo motor (4.5kw) | Taiwan Delta |
| AC contactor | Germany Siemens |
| Thermal relay | Germany Siemens |
| Intermediate relay | Germany Weidmuller |
| pneumatic components | Japan SMC |
| Cylinder | China |
IV, Certifications
V,Workshop Pictures

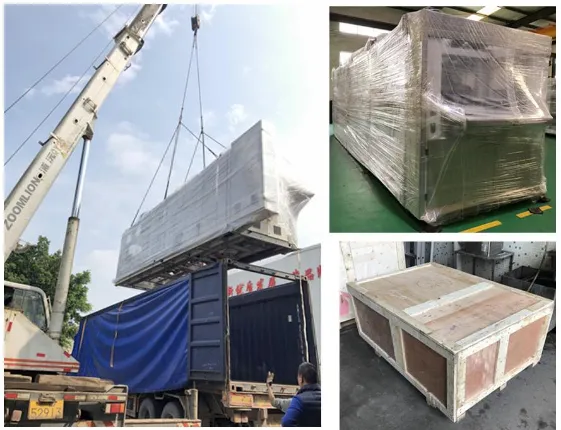

VI,Package
Shantou Mengxing Package Machinery Co.,Ltd. strengthens our core advantage with innovative products. It is suitable for a variety of color sheets like PET, PVC, PS, PP and flocking sheets.
With the improvement of the product, it is more applicable to various scenes. It is suitable for a variety of color sheets like PET, PVC, PS, PP and flocking sheets.
