Automatic Cutting & Stacking Machine

这里可以自定义设置
Automatic Cutting & Stacking Machine
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障

Basic Info.

Model NO.
MTC400
Trademark
MengXing
Origin
Shantou, China
HS Code
39201000

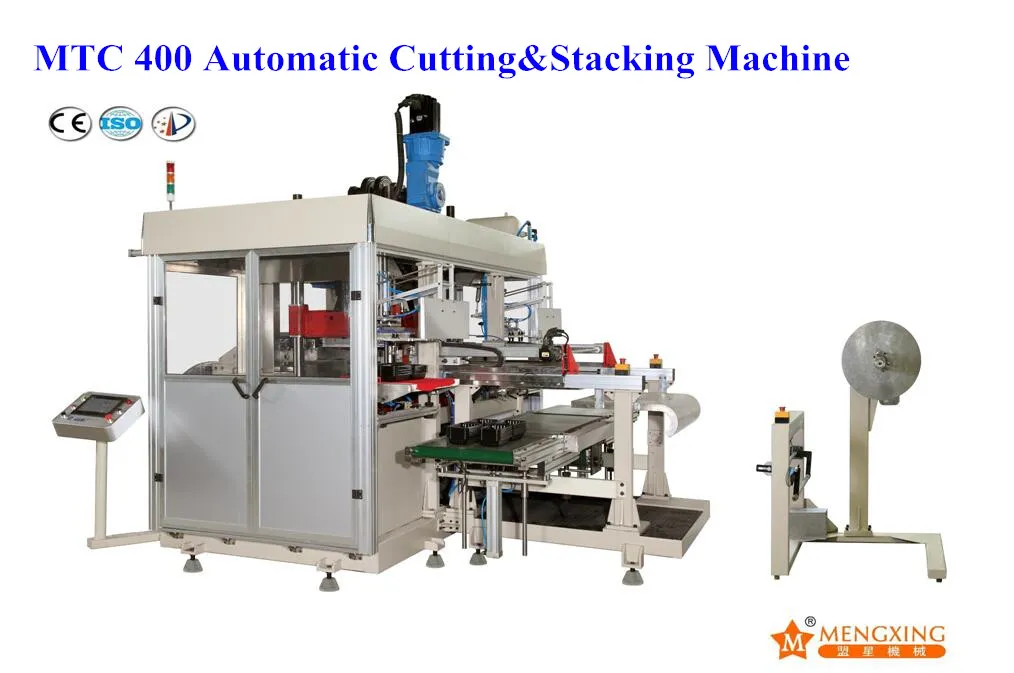

MTC400 Full Servo Automatic Cutting Machine

Automatic Cutting & Stacking Machine




I,Features
 01. This machine mechanical, pneumatic, electrical integration. Each action program controlled by the PLC. Touch-screen operation, simple and convenient.
02. servo motors sheet feeding, step-less adjustment of length, speed accuracy and stability.
03. Adapt with ordinary plastic machine, vacuum forming machine connections are trimmed.
04. Cutting using laser cutter mold, the lower the cost.
05. Using die cutting technology shift, little can be achieved without cutting plastic products, in line with most of the food packaging requirements.
06. Cutting clamping down with full servo drive, fast and precise clamping stroke.
07. Robot sucked out barrier stack, saving labor costs, reduce labor intensity.
08. Using quick die change equipment, pneumatic clamping.

II,Technical parameters

ParameterMTC 400(mode No.)
Max. cutting area(mm2)   400 × 760
Available sheet thickness (mm) 0.3-1.5
Available sheet width (mm) 500-800
Max. cutting force (ton) 45
Upper mould stroke(mm)80
Under mold stroke (mm) 110
Max.height of product (mm) 70
Max.depth of product (mm)100
Capacity (Cycle/min)   30
Gas source (outlay) Air supply(m3/min)  ≥ 3
Pressure(MPa) 0.8
Power supplythree-phase four-wire
380V / 220V 50Hz
Motor power(Kw)19
Max. power of whole machine(Kw)21
Dimensions (L × W × H) (mm)  4500 × 3100 × 2900
 (including motor height)
Total Weight (Kgs)5500

III,Technical configuration

Programmable Logic Controller (PLC)   Taiwan Delta
10.4 inches color touch screen  Taiwan Delta
Sheet feeding servo motor (1.0kw) Taiwan Delta
Up mold servo motor (5.5kw)Taiwan Delta
Down mold servo motor (4.5kw)Taiwan Delta
AC contactor   Germany Siemens
Thermal relay   Germany Siemens
Intermediate relay  Germany Weidmuller
pneumatic components  Japan SMC
Cylinder  China

IV, Certifications
Automatic Cutting & Stacking Machine

V,Workshop Pictures
Automatic Cutting & Stacking Machine


VI,Package


Automatic Cutting & Stacking Machine

People’s ways of life, industries’ production level, and the economy will get their peaks with the advent of this product. It can automatically trim the edge of the processed item. Investing in this product will create a valuable resource for large production volumes, which in turn, will increase profitability. It can automatically trim the edge of the processed item.
