Lxc 85-135/190-W Automatic High Speed Cooling Tower Fill Forming Machine

这里可以自定义设置

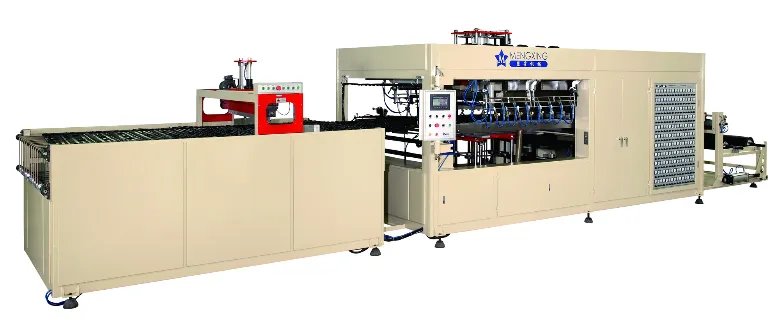

Lxc 85-135/190-W Automatic High Speed Cooling Tower Fill Forming Machine
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障

Basic Info.

Model NO.
LXC 85-135/190-W
Certification
ISO9001:2008, CE, UL, QS, GMP
Power(W)
112.93
Dimension
8070*3920*2575
Weight
7300
Voltage
380V 50Hz 3 Phases 4 Line
Lead Time
40 Days
After-Sales Service
Engineers Available to Service Machinery Overseas
Product Type
Blister
Warranty
One Year
Trademark
MengXing
Transport Package
as Standard Exporting Packaging
Origin
Guangdong, China (Mainland)

CoolingTower Filler Forming Machine


Lxc 85-135/190-W Automatic High Speed Cooling Tower Fill Forming Machine

I,Usage

This cooling tower fill is widely used for making vacuum formed products like cooling tower fills from PVC, PS and so on.



II,Operation Principle

Operation processes: The heated and soften plastic sheet are being vacuum formed in the mold in order to get the various finished products.  The operation processes are: sheet-feeding-heated-forming-side trimming- crosscut.



III,Structure feature

01. The cooling tower fill is combined with pneumatic , mechanical and electricity driving, adpot PLC control . It can achieve sheet feeding , heating , forming , side trimming , crosscut into continuous job .

All working action can adjust uder non-stop production . It's convenient and high capacity , easy for operation .

02. The working method can crosscut by different pattern of fill .

03. Servo Motor feeding , Feeding Length stepless adjustabe , precision and reliable.

04. Cutting Unit with Servo Motor Driving , Electrical & Pneumatic adjustable by different length crosscut ( the length must be longer than each forming mold length ) .

05. Forming area is big and easy for mold installation & replace.

06. Cylinder Roll Sheet Loading , Feeding Chain manual adjust.

07. Upper , Lower mold stroke limited , Up mold descend motor adjust.

08. Forming area double adjustable , can save the sheet material .

09. Back acting plate adopt double cylinder method , motor setting position .

10. Two step of Vacuum .

11. Fan Blowing , Air Spray Cooling Device .

12. Heater adopt individual heating temperature control . ( Point to Point )

13. Advance sheet feeding , heating parameter can automatic adjust.

IV,Technical Parameters

Sheet size

width 700-1350mm, thickness 0.12-1.2mm

Max. sheet sending length

1900mm

Max. forming area

1320×1880mm

Capacity

4-10cycles/min

Power usage

415V(3 phases 4 lines), max. 112.93Kw total

Air consumption

≥2 m³/min. (prepare by client).

Operation air pressure

0.7Mpa(air source 0.8-1mpa).

Dimension(L×W×H)

8070×3920×2575mm

Weight

about 3200kgs

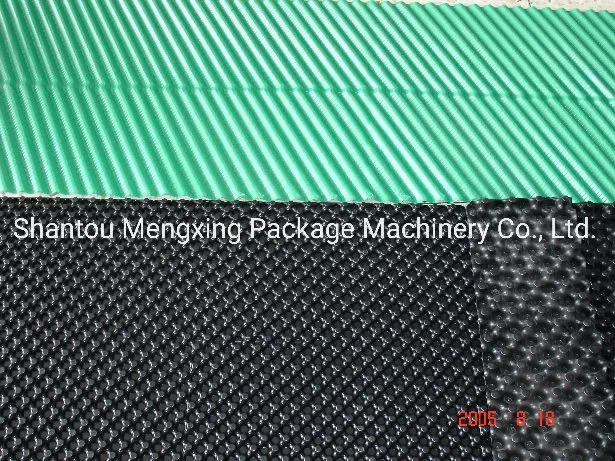

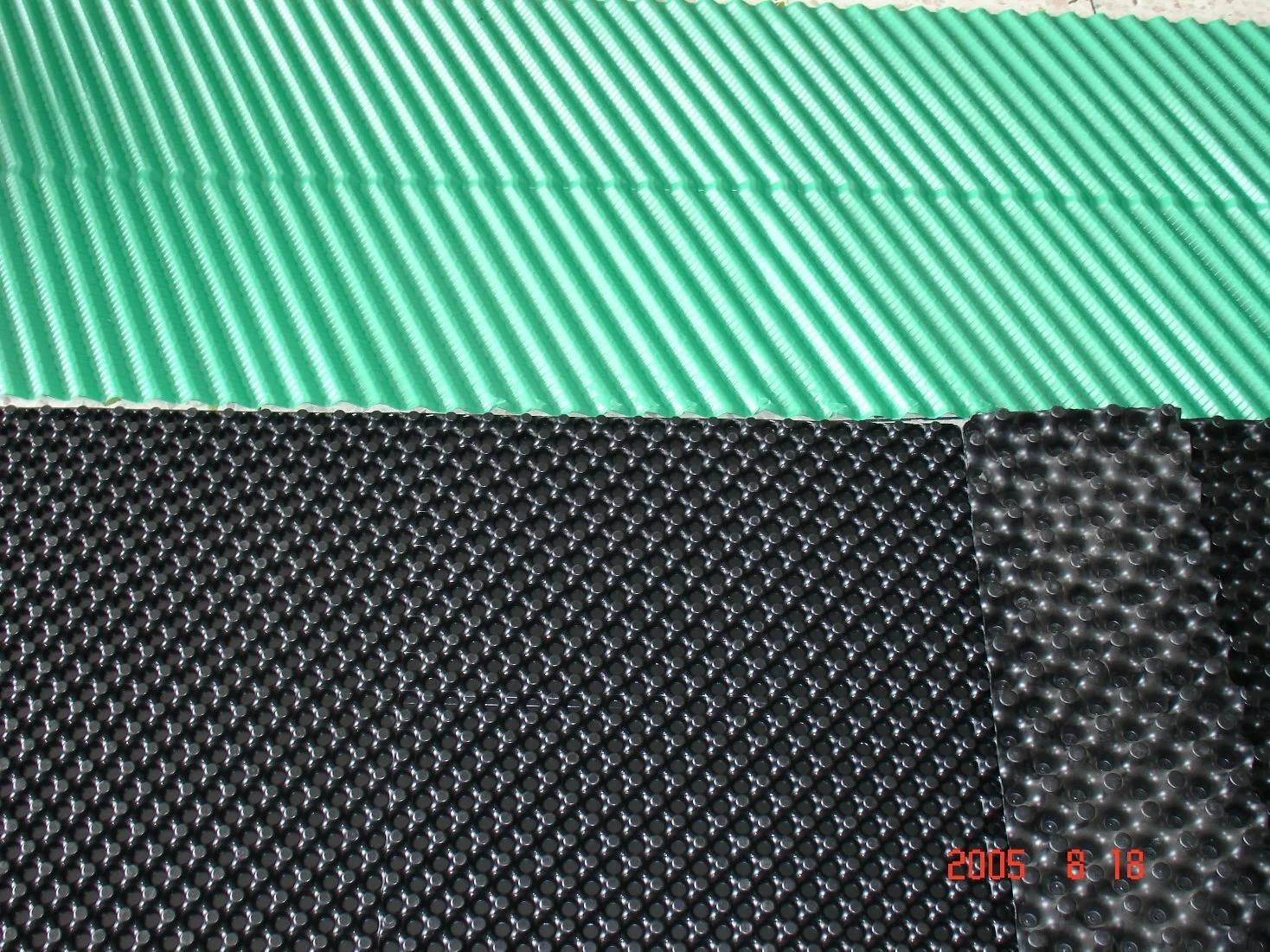

V,Sample Pictures
Lxc 85-135/190-W Automatic High Speed Cooling Tower Fill Forming Machine

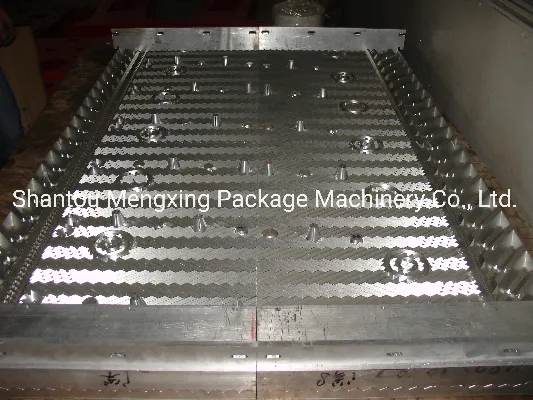

VI,Mold Pictures
Lxc 85-135/190-W Automatic High Speed Cooling Tower Fill Forming Machine
Lxc 85-135/190-W Automatic High Speed Cooling Tower Fill Forming Machine


VII,Certifications
Lxc 85-135/190-W Automatic High Speed Cooling Tower Fill Forming Machine

IX,Workshop Pictures
Lxc 85-135/190-W Automatic High Speed Cooling Tower Fill Forming Machine


VIII,Package

Lxc 85-135/190-W Automatic High Speed Cooling Tower Fill Forming Machine

IX,Exhibition
Lxc 85-135/190-W Automatic High Speed Cooling Tower Fill Forming Machine



Its industrialization speed is fast, and its scale effect is remarkable. The product ensures low power consumption. Shantou Mengxing Package Machinery Co.,Ltd. focuses on building relationships and providing the best customer service possible. The product ensures low power consumption.
