Full-auto vacuum pressure forming machine 3 station QZC46-71/54-CWF3

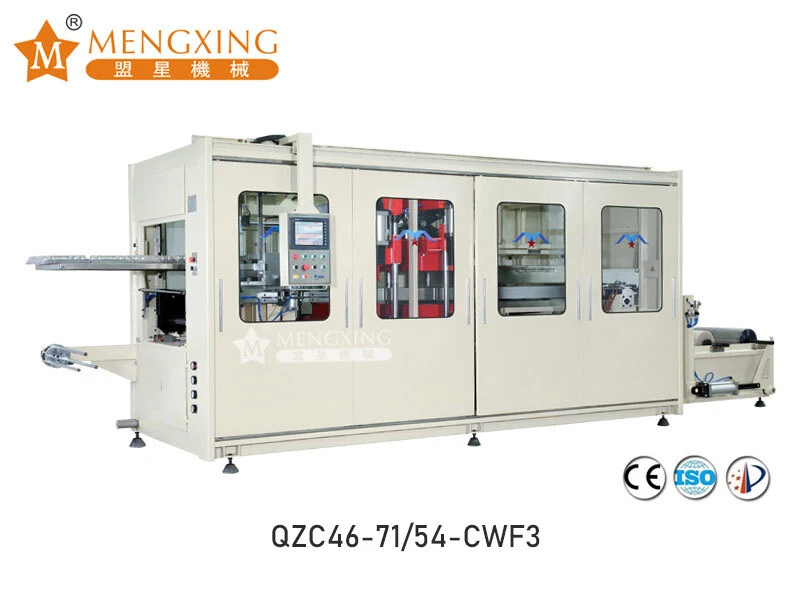

QZC46-71/54-CWF3 Three Stations Pressure&Vacuum Forming Machine
Egg box by 3 stations
￣￣ Usage
The machine is suitable for making all size packing containers, in open-type with thin-wall, by using roll-sheet, under high-speed vacuum suction-forming processing.
The products out of this machine can be used for the package of foods. native-products, tourist-goods, textile, medical, toy, cosmetic, electrical elements and daily used hard-ware, etc .
Usage
Sheet fit to the machine
Starch-deposit sheets ,light-deposit sheet ,environment sheet APET ,PETG.
Color sheets :PVC,HIPS,PET,PS,PP, CPET,EPS, etc.,fFiber-coating-sheet.
Product Sample Pictures
Feature Function
1. Mechanical , Pneumatic and Electrical Combination . All working action is controlled by PLC . Touch Screen Input , easy and convenient .
2. Three Working Position : Forming / Cutting / Stacking .
3. Pressure / Negative Forming assist with Plug
4. Upper or Lower Mold Forming Method
5. Servo Motor Feeding , Feeding Length Stepless Adjust , High Speed and Accurate .
6. Upper Heater , Four Section Heating .
7. Heater with Intellectual Temperature Control System , automatic supply the heating, Individual Heater Control , Touch Screen Digital Input , Mini-adjust & Precision and Accurate , Fast Heating ( Only 3 min from 0-400 degree ) . Stable and Reliable .It won’t effect by outer voltage , lower power consumption , longer life of far infrared ceramic heater .
8. Servo Motor Stacking , Finished Production Accounting .
9. All production data and technical parameter store and recall function .
10. Edge Automatic trimming .
11. Feeding China Width separate adjust or Motor adjust .
12. Heater automatic push-out function .
13. Auto Roll Sheet Loading , Reduce the Working labor.
Product Details
Mechanical , Pneumatic and Electrical Combination . All working action is controlled by PLC . Touch Screen Input ,
easy and convenient .
Technical Parameter
Parameter | QZC46-71/54-CWF3(mode No.) | |
Sheet width (mm) | 460-710 | |
Sheet thickness (mm) | 0.2-1.5 | |
Max.dia.of Sheet roll (mm) | 600 | |
Forming mold stroke (mm) | 2×155 | |
Cutting mold stroke (mm) | 155 | |
Cutting base stroke (mm) | Max. 100 | |
Max. forming area (mm2) | 670×540 | |
Max. forming depth / height (mm) | 80/50 | |
Max. cutting force(kgf) | 30000 | |
Capacity ( Cycle / min) | 4-18 ( Max. capacity is 18 cycle/ min.) | |
Forming cooling | Water Cooling | |
Air source | Air supply(m3/ min) | ≥5 |
Pressure (MPa) | 0.8 | |
Vacuum pump | Busch R5 0040 | |
Power supply | 3 Phase 4 Line 380V50Hz | |
Heating power (Kw) | 44.2 | |
Max. power of whole machine(Kw) | 50.42 | |
Dimension (L×W×H) (mm) | 9400×3030×2430 | |
Weight of whole machine(Kgs) | ≈9000 | |
Technical Configuration
PLC | Taiwan Delta |
Touch screen monitor ( 10.4"inch /Color ) | Taiwan Delta |
Feeding servo motor（3.0kw） | Taiwan Delta |
Stacking servo motor （1.5kw） | Taiwan Delta |
Heater (78PCS ) | Germany |
Solid state relay (78 PCS ) | China |
Contactor | Germany Siemens |
Thermo relay | Germany Siemens |
Relay | Germany Weidmuller |
Vacuum pump | Busch R5 0040 |
Pneumatic | Japan SMC |
Cylinder | China |
Package
