Full atomatic vacuum pressure forming machine 4 station MFPC7660
MFPC7660 Full-auto 4 Station Pressure & Vacuum Forming Machine

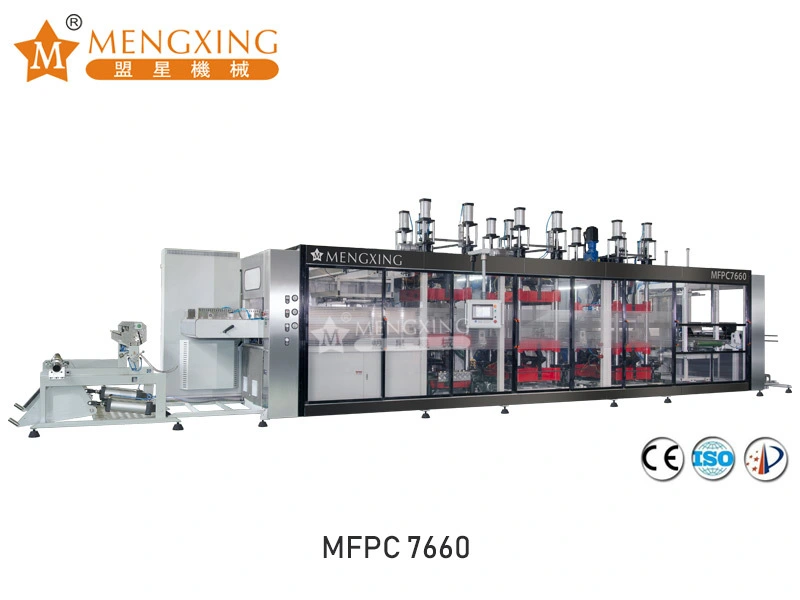

MFPC 7660 Four-station fruit box punching
￣￣ Usage
The machine is designed for producing various of open-wide plastic containers, such as food trays, plastic trays, cosmetic trays , blister , clamshells , plates and other plastic related items .
Product Sample Pictures
Suitable Sheet
PVC, PP, PS, OPS, PET, APET, PETG, CPET Etc.
Structure Feature
1. Mechanical, pneumatic and electrical combination, all working actions are controlled by PLC. Touch screen makes the operation convenient and easy.
2. Pressure And/Or Vacuum forming.
3. Up and down mold forming method.
4. Servo motor feeding, feeding length can be step-less adjusted. High speed and accurate.
5. Upper & lower heater, three sections heating
6. Heater with intellectual temperature control system, automatic supply the heating individual heater control. Fast heating(3 min from 0-400 degree), it won’t be effected by outer voltage.
7.Forming,Punching,cutting unit mold open and close controlled by servo motor, products automatically count.
8.Data memorization function can store running data.
9.Stacking system: Downward stacking.
10.Feeding width can be synchronously or independently adjusted in electrical way.
11.Heater will automatically push-out when air pressure is not enough.
12.Auto roll sheet loading, Quick mold change system, reduce the working load.
Product Details
Mechanical, pneumatic and electrical combination, all working actions are controlled by PLC. Touch screen makes the operation convenient and easy.
Technical Parameter
Parameter | MFPC7660(Mode No.) | |
Sheet width(mm) | 500-800 | |
Sheet thickness(mm) | 0.1-1.5 | |
Max.dia.of sheet roll(mm) | 800 | |
Forming mold stroke(mm) | Up:140,Down:140 | |
Mold clamping force/Punching force(Ton) | 45 | |
Max.forming area(mm2) | 760*600 | |
Forming mold width(mm) | 500-760 | |
Max.forming depth/height(mm) | 120/70 | |
Cutting mold stroke(mm) | Up:80;Down:140 | |
Max.cutting area(mm2) | 760*600 | |
Cutting force(Ton) | 60 | |
Cycle(time/min) | Max.30 | |
Cooling method | Water cooling | |
Gas source | Air supply(m3/min) | ≥2 |
Pressure(Mpa) | 0.8 | |
Vacuum pump | Busch R5 0100 | |
Power supply | 3 Phase 4 Wire 380V 50Hz | |
Heating power(Kw) | 120 | |
Max.general power(Kw) | 160 | |
Dimension(L*W*H)(mm) | 14500*3200*3200 | |
Weight(Ton) | ≈18 | |
Technical Components
PLC | Taiwan Delta |
Touch Screen Monitor ( 10.4"inch /Color ) | Taiwan Delta |
Feeding servo motor (5.5kw) | Taiwan Delta |
Forming up/down mold servo motor (4.5kw) | Taiwan Delta |
Punching up/down mold servo motor (4.5kw) | Taiwan Delta |
Cutting up/down mold servo motor (5.5+4.5kw/4.5kw) | Taiwan Delta |
Stacking Servo motor (2kw) | Taiwan Delta |
Feeding Chain | Germany Iwis |
Heater(196 pcs) | Germany Elstein |
Contactor | Germany Siemens |
Overload Relay | Germany Siemens |
Relay | Germany Weidmuller |
Solid State Relay (SSR) | Switzerland Carlo Gavazzi |
Vacuum Pump | Germany Busch |
Electronic pressure sensor | Taiwan Delta |
Automatic Lubrication Unit System | Taiwan ChenYing |
Pneumatic Solenoid valve | Japan SMC |
Pneumatic Cylinder | Taiwan Airtec |
