Cooling Tower Filler Making Machine
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Basic Info.
Model NO.
XC100-130/125-WF
Trademark
MengXing
Transport Package
as Standard Exporting Package
Specification
9600× 3400× 2500mm
Origin
Shantou, China
HS Code
84778000

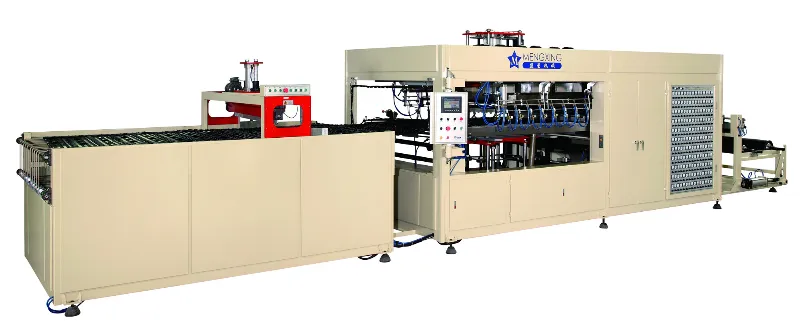

XC100-130/125-WF Cooling Tower Filler Making Machine
![Cooling Tower Filler Making Machine]()
I,Usage
This vacuum forming machine is widely used for making vacuum formed products like cooling tower fills from PVC, PS, PP, EPS, PET, Bio-degradable material, APET, PETG and so on.
II,Operation Principle
Operation processes: The heated and soften plastic sheet are being vacuum formed in the mold in order to get the various finished products. The operation processes are: sheet-feeding-heated-forming-side trimming- crosscut.
III,Structure feature
01. The machine is combined with pneumatic , mechanical and electricity driving, adopt PLC control . It can achieve sheet feeding , heating , forming , side trimming , crosscut into continuous job .
All working action can adjust uder non-stop production . It's convenient and high capacity , easy for operation .
02. The working method can crosscut by different pattern of fill .
03. Servo motor feeding , feeding length stepless adjustabe , precision and reliable.
04. Cutting unit with servo motor driving , electrical & pneumatic adjustable by different length crosscut ( the length must be longer than each forming mold length ) .
05. Forming area is big and easy for mold installation & replace.
06. Cylinder roll sheet loading , feeding chain manual adjust.
07. Upper , lower mold stroke limited , up mold descend motor adjust.
08. Forming area double adjustable , can save the sheet material .
09. Back acting plate adopt double cylinder method , motor setting position .
10.Vacuum in two steps.
11. Fan blowing , air spray cooling device .
12. Heater adopt individual heating temperature control . ( Point to Point )
13. Advance sheet feeding , heating parameter can automatic adjust.
IV,Technical Parameters
V,Technical configuration

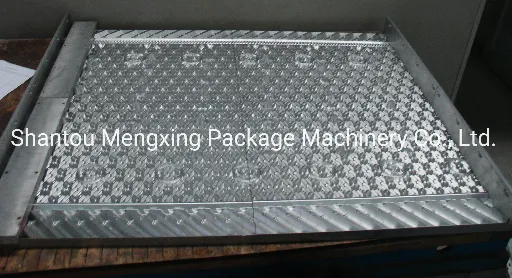

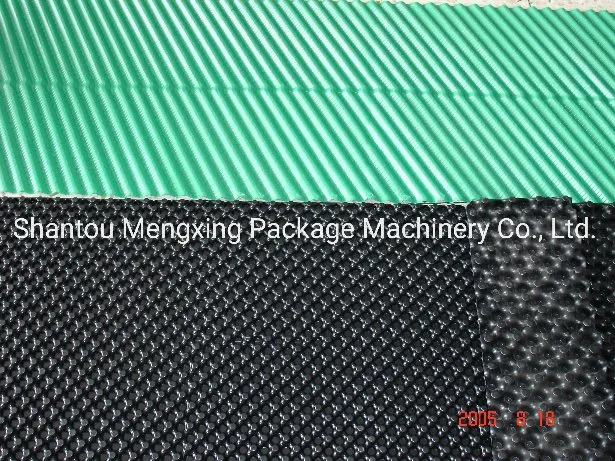

VI,Sample Pictures
![Cooling Tower Filler Making Machine]()

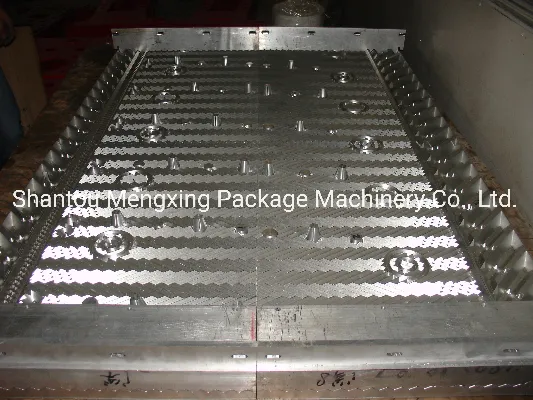

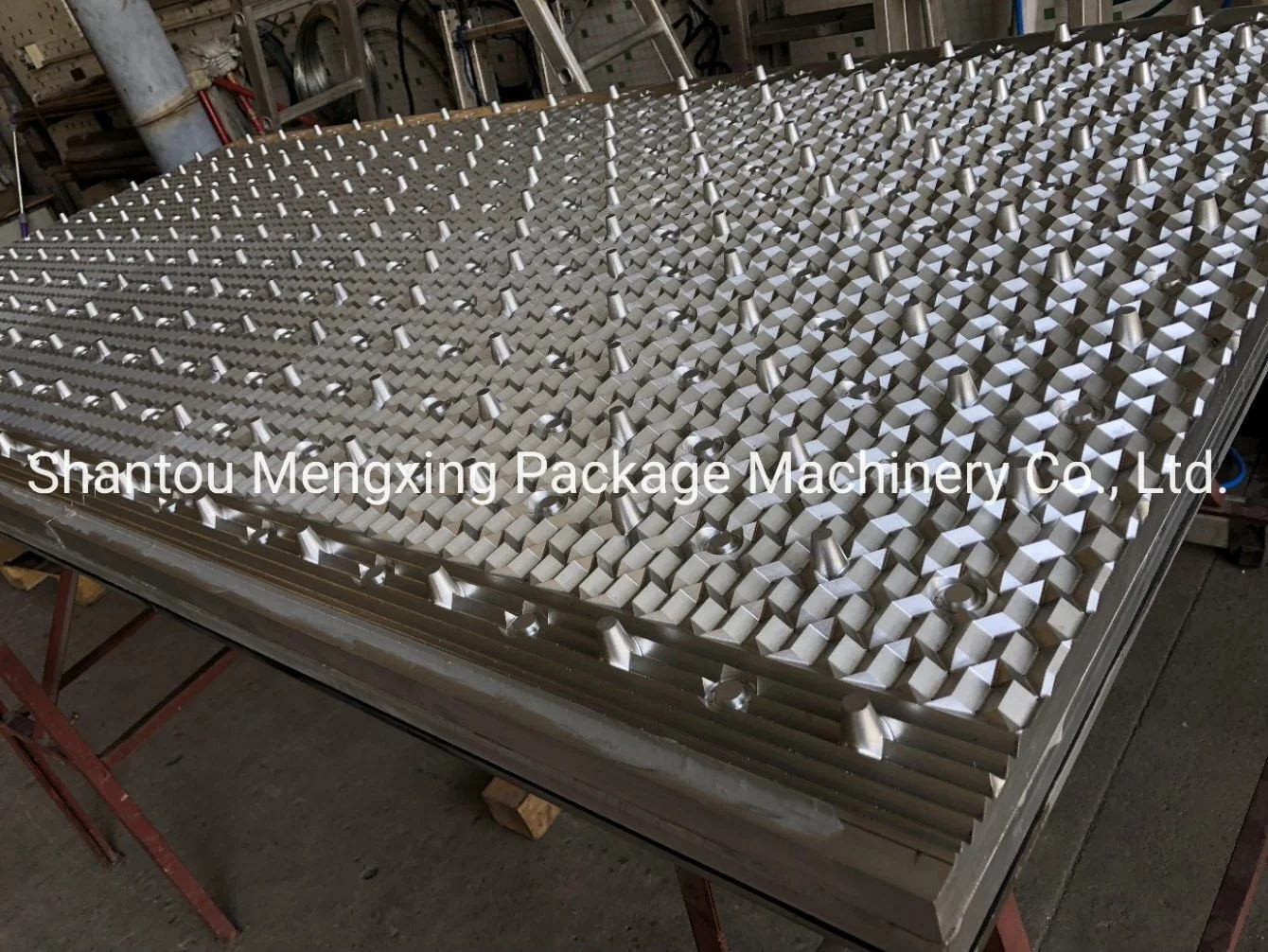

VII,Mold Pictures
![Cooling Tower Filler Making Machine]()
![Cooling Tower Filler Making Machine]()
VIII,Certifications
![Cooling Tower Filler Making Machine]()
IX,Workshop Pictures
![Cooling Tower Filler Making Machine]()
X,Package
![Cooling Tower Filler Making Machine]()
XI,Exhibition
![Cooling Tower Filler Making Machine]()
I,Usage
This vacuum forming machine is widely used for making vacuum formed products like cooling tower fills from PVC, PS, PP, EPS, PET, Bio-degradable material, APET, PETG and so on.
II,Operation Principle
Operation processes: The heated and soften plastic sheet are being vacuum formed in the mold in order to get the various finished products. The operation processes are: sheet-feeding-heated-forming-side trimming- crosscut.
III,Structure feature
01. The machine is combined with pneumatic , mechanical and electricity driving, adopt PLC control . It can achieve sheet feeding , heating , forming , side trimming , crosscut into continuous job .
All working action can adjust uder non-stop production . It's convenient and high capacity , easy for operation .
02. The working method can crosscut by different pattern of fill .
03. Servo motor feeding , feeding length stepless adjustabe , precision and reliable.
04. Cutting unit with servo motor driving , electrical & pneumatic adjustable by different length crosscut ( the length must be longer than each forming mold length ) .
05. Forming area is big and easy for mold installation & replace.
06. Cylinder roll sheet loading , feeding chain manual adjust.
07. Upper , lower mold stroke limited , up mold descend motor adjust.
08. Forming area double adjustable , can save the sheet material .
09. Back acting plate adopt double cylinder method , motor setting position .
10.Vacuum in two steps.
11. Fan blowing , air spray cooling device .
12. Heater adopt individual heating temperature control . ( Point to Point )
13. Advance sheet feeding , heating parameter can automatic adjust.
IV,Technical Parameters
| Parameter | XC100-130/125-BWF (mode No.) | |
| Suitable sheet width(mm) | 1000-1300 | |
| Sheet thickness(mm) | 0.3-1 | |
| Max.dia. of sheet roll (mm) | 600 | |
| Up mold stroke(mm) | 300 | |
| Down mold stroke(mm) | 250 | |
| Max. forming area(mm2) | 1200×1200 | |
| Max. forming height(mm) | 120 | |
| Max. forming depth(mm) | 100 | |
| Capacity (cycle/min) | 4-8 | |
| Product Shaping& Cooling | Air vent qty. | 7PCS |
| Air sprayer qty. | 16PCS | |
| Gas source (outlay) | Air supply (m3/min) | ≥3 |
| Pressure(MPa) | 0.8 | |
| Water consumption | 4-5 Cube/Hour | |
| Vacuum pump ( Outlay ) | Busch R5 0100 | |
| Power supply | 3-phase 4-wire 415V/ 220V 50Hz | |
| Heating power(Kw) | 59.4 | |
| Feeding motor power(Kw) | 3.0 | |
| Power of whole machine(Kw) | 68.6 | |
| Dimension(L×W×H)(mm) | 9600×3400×2500 | |
| Weight(Kgs) | 7500 | |
V,Technical configuration
| PLC | Taiwan Delta |
| Touch screen monitor ( 10.4″inch /Color ) | Taiwan Delta |
| Feeding motor(3.0kw) | Taiwan Delta |
| Heater with probe(1pcs) | Germany |
| Heater(99pcs) | China |
| Solid voltage regulator | China |
| Contactor | Germany Siemens |
| Thermo relay | Germany Siemens |
| Relay | Japan Omron |
| Vacuum pump(2 set) | Busch R5 0100 |
| Pneumatic component | Japan SMC |
| Cylinder | China |
| Air sprayer(8pcs) | Meiji |
| Fan blower(4×0.55 Kw ) | Manda |
VI,Sample Pictures
VII,Mold Pictures
VIII,Certifications
IX,Workshop Pictures
X,Package
XI,Exhibition
