3 Stations Pressure &Vaccum Forming Machine

Home  > 3 Stations Pressure &Vaccum Forming Machine  >

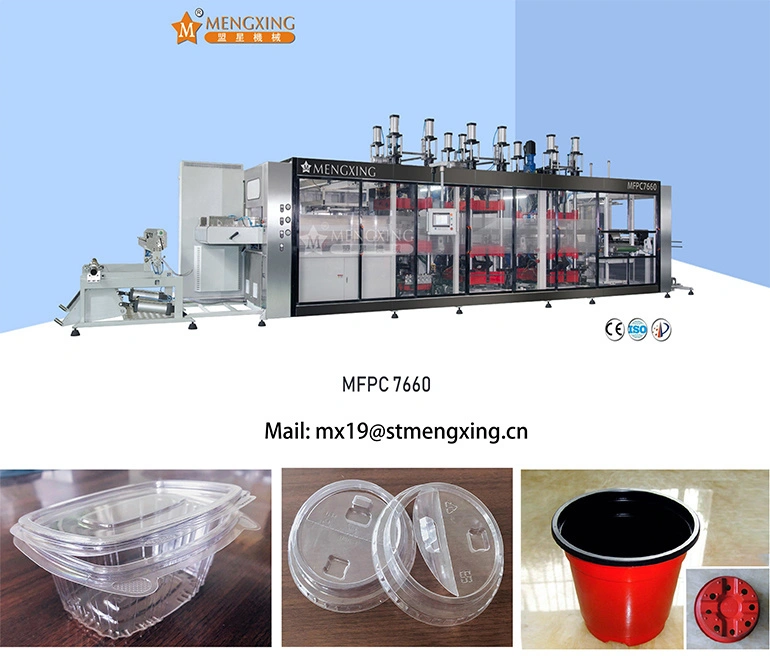

Vacuum Forming Device Fully Servo Driven Thermoforming Machine

这里可以自定义设置
Vacuum Forming Device Fully Servo Driven Thermoforming Machine
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障

Basic Info.

Model NO.
Thermoforming Machine
Origin
China
HS Code
84774090
Vacuum Forming Device Fully Servo Driven Thermoforming Machine
I,Usage
The machine is designed for producing various of open-wide plastic containers, such as food trays, plastic trays, cosmetic trays , blister , clamshells , plates and other plastic related items .

II,Suitable Sheet
PVC,PP,PS,OPS,PET,APET,PETG, CPET Etc

III,Structure Features
1. Mechanical, pneumatic and electrical combination, all working actions are controlled by PLC. Touch screen makes the operation convenient and easy.
2. Pressure And/Or Vacuum forming.
3. Up and down mold forming method.
4. Servo motor feeding, feeding length can be step-less adjusted. High speed and accurate.
5. Upper & lower heater, three sections heating
6. Heater with intellectual temperature control system, automatic supply the heating individual heater control. Fast heating(3 min from 0-400 degree), it won't be effected by outer voltage.
7. Forming and cutting unit mold open and close controlled by servo motor, products automatically count.
8. Data memorization function can store 120 set of running data.
9. Products can be chose stacked upward or downward.
10. Feeding width can be synchronously or independently adjusted in electrical way.
11. Heater will automatically push-out when the sheet is over.
12. Auto roll sheet loading, reduce the working load.

IV,Technical Parameter
ParameterMFC 7660(mode No.)
Sheet width (mm)500-800
Sheet thickness (mm)0.2-1.5
Max.dia.of sheet roll (mm)800
Forming mold stroke (mm)(Up ) 140,(down) 140
Mold cutting force(ton)45
Max.forming area (mm2)760×600
Min.forming area (mm2)500×460
Forming mold width (mm)500-760
Forming mold length (mm)460-600
Max.forming depth/height (mm)125 / 70
Cutting mold stroke(mm)up mold:80,
down mold:140
Max.cutting area (mm2)760×600
Cutting force(ton)45
Cycle (time/ min)Max.35
Product cooling methodBy water cooling
Air source(outer)Air supply(m3/ min)≥2
Pressure (MPa)0.8
Vacuum pumpBusch R5 0100
Power supply3 phase 4 line 380V50Hz
Heating power (Kw)120
Max.power of whole machine(Kw)150
Dimension (L×W×H) (mm)12540×3200×2530
Weight ( T )≈13

V,Technical Components
PLCTaiwan Delta
Touch Screen Monitor ( 10.4″inch /Color )Taiwan Delta
Feeding servo motor(4.5kw)Taiwan Delta
Forming up/down mold servo motor(4.5kw)Taiwan Delta
Cutting up/down mold servo motor(4.5kw/5.5kw)Taiwan Delta
Heater(222 pcs)Germany Elstein
ContactorGermany Siemens
Thermo RelayGermany Siemens
RelayGermany Weidmuller
Vacuum PumpGermany  Busch
Electronic pressure sensorTaiwan Delta
PneumaticJapan SMC
CylinderChina

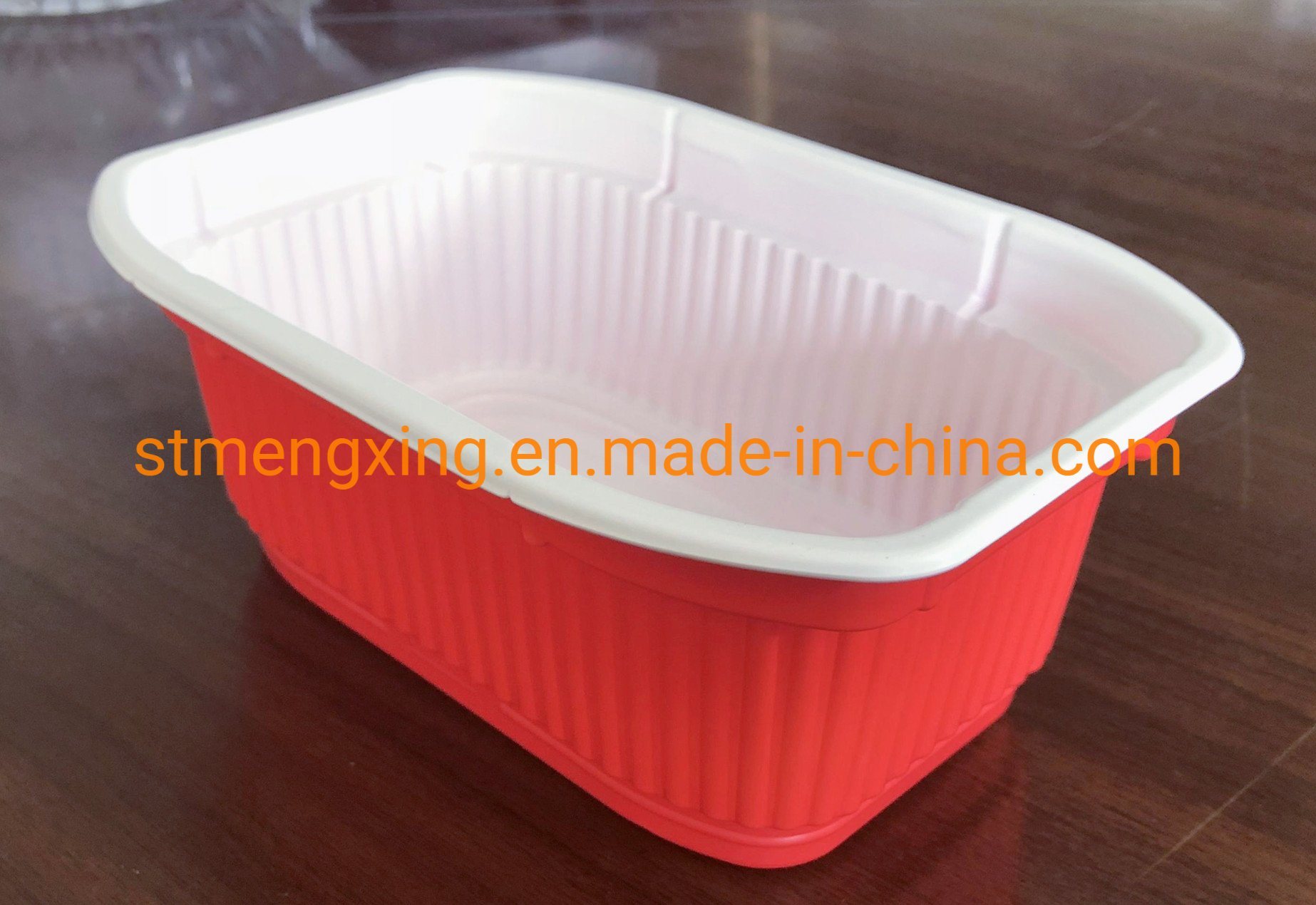

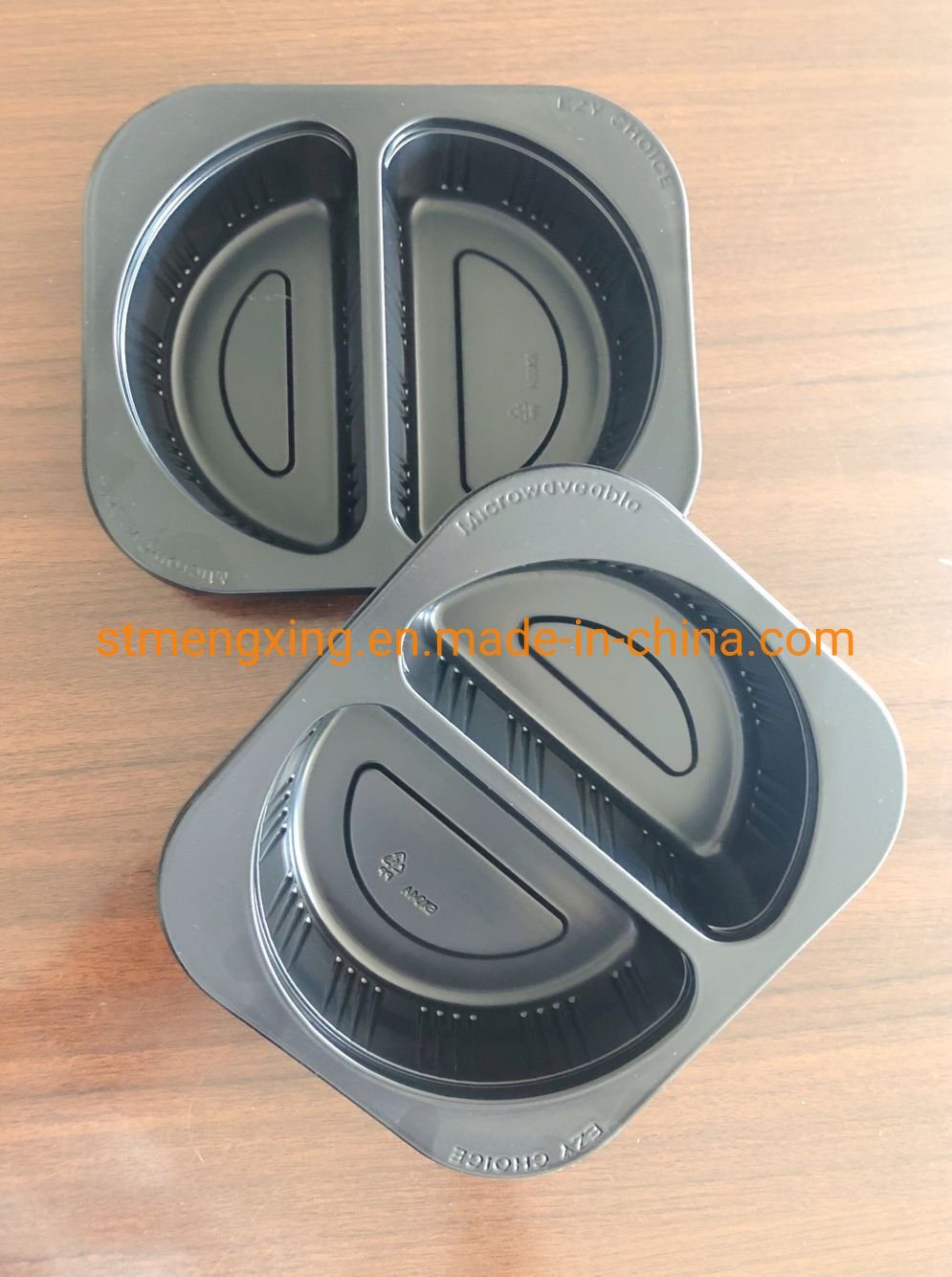

IV,Sample Pictures

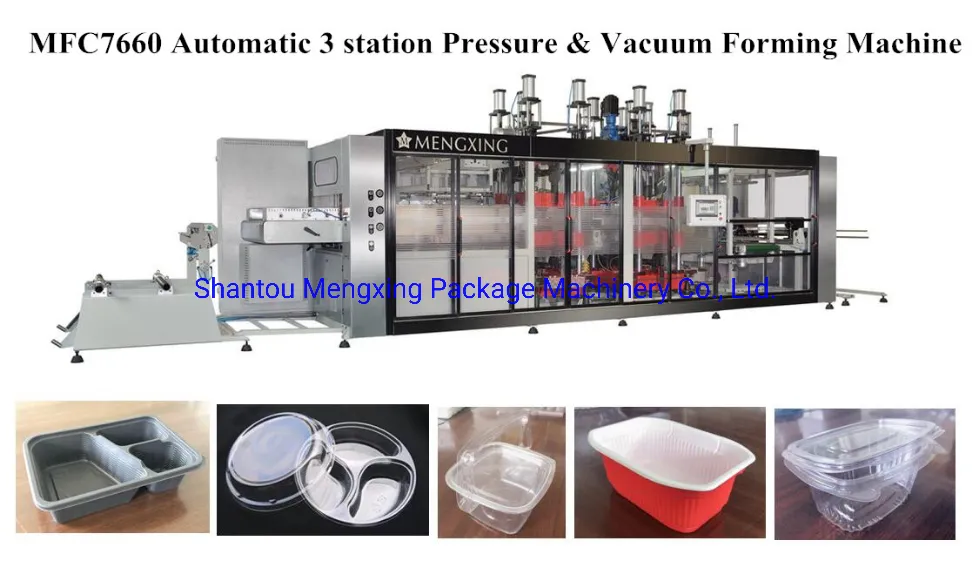

Vacuum Forming Device Fully Servo Driven Thermoforming Machine

VII,Certifications
Vacuum Forming Device Fully Servo Driven Thermoforming Machine

VIII,Workshop Pictures
Vacuum Forming Device Fully Servo Driven Thermoforming Machine


IX,Package


Vacuum Forming Device Fully Servo Driven Thermoforming Machine

X,Exhibition
Vacuum Forming Device Fully Servo Driven Thermoforming Machine


Less time and effort are needed to maintain this product over the years, therefore one can save energy and costs. It is multi-functional, which supports three kinds of working modes: forming, cutting, and stacking. The efficiency of the worker will increase because he can work accurately and faster with the assistance of this product. It is multi-functional, which supports three kinds of working modes: forming, cutting, and stacking.
