Automatic 3 Station Pressure Forming Machine (Mengxing QZC46-71/54A-CWF3)
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Basic Info.
Model NO.
QZC46-71/54A-CWF3
HS Code
8401200000
I,Usage
The machine is designed for producing various of open-wide plastic containers, such as food trays, plastic trays, cosmetic trays , blister , clamshells , plates and other plastic related items .
II,Suitable Sheet
PVC,PP,PS,OPS,PET,APET,PETG, CPET Etc
III,Structure Features
1. Mechanical, pneumatic and electrical combination, all working actions are controlled by PLC. Touch screen makes the operation convenient and easy.
2. Pressure And/Or Vacuum forming.
3. Up and down mold forming method.
4. Servo motor feeding, feeding length can be step-less adjusted. High speed and accurate.
5. Upper & lower heater, three sections heating
6. Heater with intellectual temperature control system, automatic supply the heating individual heater control. Fast heating(3 min from 0-400 degree), it won't be effected by outer voltage.
7. Forming and cutting unit mold open and close controlled by servo motor, products automatically count.
8. Data memorization function can store 120 set of running data.
9. Products can be chose stacked upward or downward.
10. Feeding width can be synchronously or independently adjusted in electrical way.
11. Heater will automatically push-out when the sheet is over.
12. Auto roll sheet loading, reduce the working load.
IV,Technical Parameter
| Parameter | MFC 7660(mode No.) | |
| Sheet width (mm) | 500-800 | |
| Sheet thickness (mm) | 0.2-1.5 | |
| Max.dia.of sheet roll (mm) | 800 | |
| Forming mold stroke (mm) | (Up ) 140,(down) 140 | |
| Mold cutting force(ton) | 45 | |
| Max.forming area (mm2) | 760×600 | |
| Min.forming area (mm2) | 500×460 | |
| Forming mold width (mm) | 500-760 | |
| Forming mold length (mm) | 460-600 | |
| Max.forming depth/height (mm) | 125 / 70 | |
| Cutting mold stroke(mm) | up mold:80, down mold:140 | |
| Max.cutting area (mm2) | 760×600 | |
| Cutting force(ton) | 45 | |
| Cycle (time/ min) | Max.35 | |
| Product cooling method | By water cooling | |
| Air source(outer) | Air supply(m3/ min) | ≥2 |
| Pressure (MPa) | 0.8 | |
| Vacuum pump | Busch R5 0100 | |
| Power supply | 3 phase 4 line 380V50Hz | |
| Heating power (Kw) | 120 | |
| Max.power of whole machine(Kw) | 150 | |
| Dimension (L×W×H) (mm) | 12540×3200×2530 | |
| Weight ( T ) | ≈13 | |
V,Technical Components
| PLC | Taiwan Delta |
| Touch Screen Monitor ( 10.4″inch /Color ) | Taiwan Delta |
| Feeding servo motor(4.5kw) | Taiwan Delta |
| Forming up/down mold servo motor(4.5kw) | Taiwan Delta |
| Cutting up/down mold servo motor(4.5kw/5.5kw) | Taiwan Delta |
| Heater(222 pcs) | Germany Elstein |
| Contactor | Germany Siemens |
| Thermo Relay | Germany Siemens |
| Relay | Germany Weidmuller |
| Vacuum Pump | Germany Busch |
| Electronic pressure sensor | Taiwan Delta |
| Pneumatic | Japan SMC |
| Cylinder | China |

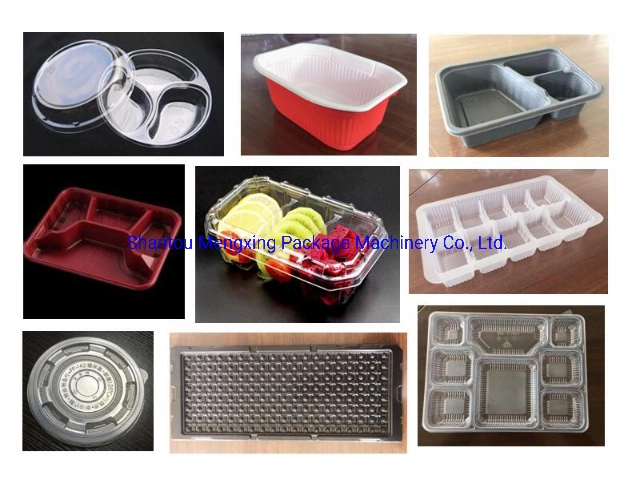

IV,Sample Pictures

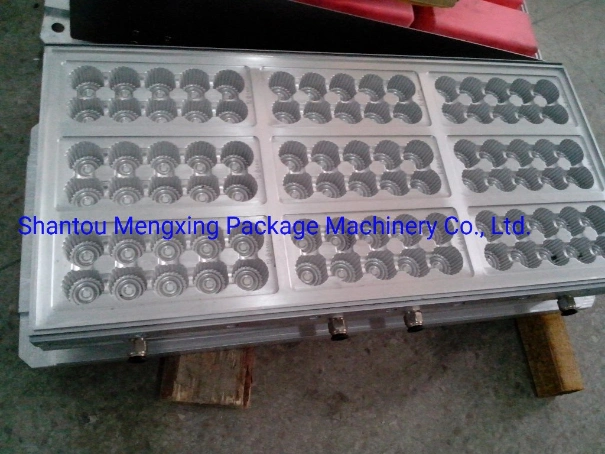

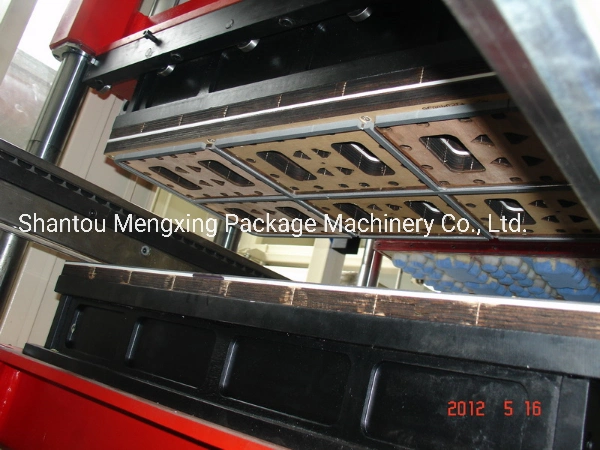

VII,Picture of mold
VIII,Certifications
IX,Workshop Pictures
X,Package
XI,Exhibition
This product would be a valuable asset for every investor because it is going to make any task an easy job. The movement guide column of the product ensures the items are stacked neatly.
The product is easy for people to control and only needs a little workforce. This will help lower operating costs. The movement guide column of the product ensures the items are stacked neatly.
