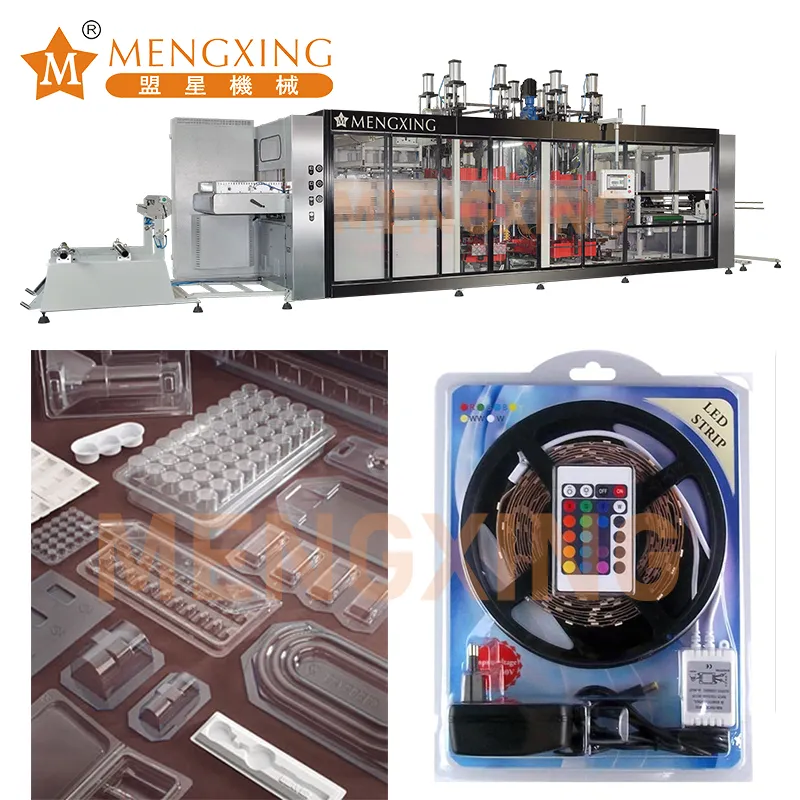

Servo Type Multi-Stations Pressure Vacuum Forming Machine Plastic Products Package Blister Machine Cutting Function Thermoforming Machine-Mengxing

Basic Info.

Model NO.

Thermoforming Machine

Origin

China

HS Code

84774090

Servo Type Multi-Stations Pressure Vacuum Forming Machine Plastic Products Package Blister Machine Cutting Function Thermoforming Machine

Usage:
The machine is designed for producing various of open-wide plastic containers, such as food trays, plastic trays, cosmetic trays , blister , clamshells , plates and other plastic related items .
Suitable Sheet:
PVC,PP,PS,OPS,PET,APET,PETG, CPET Etc
Structure Features:
1. Mechanical, pneumatic and electrical combination, all working actions are controlled by PLC. Touch screen makes the operation convenient and easy.
2. Pressure And/Or Vacuum forming.
3. Up and down mold forming method.
4. Servo motor feeding, feeding length can be step-less adjusted. High speed and accurate.
5. Upper & lower heater, three sections heating
6. Heater with intellectual temperature control system, automatic supply the heating individual heater control. Fast heating(3 min from 0-400 degree), it won't be effected by outer voltage.
7. Forming,Punching,cutting unit mold open and close controlled by servo motor, products automatically count.
8. Data memorization function can store 120 set of running data.
9. Products stacked downward.
10. Feeding width can be synchronously or independently adjusted in electrical way.
11. Heater will automatically push-out when the sheet is over heated.
12. Auto roll sheet loading, Quick mold change system, reduce the working load.

Technical Parameter:

Sheet width (mm)		500-800
Sheet thickness (mm)		0.1-1.5
Max roll sheet diameter (mm)		800
Forming mold stroke (mm)		(Up ) 140,(down) 140
Mold clamping force/Punching force(ton)		45
Max forming area (mm²)		760×600
Min forming area (mm²)		500×330
Forming mold width (mm)		500-760
Forming mold length (mm)		460-600
Max forming depth/height (mm)		120/ 70
Cutting mold stroke(mm)		(up)80,(down)140
Max cutting area (mm²)		760×600
Cutting force(ton)		60
Cycle (time/ min)		Max30
Cooling		Water cooling
Air supply	volume (m³/ min)	≥2
	Air pressure (MPa)	0.8
Vacuum pump		Busch R5 0100
Power supply		3 phase 4 line 380V50Hz
Heater power (kw)		120
Max general power (kw)		160
Dimension (L×W×H) (mm)		14000×3300×3500
Weight ( T )		≈18

Technical Components:

PLC	Taiwan Delta
Touch Screen Monitor ( 10.4″inch /Color )	Taiwan Delta
Feeding servo motor(5kw)	Taiwan Delta
Forming up/down mold servo motor(4.5kw)	Taiwan Delta
Punching up/down mold servo motor(4.5kw)	Taiwan Delta
Cutting up/down mold servo motor(5+4.5kw/4.5kw)	Taiwan Delta
Heater(196 pcs)	Germany Elstein
Contactor	Germany Siemens
Thermo Relay	Germany Siemens
Relay	Germany Weidmuller
Vacuum Pump	Germany Busch
Electronic pressure sensor	Taiwan Delta
Pneumatic	JAPAN SMC
Cylinder	JAPAN SMC & Taiwan Airtac

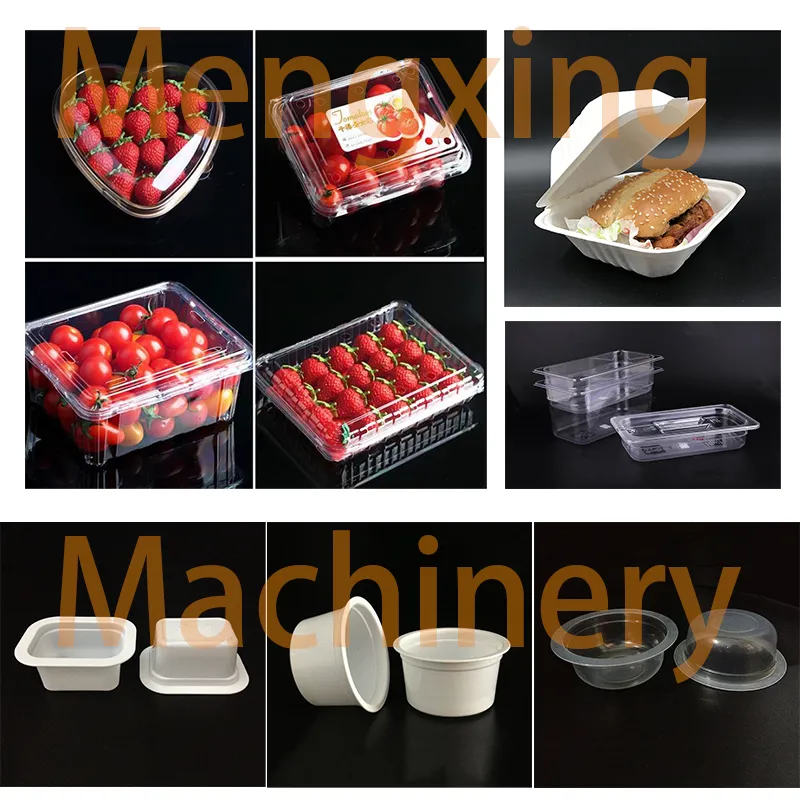

VI,Sample Pictures

VII,Certifications

VIII,Workshop Pictures

IX,Package

Servo Type Multi-Stations Pressure Vacuum Forming Machine Plastic Products Package Blister Machine Cutting Function Thermoforming Machine

Servo Type Multi-Stations Pressure Vacuum Forming Machine Plastic Products Package Blister Machine Cutting Function Thermoforming Machine

X,Exhibition
Servo Type Multi-Stations Pressure Vacuum Forming Machine Plastic Products Package Blister Machine Cutting Function Thermoforming Machine

It is estimated that the product has a long service life in the market. Mainly made of stainless steel, the machine won't rust easily. The success of Shantou Mengxing Package Machinery Co.,Ltd. hinges on our outstanding team of vacuum forming machine designers and manufacturing engineers. Mainly made of stainless steel, the machine won't rust easily.
