Basic Info.
Model NO.
Vacuum Forming Machine

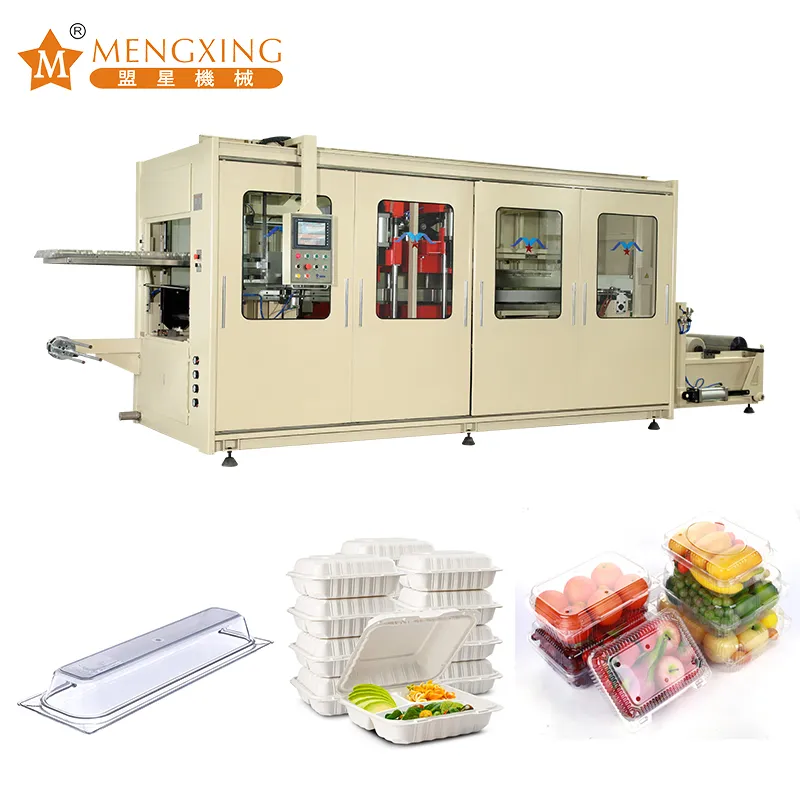

Plastic Disposable Products Thermoforming Machine Stack Fuction Emballage Mold Plastic Fruit Vegetale Container Vacuum Forming Machine
Usage:

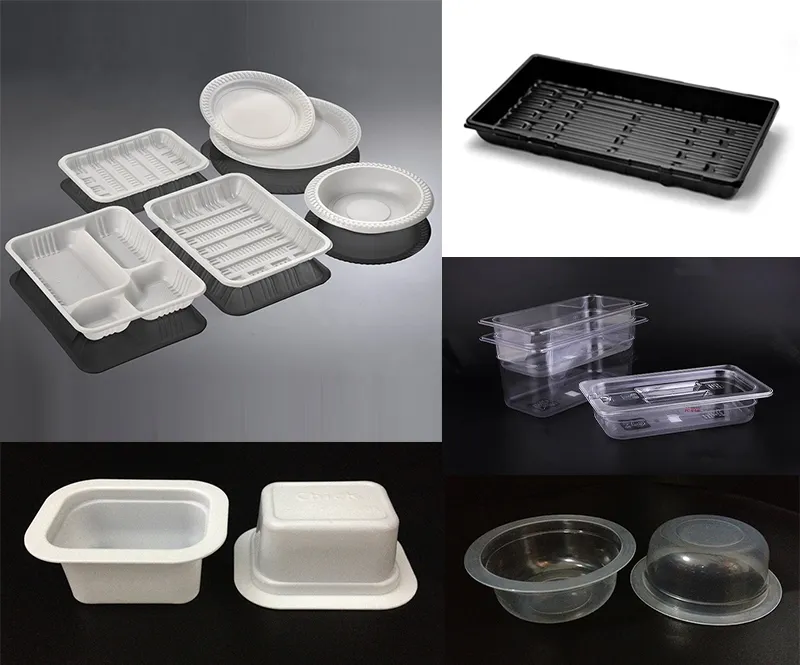

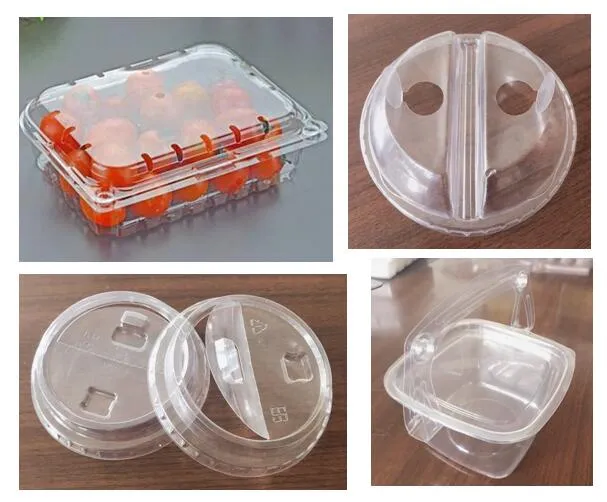

The machine is suitable for making all size packing containers ,in open-type with thin-wall ,by using roll-sheet , under high-speed vacuum suction-forming processing .The products out of this machine can be used for the package of foods .native-products,tourist-goods,textile,medical, toy,cosmetic,electrical elements and daily used hard-ware ,etc .
Sheet fit to the machine
Starch-deposit sheets ,light-deposit sheet ,environment sheet APET ,PETG .Color sheets :PVC,HIPS,PET,PS,PP, CPET,EPS, etc.Fiber-coating-sheet.
Feature Function :
1. Mechanical , Pneumatic and Electrical Combination . All working action is controlled by PLC . Touch Screen Input , easy and convenient .
2. Three Working Position : Forming / Cutting / Stacking .
3. Pressure / Negative Forming assist with Plug
4. Upper or Lower Mold Forming Method.
5. Servo Motor Feeding , Feeding Length Stepless Adjust , High Speed and Accurate .
6. Upper heater with 3 sections heating, under heater with 2 sections heating.
7. Heater with Intellectual Temperature Control System , automatic supply the heating, Individual Heater Control , Touch Screen Digital Input , Mini-adjust & Precision and Accurate , Fast Heating ( Only 3 min from 0-400 degree ) . Stable and Reliable .It won't effect by outer voltage , lower power consumption , longer life of far infrared ceramic heater .
8. Servo Motor Stacking , Finished Production Accounting .
9. All production data and technical parameter store and recall function .
10. Edge Automatic trimming .
11. Feeding China Width separate adjust or Motor adjust .
12. Heater automatic push-out function .
13. Auto Roll Sheet Loading , Reduce the Working labor. Technical Components| PLC | Taiwan Delta |
| Touch Screen Monitor ( 10.4″inch /Color ) | Taiwan Delta |
| Feeding Servo Motor(3.0kw) | Taiwan Delta |
| Stacking Servo Motor (2kw) | Taiwan Delta |
| Heater (132PCS ) Heater | GERMANY Elstein |
| Solid State Relay (132 PCS ) | CHINA |
| Contactor | Germany Siemens |
| Thermo Relay | Germany Siemens |
| Relay | Germany Weidmuller |
| Vacuum Pump | Busch R5 0040 |
| Pneumatic | JAPAN SMC |
| Cylinder | CHINA |
| Sheet Width (mm) | 460-710 |
| Sheet Thickness (mm) | 0.2-1.8 |
| Max Roll Sheet (mm) | 600 |
| Forming Mold Stroke (mm) | 2×155 |
| Cutting Mold Stroke (mm) | 155 |
| Cutting Base Stroke (mm) | Max 100 |
| Max Forming Area (mm2) | 670×540 |
| Max Forming Depth / Height (mm) | 80/50 |
| Max Cutting Force(kgf) | 30000 |
| Working Capacity ( Cycle / min) | 4-18 ( Max capacity is 18 Cycle/ Per Min ) |
| Forming Cooling | Water Cooling |
| Air Source | Air (m3/ min) | ≥5 |
| Air Pressure (MPa) | 0.8 |
| Vacuum Pump | Busch R5 0040 |
| Power | 3 Phase 4 Line 380V50Hz |
| Heater (kw) | 68.4 |
| Max Power (kw) | 78 |
| Max Dimension (L×W×H) (mm) | 9480×3030×2430 |
| Max Weight (kg) | ≈8500 |
