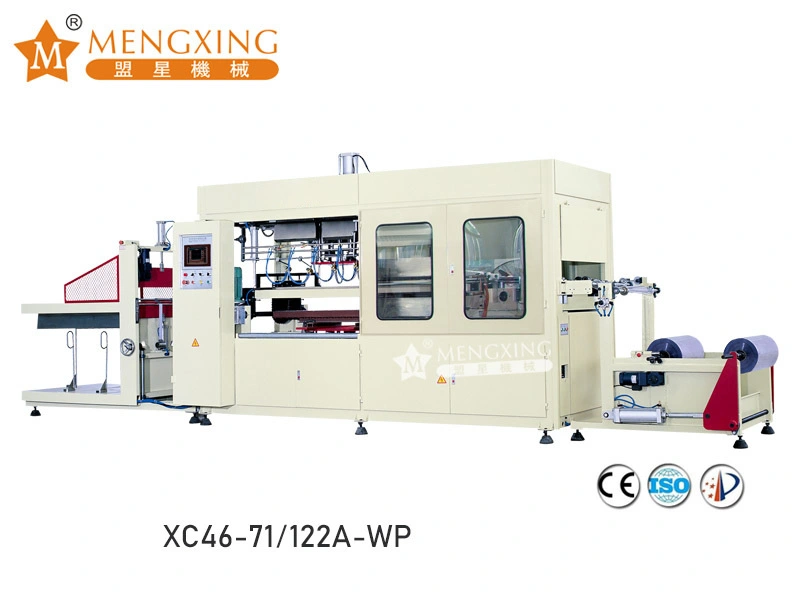

    XC46-71/122A-WP Automatic High-speed Vacuum Forming Machine

    Usage

    This machine is mainly adapted to a variety of plastic reel sheet vacuum forming various open thin-walled containers for food, souvenirs, travel goods, textiles, decorations, cosmetics, medical supplies, in medicine, children toys, electrical and electronic components, hardware and other goods producing all kinds of packaging products.

    Product Sample Pictures

    Mengxing vacuum forming machine automatic operation  XC46-71/122A-WP 3
    Food container picture
    Mengxing vacuum forming machine automatic operation  XC46-71/122A-WP 4
    Container sample
    Mengxing vacuum forming machine automatic operation  XC46-71/122A-WP 5
    Tray samples
    Mengxing vacuum forming machine automatic operation  XC46-71/122A-WP 6
    Lunch box sample picture

    Available sheet

    1. Starch degradation sheet

    2. Optical degradation sheet

    3. Green sheet: APET, PETG

    4. Various colors sheet: PVC, HIPS, PET, PS, PP, EPS, etc.

    Feature

    1. Mechanical, pneumatic and electrical integration. Each action program controlled by the PLC. Touch-screen operation, simple and convenient.

    2. Frequency sheet feeding, stepless adjustment of length, speed accuracy and stability. (Max. Speed ​​1000mm /s)

    3. Automatically compensates for temperature control system using intelligent control, fast heating (from 0-400 degrees takes 5 minutes), stable (without external voltage impact, temperature fluctuations of not more than 1 degree), low energy consumption (15% saving), fever long life and other advantages of brick.

    4. Electric furnace with a bias structure, when the sheet width of less than 580mm, closed electric furnace heat tiles while the entire row can reduce energy consumption by 16%.

    5. Furnaces partition using gear switch (divided into ten stalls), a control of a regulator, easy to adjust the temperature uniformity, easy to use, simple.

    6. Early feeding with the heating time automatic memory function, since the first edition of the machine can enter the normal working condition.

    7. Vacuum in two steps,forming mold adjusted twice,shock release, delay vacuum

    8. Two directions adjustable up and down stroke, in which the mold clamping direction electric adjustment, can be adjusted in the mold on the state (and lower) mold height position, and convenient.

    9. Electric gate position after adjustment.

    10. Under the direction of the mold clamping readily into the buffer, to improve the speed of the mold, to avoid shock.

    11. Upper and lower die sets bushing using mosaic solid lubricating bearings, so that the upper and lower mold under smooth and accurate movement on stage, will help improve the quality of products.

    12. Automatic electric furnace removed device is disconnected in the middle of the sheet can be produced at any time without stopping and starting, do not waste sheets.

    13. Mechanical reel device, reduce labor intensity.

    14. Double action cutting mechanism plywood, electric slicing methods to meet overcast, sub-version of the male die cutting products of any shape.

    15. Movement Guide column, so that products stack neatly.

    Product Details

    Mechanical, pneumatic and electrical integration. Each action program controlled by the PLC. Touch-screen operation, simple and convenient.

    Technical Parameter

    Parameter

    XC46-71/122A-WP(mode No.)

    Available sheet width (mm)

    460-710

    Available sheet thickness (mm)

    0.1-1.2

    Max.dia.of sheet roll (mm)

    600

    Up mold stroke (mm)

    400

    Down mold stroke (mm)

    300

    Max. forming area (mm2)

    680 × 1200

    Max. forming height (mm)

    200(male mold)

    Max. forming height (mm)

    150(female mold)

    Capacity (times / min)

    4-10

    Product Shaping&Cooling

    Air vent qty.

    4pcs

    Spray nozzle qty.

    8pcs

    Air supply (m3/min)

    ≥ 2

    Pressure (MPa)

    0.8

    Water consumption

    4-5 Cube / Hour

    Vacuum pump (external)

    Busch R5 0100

    Power supply

    3-phase  4-wire  380V / 220V 50Hz

    Heating power(Kw)

    54

    Max. power of whole machine (Kw)

    61.23

    Dimensions (L × W × H)(mm)

    8070 × 1656 × 2425

    Weight of whole machine (Kgs)

    4700

    Technical Configuration

    HMI 5.7 inches color

    Taiwan Delta

    PLC 48

    Taiwan Delta

    Inverter 2.2Kw

    Taiwan Delta

    Encoder 1024

    Taiwan Delta

    Vacuum pump

    Busch

    Cylinder (upper and lower molds adopt thick-rod cylinder)

    Zhicheng

    Pneumatic component

    Korea Sanwo

    Adjustable spray gun

    Meiji

    Fan

    Manda

    AC contactor

    Germany Siemens

    Heating relay

    Germany Siemens

    Relay

    Omron

    Pulsed solid-state relay

    joint venture brand

    Heating furnance

    120 pcs of far infrared ceramic heaters,up&down heating furnances,  zoning one-one control(120zones)
