Full-auto cooling tower filler forming machine XC100-130/125-BWF

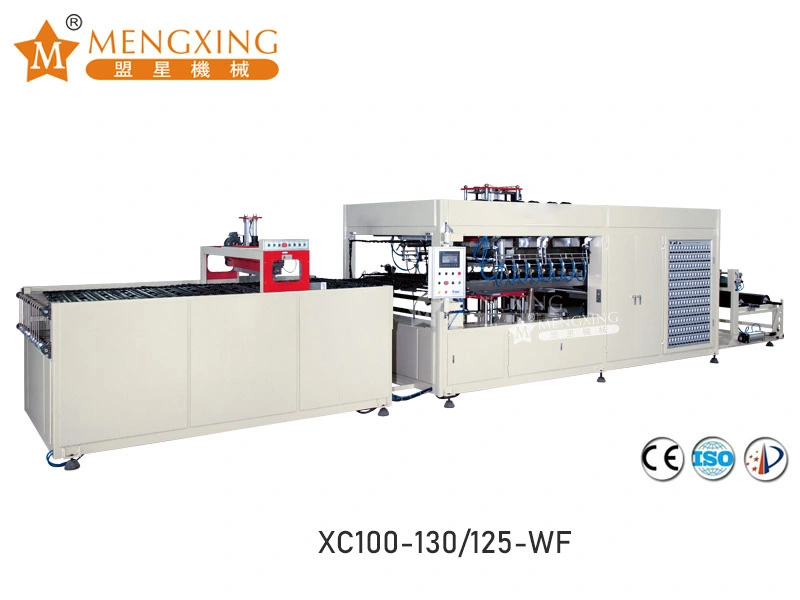

XC100-130/125-WF Full-auto Cooling Tower Filler Forming Machine
Usage
This vacuum forming machine is widely used for making vacuum formed products like cooling tower fills from PVC, PS, PP, EPS, PET, Bio-degradable material, APET, PETG and so on.
Operation Principle
Operation processes: The heated and soften plastic sheet are being vacuum formed in the mold in order to get the various finished products. The operation processes are: sheet-feeding—heated—forming—side trimming— crosscut.
Product Sample Pictures
Structure feature
01. The machine is combined with pneumatic , mechanical and electricity driving, adopt PLC control . It can achieve sheet feeding , heating , forming , side trimming , crosscut into continuous job .
All working action can adjust uder non-stop production . It’s convenient and high capacity , easy for operation .
02. The working method can crosscut by different pattern of fill .
03. Servo motor feeding , feeding length stepless adjustabe , precision and reliable.
04. Cutting unit with servo motor driving , electrical & pneumatic adjustable by different length crosscut ( the length must be longer than each forming mold length ) .
05. Forming area is big and easy for mold installation & replace.
06. Cylinder roll sheet loading , feeding chain manual adjust.
07. Upper , lower mold stroke limited , up mold descend motor adjust.
08. Forming area double adjustable , can save the sheet material .
09. Back acting plate adopt double cylinder method , motor setting position .
10. Vacuum in two steps.
11. Fan blowing , air spray cooling device .
12. Heater adopt individual heating temperature control . ( Point to Point )
13. Advance sheet feeding , heating parameter can automatic adjust.
Product Details
The machine is combined with pneumatic , mechanical and electricity driving, adopt PLC control . It can achieve sheet feeding , heating , forming , side trimming , crosscut into continuous job.
Technical Parameter
Parameter | XC100-130/125-BWF (mode No.) | |
Suitable sheet width(mm) | 1000-1300 | |
Sheet thickness(mm) | 0.3-1 | |
Max.dia. of sheet roll (mm) | 600 | |
Up mold stroke(mm) | 300 | |
Down mold stroke(mm) | 250 | |
Max. forming area(mm2) | 1200×1200 | |
Max. forming height(mm) | 120 | |
Max. forming depth(mm) | 100 | |
Capacity (cycle/min) | 4-8 | |
Product Shaping& Cooling | Air vent qty. | 7PCS |
Air sprayer qty. | 16PCS | |
Gas source (outlay) | Air supply (m3/min) | ≥3 |
Pressure(MPa) | 0.8 | |
Water consumption | 4-5 Cube/Hour | |
Vacuum pump ( Outlay ) | Busch R5 0100 | |
Power supply | 3-phase 4-wire 415V/ 220V 50Hz | |
Heating power(Kw) | 59.4 | |
Feeding motor power(Kw) | 3.0 | |
Power of whole machine(Kw) | 68.6 | |
Dimension(L×W×H)(mm) | 9600×3400×2500 | |
Weight(Kgs) | 7500 | |
Technical Configuration
PLC | Taiwan Delta |
Touch screen monitor ( 10.4"inch /Color ) | Taiwan Delta |
Feeding motor（3.0kw） | Taiwan Delta |
Heater with probe(1pcs) | Germany |
Heater(99pcs) | China |
Solid voltage regulator | China |
Contactor | Germany Siemens |
Thermo relay | Germany Siemens |
Relay | Japan Omron |
Vacuum pump(2 set) | Busch R5 0100 |
Pneumatic component | Japan SMC |
Cylinder | China |
Air sprayer(8pcs) | Meiji |
Fan blower(4×0.55 Kw ) | Manda |
