Model NO.
QZC46-71/54-CWF3

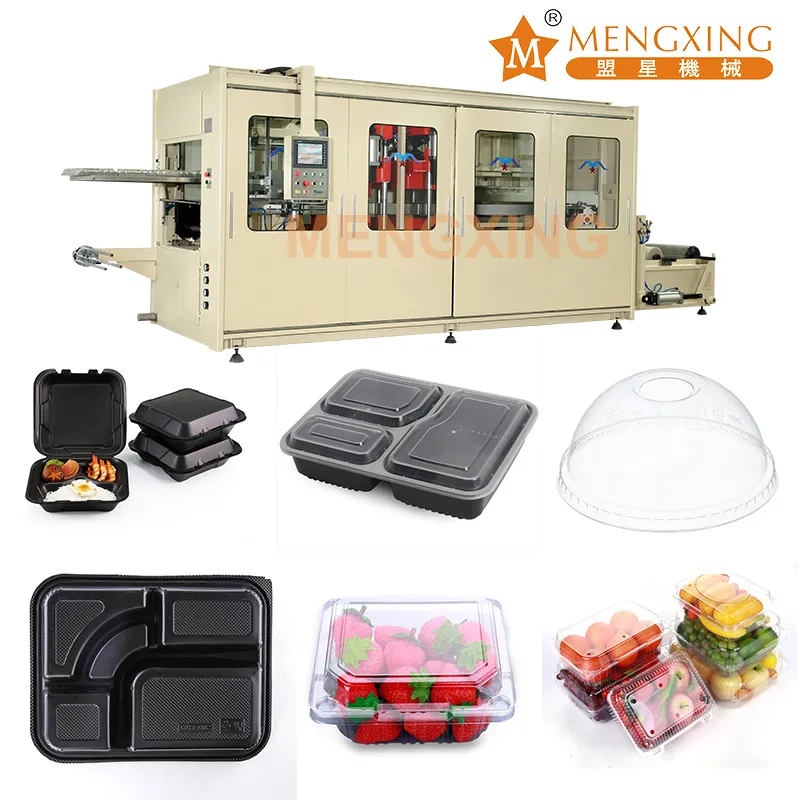

Machinery Manufacturer Ice Cream Container Plastic Making Machine Food Grade PP Thermoforming Machine
I,Usage
The machine is suitable for making all size packing containers ,in open-type with thin-wall ,by using roll-sheet , under high-speed vacuum suction-forming processing .The products out of this machine can be used for the package of foods .native-products,tourist-goods,textile,medical, toy,cosmetic,electrical elements and daily used hard-ware ,etc .
Sheet fit to the machine
Starch-deposit sheets ,light-deposit sheet ,environment sheet APET ,PETG.
Color sheets :PVC,HIPS,PET,PS,PP, CPET,EPS, etc.,fFiber-coating-sheet.
II,Feature Function
1. Mechanical , Pneumatic and Electrical Combination . All working action is controlled by PLC . Touch Screen Input , easy and convenient .
2. Three Working Position : Forming / Cutting / Stacking .
3. Pressure / Negative Forming assist with Plug
4. Upper or Lower Mold Forming Method
5. Servo Motor Feeding , Feeding Length Stepless Adjust , High Speed and Accurate .
6. Upper Heater , Four Section Heating .
7. Heater with Intellectual Temperature Control System , automatic supply the heating, Individual Heater Control , Touch Screen Digital Input , Mini-adjust & Precision and Accurate , Fast Heating ( Only 3 min from 0-400 degree ) . Stable and Reliable .It won't effect by outer voltage , lower power consumption , longer life of far infrared ceramic heater .
8. Servo Motor Stacking , Finished Production Accounting .
9. All production data and technical parameter store and recall function .
10. Edge Automatic trimming .
11. Feeding China Width separate adjust or Motor adjust .
12. Heater automatic push-out function .
13. Auto Roll Sheet Loading , Reduce the Working labor.
III,Technical parameters| Parameter | QZC46-71/54-CWF3(mode No.) |
| Sheet width (mm) | 460-710 |
| Sheet thickness (mm) | 0.2-1.5 |
| Max.dia.of Sheet roll (mm) | 600 |
| Forming mold stroke (mm) | 2×155 |
| Cutting mold stroke (mm) | 155 |
| Cutting base stroke (mm) | Max. 100 |
| Max. forming area (mm2) | 670×540 |
| Max. forming depth / height (mm) | 80/50 |
| Max. cutting force(kgf) | 30000 |
| Capacity ( Cycle / min) | 4-18
( Max. capacity is 18 cycle/ min.) |
| Forming cooling | Water Cooling |
| Air source | Air supply(m3/ min) | ≥5 |
| Pressure (MPa) | 0.8 |
| Vacuum pump | Busch R5 0040 |
| Power supply | 3 Phase 4 Line 380V50Hz |
| Heating power (Kw) | 44.2 |
| Max. power of whole machine(Kw) | 50.42 |
| Dimension (L×W×H) (mm) | 9400×3030×2430 |
| Weight of whole machine(Kgs) | ≈9000 |
| PLC | Taiwan Delta |
| Touch screen monitor ( 10.4″inch /Color ) | Taiwan Delta |
| Feeding servo motor(3.0kw) | Taiwan Delta |
| Stacking servo motor (1.5kw) | Taiwan Delta |
| Heater (78PCS ) | Germany |
| Solid state relay (78 PCS ) | China |
| Contactor | Germany Siemens |
| Thermo relay | Germany Siemens |
| Relay | Germany Weidmuller |
| Vacuum pump | Busch R5 0040 |
| Pneumatic | Japan SMC |
| Cylinder | China |

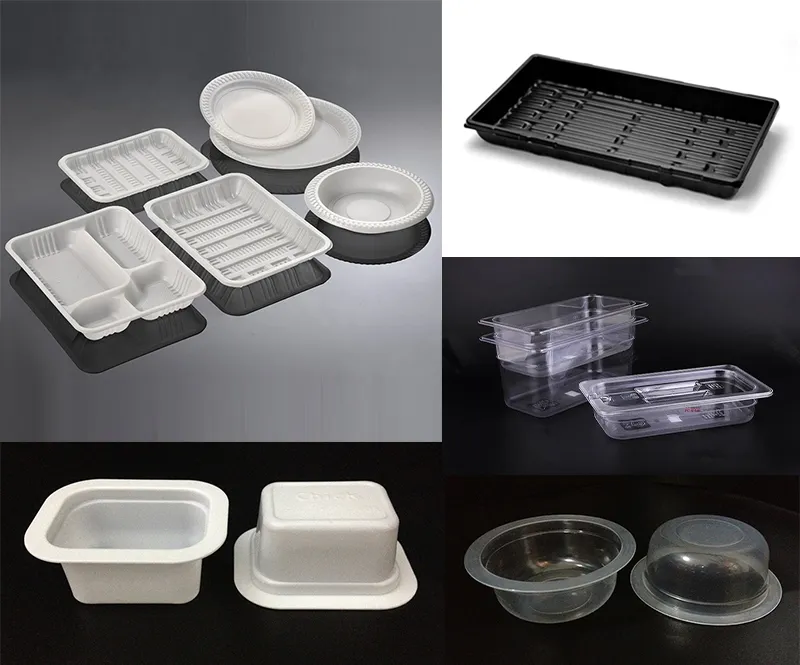

V,Sample Pictures
