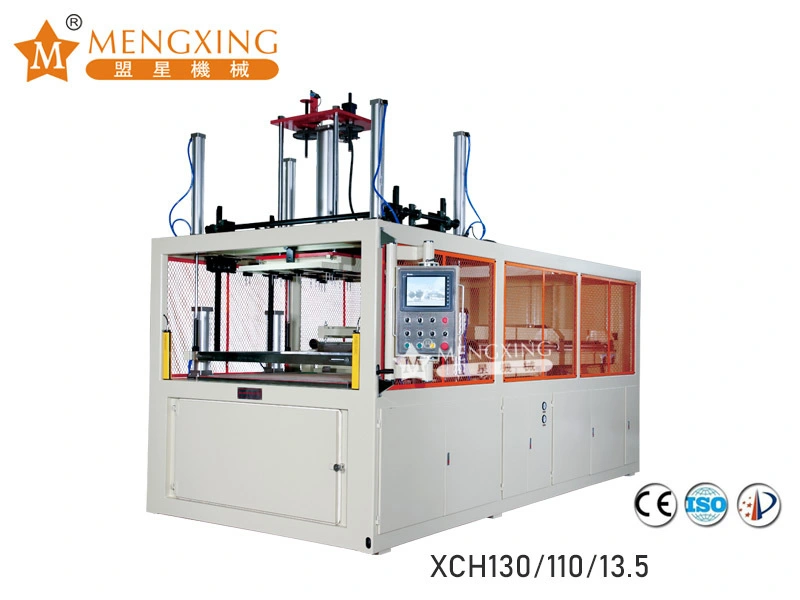

XCH130/110/13.5 Thick Plastic Molding Machine
Pallet
￣￣ Work principle
Using the thermoplastic sheet is heated and softened in the mold for vacuum molding, become necessary products. Their work is the clip - heating - forming – products.
Feature
01. Mechanical, pneumatic, electrical integration. Each action program controlled by the PLC. Touch-screen operation, simple and convenient.
02. Loading easier, less scrap molding material savings.
03. Heater motor, frequency control, high-speed accurate and stable.
04. Electric furnace temperature control system is fully computerized intelligent automatic compensation control, partitioning a controlled man-machine interface of a digital input, with high precision fine-tuning, temperature uniformity, fast heating (just five minutes from 0-400 degrees), stable ( influence from external voltage, temperature fluctuations of not more than 1 degree), low energy consumption (saving about 15%), long life plate stove, electric bricks etc. automatically detected.
05. Suitable convex molding, molding height, stable product quality.
06. The mold seat with electric limit adjustment, adjust quickly and easily.
07. Device is equipped with air-cooling system that allows products to cool faster and better styling.
08. Production counts, or can be set to automatically shut down ahead of the police, with file memory function, can store up to 230 product parameter data
09. The die table using mosaic lubricated bearings, freedom of movement and accurate.
10. Die clip structure movements and synchronized by the rack and pinion structure linkage, the lifting synchronization, extending cylinder life
11. Operating side using safety grating devices to ensure the safety of the operator misuse.
Product Sample Pictures
Product Details
Mechanical, pneumatic, electrical integration. Each action program controlled by the PLC. Touch-screen operation, simple and convenient.
Technical Parameter
Parameter | XCH130/110/13.5(mode No.) | |
Max. forming area (mm2) | 1300mm*1100mm | |
Min.forming area (mm2) | 1200mm * 1000mm | |
Sheet specifications (Max.) | 1370mm * 1170mm | |
Thickness of sheet applied | 0.8-3mm | |
Max. molding height | 135mm | |
Capacity | 1-3 (times/min) | |
Gas source | Air consumption (m3/min) | ≥ 2 |
Pressure | 0.6Mpa(inlet 0.8-1Mpa) | |
Vacuum pump (Outlay) | Busch R5 0100 | |
Power | three-phase four-wire 380V / 220V 50Hz | |
General power | 64KW | |
Dimensions ( L × W × H) (mm) | 4200 * 2410 * 2900 | |
Total weight (Kgs) | 4000 | |
Technical Configuration
Programmable logic controller (PLC) | Taiwan Delta |
Touch screen monitor (10.4 "inch / Color) | Taiwan Delta |
Inverter | Taiwan Delta |
Feeding motor | China |
Heater（99pcs） | China |
Solid state relay AC contactor | Germany Siemens |
Thermo relay | Japan Omron |
Vacuum pump | Busch R5 0100 |
pneumatic components | South Korea |
Cylinder | China |
Fan blower | China |
Package
