Basic Info.

Model NO.
Vacuum Forming Machine
HS Code
84774090
Greenhouse Accessories Seed Tray Vacuum Forming Machine



Greenhouse Accessories Seed Tray Vacuum Forming Machine
Greenhouse Accessories Seed Tray Vacuum Forming Machine

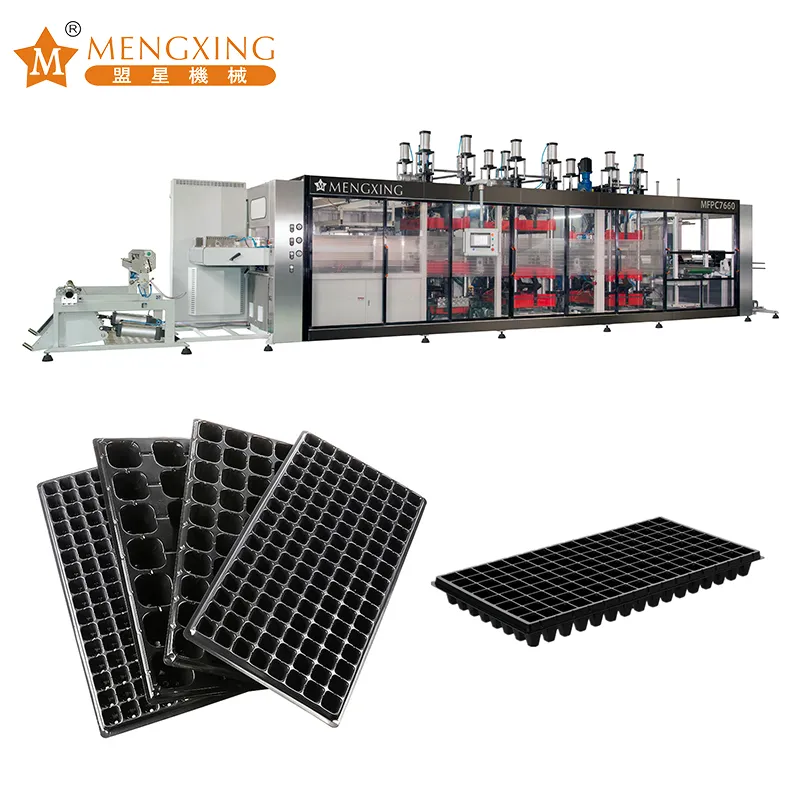

MFC7660 3 Stations Pressure & Vacuum Forming Machine

I,Usage

The machine is designed for producing various of open-wide plastic containers, such as food trays, plastic trays, cosmetic trays , blister , clamshells , plates and other plastic related items .

II,Suitable Sheet

PVC,PP,PS,OPS,PET,APET,PETG, CPET Etc

III,Structure Features

1. Mechanical, pneumatic and electrical combination, all working actions are controlled by PLC. Touch screen makes the operation convenient and easy.
2. Pressure And/Or Vacuum forming.
3. Up and down mold forming method.
4. Servo motor feeding, feeding length can be step-less adjusted. High speed and accurate.
5. Upper & lower heater, three sections heating
6. Heater with intellectual temperature control system, automatic supply the heating individual heater control. Fast heating(3 min from 0-400 degree), it won't be effected by outer voltage.
7. Forming and cutting unit mold open and close controlled by servo motor, products automatically count.
8. Data memorization function can store 120 set of running data.
9. Products can be chose stacked upward or downward.
10. Feeding width can be synchronously or independently adjusted in electrical way.
11. Heater will automatically push-out when the sheet is over.
12. Auto roll sheet loading, reduce the working load.

IV,Technical Parameter


Sheet width (mm)500-800
Sheet thickness (mm)0.2-1.5
Max roll sheet diameter (mm)800
Forming mold stroke (mm)(Up ) 140,(down) 140
Mold clamping force(ton)45
Max forming area (mm2)760×600
Min forming area (mm2)500×460
Forming mold width (mm)500-760
Forming mold length (mm)460-600
Max forming depth/height (mm)120 / 70
Cutting mold stroke(mm)(up)80,(down)140
Max cutting area (mm2)760×600
Cutting force(ton)60
Cycle (time/ min)Max30
Cooling Water cooling
Air supplyvolume (m3/ min)2
Air pressure (MPa)0.8
Vacuum pumpBusch R5 0100
Power supply3 phase 4 line 380V50Hz
Heater power (kw)120
Max general power (kw)150
Dimension  (L×W×H) (mm)12540×3200×3200
Weight  ( T )14

V,Technical Components

PLC  Taiwan Delta
Touch Screen Monitor ( 10.4inch /Color ) Taiwan Delta
Feeding servo motor(5.5kw) Taiwan Delta
Forming up/down mold servo motor(4.5kw) Taiwan Delta
Cutting up/down mold servo motor(4.5kw+5.5kw/4.5kw) Taiwan Delta
Heater(196 pcs) Germany Elstein
Contactor Germany Siemens
Thermo Relay Germany Siemens
Relay Germany Weidmuller
SSRSwitzerland Carlo Gavazzi
Vacuum PumpGermany Busch
Automatic Lubrication System Taiwan ChenYing
Electronic pressure sensor Taiwan Delta
Pneumatic JAPAN SMC
CylinderJAPAN SMC & Taiwan Airtac

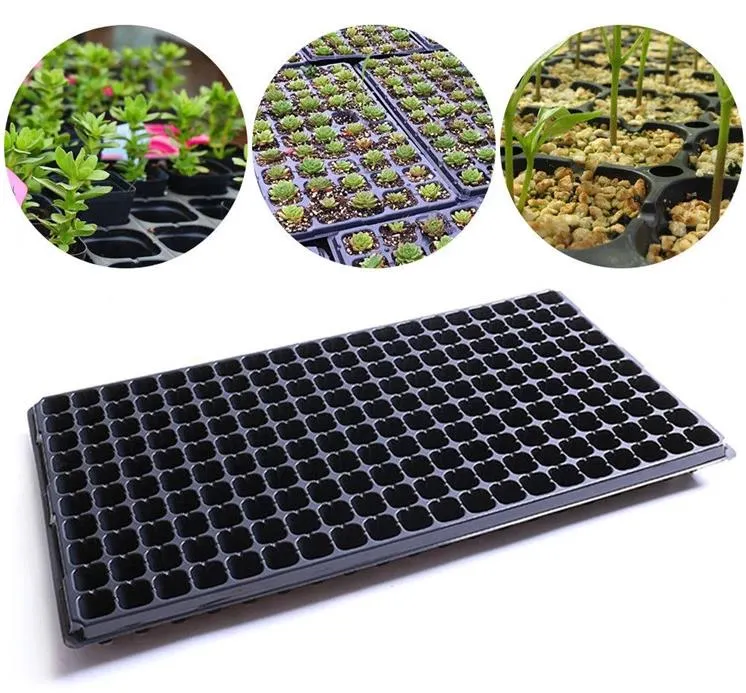

IV,Sample Pictures

Greenhouse Accessories Seed Tray Vacuum Forming Machine
VII,Certifications

Greenhouse Accessories Seed Tray Vacuum Forming Machine
VIII,Workshop Pictures

Greenhouse Accessories Seed Tray Vacuum Forming Machine

IX,Package


Greenhouse Accessories Seed Tray Vacuum Forming Machine
X,Exhibition

Greenhouse Accessories Seed Tray Vacuum Forming Machine
It drives sales and has very substantial economic benefits. It is highly automatic, which requires less manpower. It is supposed to cater to all kinds of customers across the market. It is highly automatic, which requires less manpower.
