Fruits Clamshell Packing Box Vacuum Thermoforming Making Forming Machine
![Fruits Clamshell Packing Box Vacuum Thermoforming Making Forming Machine]()

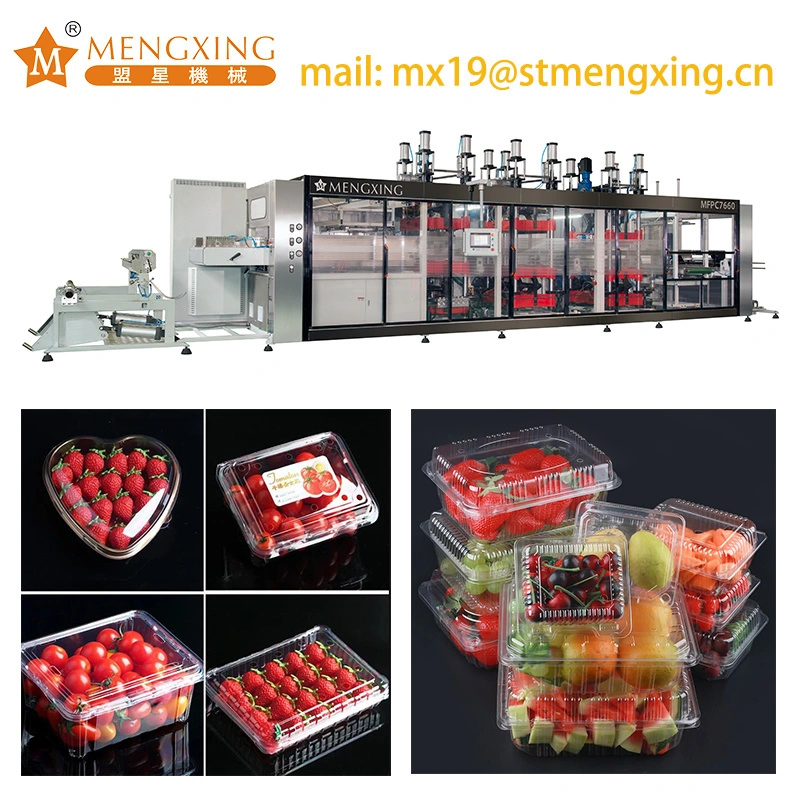

MFPC8260RD 4 Stations Pressure & Vacuum Forming Machine
I,Usage
The machine is designed for producing various of open-wide plastic containers, such as food trays, plastic trays, cosmetic trays , blister , clamshells , plates and other plastic related items .
II,Suitable Sheet
PVC,PP,PS,OPS,PET,APET,PETG, CPET Etc
III,Structure Features
1. Mechanical, pneumatic and electrical combination, all working actions are controlled by PLC. Touch screen makes the operation convenient and easy.
2. Pressure And/Or Vacuum forming.
3. Up and down mold forming method.
4. Servo motor feeding, feeding length can be step-less adjusted. High speed and accurate.
5. Upper & lower heater, three sections heating
6. Heater with intellectual temperature control system, automatic supply the heating individual heater control. Fast heating(3 min from 0-400 degree), it won't be effected by outer voltage.
7. Forming and cutting unit mold open and close controlled by servo motor, products automatically count.
8. Data memorization function can store 120 set of running data.
9. Products can be chose stacked upward or downward.
10. Feeding width can be synchronously or independently adjusted in electrical way.
11. Heater will automatically push-out when the sheet is over.
12. Auto roll sheet loading, reduce the working load.
IV,Technical Parameter
V,Technical Components

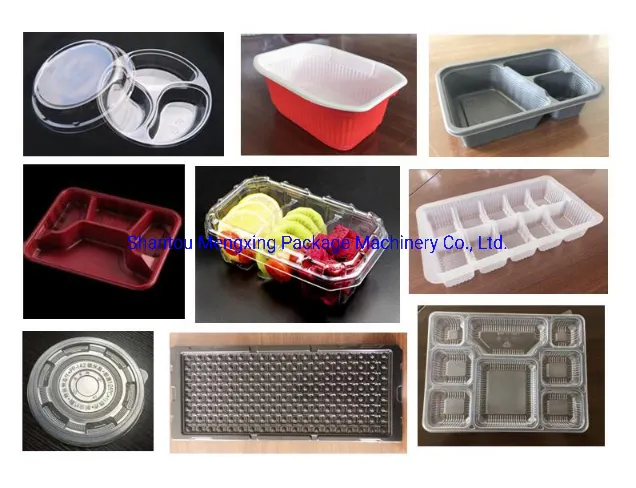

IV,Sample Pictures
![Fruits Clamshell Packing Box Vacuum Thermoforming Making Forming Machine]()
VII,Certifications
![Fruits Clamshell Packing Box Vacuum Thermoforming Making Forming Machine]()
VIII,Workshop Pictures
![Fruits Clamshell Packing Box Vacuum Thermoforming Making Forming Machine]()
IX,Package
![Fruits Clamshell Packing Box Vacuum Thermoforming Making Forming Machine]()
X,Exhibition
![Fruits Clamshell Packing Box Vacuum Thermoforming Making Forming Machine]()
MFPC8260RD 4 Stations Pressure & Vacuum Forming Machine
I,Usage
The machine is designed for producing various of open-wide plastic containers, such as food trays, plastic trays, cosmetic trays , blister , clamshells , plates and other plastic related items .
II,Suitable Sheet
PVC,PP,PS,OPS,PET,APET,PETG, CPET Etc
III,Structure Features
1. Mechanical, pneumatic and electrical combination, all working actions are controlled by PLC. Touch screen makes the operation convenient and easy.
2. Pressure And/Or Vacuum forming.
3. Up and down mold forming method.
4. Servo motor feeding, feeding length can be step-less adjusted. High speed and accurate.
5. Upper & lower heater, three sections heating
6. Heater with intellectual temperature control system, automatic supply the heating individual heater control. Fast heating(3 min from 0-400 degree), it won't be effected by outer voltage.
7. Forming and cutting unit mold open and close controlled by servo motor, products automatically count.
8. Data memorization function can store 120 set of running data.
9. Products can be chose stacked upward or downward.
10. Feeding width can be synchronously or independently adjusted in electrical way.
11. Heater will automatically push-out when the sheet is over.
12. Auto roll sheet loading, reduce the working load.
IV,Technical Parameter
| Sheet width (mm) | 500-860 | |
| Sheet thickness (mm) | 0.1-1.5 | |
| Max roll sheet diameter (mm) | 800 | |
| Forming mold stroke (mm) | (Up ) 140,(down) 140 | |
| Mold clamping force/Punching force(ton) | 45 | |
| Max forming area (mm2) | 820×600 | |
| Forming mold width (mm) | 500-820 | |
| Max forming depth/height (mm) | 120/ 70 | |
| Cutting mold stroke(mm) | (up)80,(down)140 | |
| Max cutting area (mm2) | 820×600 | |
| Cutting force(ton) | 60 | |
| Cycle (time/ min) | Robot Stacking Max17 | |
| Downward Stacking Max30 | ||
| Cooling | Water cooling | |
| Air supply | volume (m3/ min) | ≥2 |
| Air pressure (MPa) | 0.8 | |
| Vacuum pump | Busch R5 0100 | |
| Power supply | 3 phase 4 line 380V50Hz | |
| Heater power (kw) | 120 | |
| Max general power (kw) | 160 | |
| Dimension (L×W×H) (mm) | 14500×3200×3200 | |
| Weight ( Ton ) | ≈19 | |
V,Technical Components
| PLC | Taiwan Delta |
| Touch Screen Monitor ( 10.4″inch /Color ) | Taiwan Delta |
| Feeding servo motor(5.5kw) | Taiwan Delta |
| Forming up/down mold servo motor(4.5kw) | Taiwan Delta |
| Punching up/down mold servo motor(4.5kw) | Taiwan Delta |
| Cutting up/down mold servo motor(5.5+4.5kw/4.5kw) | Taiwan Delta |
| Robot Servo motor (2kw+2kw) | Taiwan Delta |
| Feeding Chain | Germany Iwis |
| Heater(196 pcs) | Germany Elstein |
| Contactor | Germany Siemens |
| Overload Relay | Germany Siemens |
| Relay | Germany Weidmuller |
| Solid State Relay (SSR) | Switzerland Carlo Gavazzi |
| Vacuum Pump | Germany Busch |
| Electronic pressure sensor | Taiwan Delta |
| Automatic Lubrication Unit System | Taiwan ChenYing |
| Pneumatic Solenoid valve | JAPAN SMC |
| Pneumatic Cylinder | JAPAN SMC & Taiwan Airtac |
IV,Sample Pictures
VII,Certifications
VIII,Workshop Pictures
IX,Package
X,Exhibition
The success of Shantou Mengxing Package Machinery Co.,Ltd. hinges on our outstanding team of vacuum forming machine designers and manufacturing engineers. The heater in the product is equipped with an intellectual temperature control system.
The product provides huge profits and benefits at reasonable prices. The heater in the product is equipped with an intellectual temperature control system.
