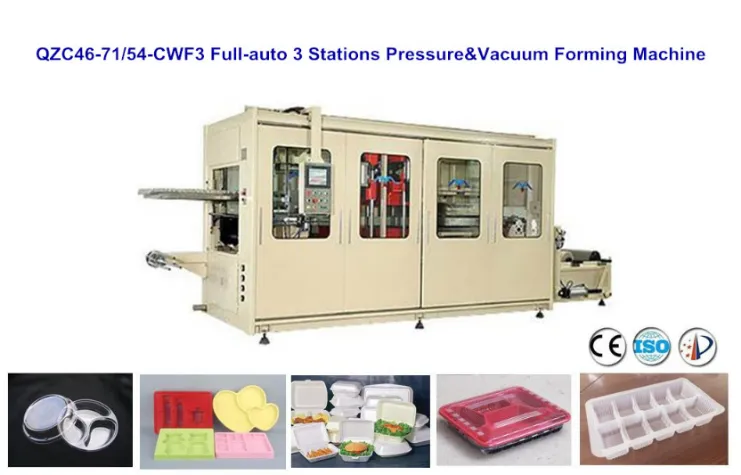

Automatic PP Lunch Box Forming Machine (3 stations)

I,Usage
The machine is suitable for making all size packing containers ,in open-type with thin-wall ,by using roll-sheet , under high-speed vacuum suction-forming processing .The products out of this machine can be used for the package of foods .native-products,tourist-goods,textile,medical, toy,cosmetic,electrical elements and daily used hard-ware ,etc .
Sheet fit to the machine
Starch-deposit sheets ,light-deposit sheet ,environment sheet APET ,PETG.
Color sheets :PVC,HIPS,PET,PS,PP, CPET,EPS, etc.,fFiber-coating-sheet.

II,Feature Function
1. Mechanical , Pneumatic and Electrical Combination . All working action is controlled by PLC . Touch Screen Input , easy and convenient .
2. Three Working Position : Forming / Cutting / Stacking .
3. Pressure / Negative Forming assist with Plug
4. Upper or Lower Mold Forming Method
5. Servo Motor Feeding , Feeding Length Stepless Adjust , High Speed and Accurate .
6. Upper Heater , Four Section Heating .
7. Heater with Intellectual Temperature Control System , automatic supply the heating, Individual Heater Control , Touch Screen Digital Input , Mini-adjust & Precision and Accurate , Fast Heating ( Only 3 min from 0-400 degree ) . Stable and Reliable .It won't effect by outer voltage , lower power consumption , longer life of far infrared ceramic heater .
8. Servo Motor Stacking , Finished Production Accounting .
9. All production data and technical parameter store and recall function .
10. Edge Automatic trimming .
11. Feeding China Width separate adjust or Motor adjust .
12. Heater automatic push-out function .
13. Auto Roll Sheet Loading , Reduce the Working labor.

III,Technical parameters

Parameter		QZC46-71/54-CWF3(mode No.)
Sheet width (mm)		460-710
Sheet thickness (mm)		0.2-1.5
Max.dia.of Sheet roll (mm)		600
Forming mold stroke (mm)		2×155
Cutting mold stroke (mm)		155
Cutting base stroke (mm)		Max. 100
Max. forming area (mm2)		670×540
Max. forming depth / height (mm)		80/50
Max. cutting force(kgf)		30000
Capacity ( Cycle / min)		4-18 ( Max. capacity is 18 cycle/ min.)
Forming cooling		Water Cooling
Air source	Air supply(m3/ min)	≥5
	Pressure (MPa)	0.8
Vacuum pump		Busch R5 0040
Power supply		3 Phase 4 Line 380V50Hz
Heating power (Kw)		44.2
Max. power of whole machine(Kw)		50.42
Dimension (L×W×H) (mm)		9400×3030×2430
Weight of whole machine(Kgs)		≈9000

IV,Technical Components

PLC	Taiwan Delta
Touch screen monitor ( 10.4″inch /Color )	Taiwan Delta
Feeding servo motor(3.0kw)	Taiwan Delta
Stacking servo motor (1.5kw)	Taiwan Delta
Heater (78PCS )	Germany
Solid state relay (78 PCS )	China
Contactor	Germany Siemens
Thermo relay	Germany Siemens
Relay	Germany Weidmuller
Vacuum pump	Busch R5 0040
Pneumatic	Japan SMC
Cylinder	China

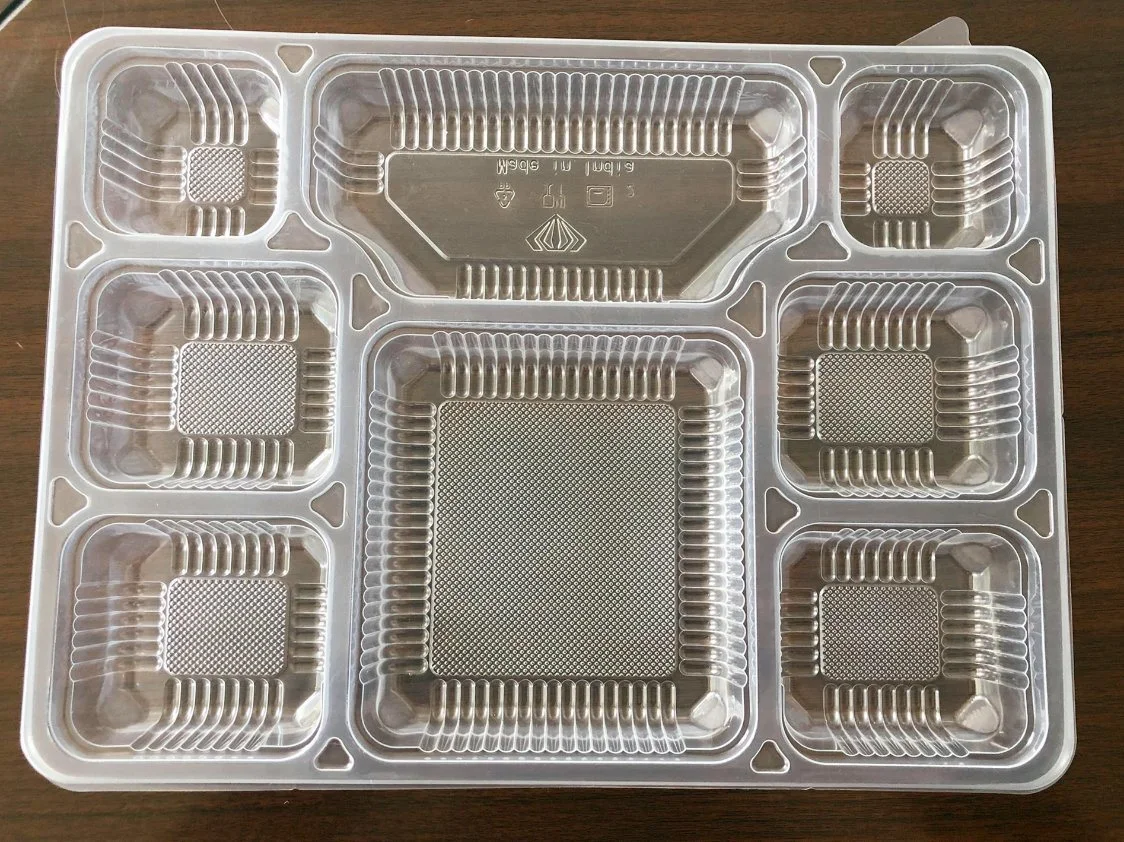

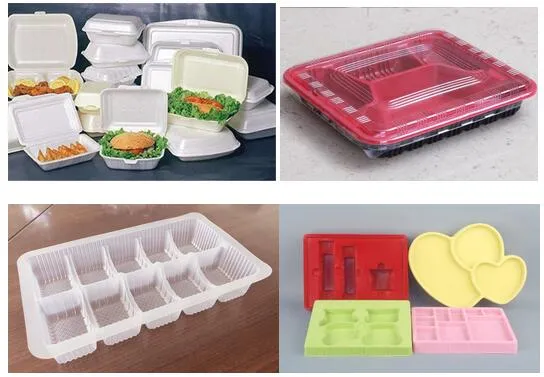

V,Sample Pictures

VI,Certifications

VII,Workshop Pictures

VIII,Package

Automatic PP Lunch Box Forming Machine (3 stations)

IX,Exhibition
Automatic PP Lunch Box Forming Machine (3 stations)
