Automatic Plastic Processing Machine Disposable Tray/Box/Food Package Container Vacuum Forming Machine
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Basic Info.
Model NO.
Pressure and Vacuum Forming Machine
HS Code
84774090
Automatic Plastic Processing Machine Disposable Tray/Box/Food Package Container Vacuum Forming Machine
![Automatic Plastic Processing Machine Disposable Tray/Box/Food Package Container Vacuum Forming Machine]()
![Automatic Plastic Processing Machine Disposable Tray/Box/Food Package Container Vacuum Forming Machine]()
![Automatic Plastic Processing Machine Disposable Tray/Box/Food Package Container Vacuum Forming Machine]()
I,Usage

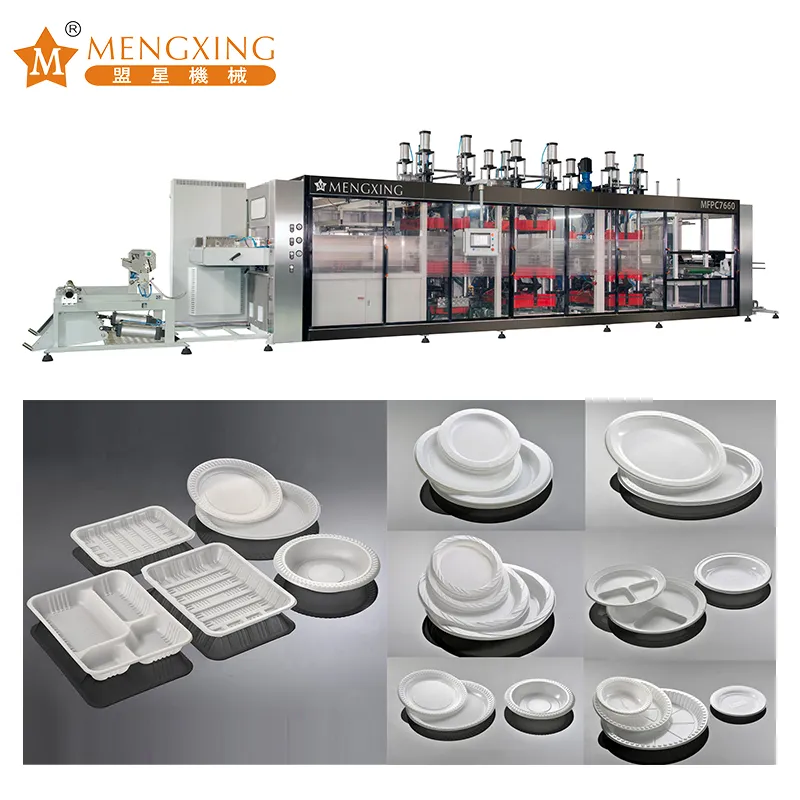

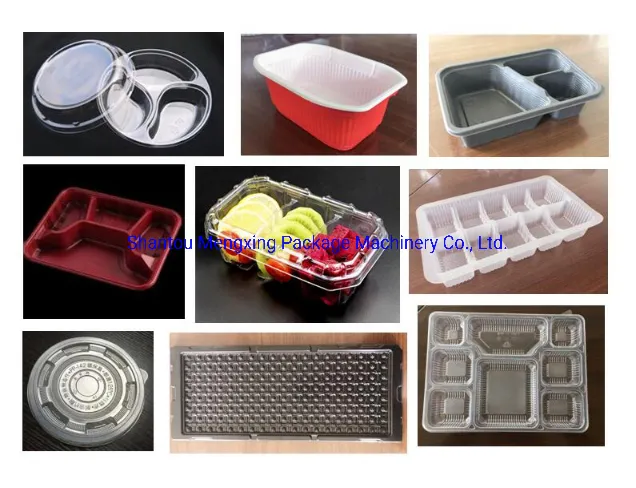

The machine is designed for producing various of open-wide plastic containers, such as food trays, plastic trays, cosmetic trays , blister , clamshells , plates and other plastic related items .
II,Suitable Sheet
PVC,PP,PS,OPS,PET,APET,PETG, CPET Etc
III,Structure Features
1. Mechanical, pneumatic and electrical combination, all working actions are controlled by PLC. Touch screen makes the operation convenient and easy.
2. Pressure And/Or Vacuum forming.

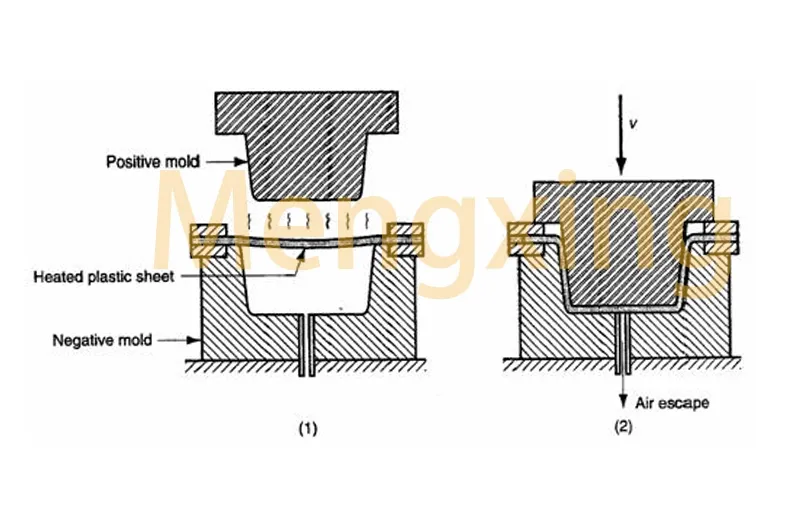

3. Up and down mold forming method.
4. Servo motor feeding, feeding length can be step-less adjusted. High speed and accurate.
5. Upper & lower heater, three sections heating
6. Heater with intellectual temperature control system, automatic supply the heating individual heater control. Fast heating(3 min from 0-400 degree), it won't be effected by outer voltage.
7. Forming and cutting unit mold open and close controlled by servo motor, products automatically count.
8. Data memorization function can store 120 set of running data.
9. Products can be chose stacked upward or downward.
10. Feeding width can be synchronously or independently adjusted in electrical way.
11. Heater will automatically push-out when the sheet is over.
12. Auto roll sheet loading, reduce the working load.
IV,Technical Parameter
V,Technical Components
VII,Certifications
![Automatic Plastic Processing Machine Disposable Tray/Box/Food Package Container Vacuum Forming Machine]()
VIII,Workshop Pictures
![Automatic Plastic Processing Machine Disposable Tray/Box/Food Package Container Vacuum Forming Machine]()
IX,Package
![Automatic Plastic Processing Machine Disposable Tray/Box/Food Package Container Vacuum Forming Machine]()
X,Exhibition
![Automatic Plastic Processing Machine Disposable Tray/Box/Food Package Container Vacuum Forming Machine]()
I,Usage
The machine is designed for producing various of open-wide plastic containers, such as food trays, plastic trays, cosmetic trays , blister , clamshells , plates and other plastic related items .
II,Suitable Sheet
PVC,PP,PS,OPS,PET,APET,PETG, CPET Etc
III,Structure Features
1. Mechanical, pneumatic and electrical combination, all working actions are controlled by PLC. Touch screen makes the operation convenient and easy.
2. Pressure And/Or Vacuum forming.
3. Up and down mold forming method.
4. Servo motor feeding, feeding length can be step-less adjusted. High speed and accurate.
5. Upper & lower heater, three sections heating
6. Heater with intellectual temperature control system, automatic supply the heating individual heater control. Fast heating(3 min from 0-400 degree), it won't be effected by outer voltage.
7. Forming and cutting unit mold open and close controlled by servo motor, products automatically count.
8. Data memorization function can store 120 set of running data.
9. Products can be chose stacked upward or downward.
10. Feeding width can be synchronously or independently adjusted in electrical way.
11. Heater will automatically push-out when the sheet is over.
12. Auto roll sheet loading, reduce the working load.
IV,Technical Parameter
| Sheet width (mm) | 500-800 | |
| Sheet thickness (mm) | 0.2-1.5 | |
| Max roll sheet diameter (mm) | 800 | |
| Forming mold stroke (mm) | (Up ) 140,(down) 140 | |
| Mold clamping force(ton) | 45 | |
| Max forming area (mm2) | 760×600 | |
| Min forming area (mm2) | 500×460 | |
| Forming mold width (mm) | 500-760 | |
| Forming mold length (mm) | 460-600 | |
| Max forming depth/height (mm) | 120 / 70 | |
| Cutting mold stroke(mm) | (up)80,(down)140 | |
| Max cutting area (mm2) | 760×600 | |
| Cutting force(ton) | 60 | |
| Cycle (time/ min) | Max30 | |
| Cooling | Water cooling | |
| Air supply | volume (m3/ min) | ≥2 |
| Air pressure (MPa) | 0.8 | |
| Vacuum pump | Busch R5 0100 | |
| Power supply | 3 phase 4 line 380V50Hz | |
| Heater power (kw) | 120 | |
| Max general power (kw) | 150 | |
| Dimension (L×W×H) (mm) | 12540×3200×3200 | |
| Weight ( T ) | ≈14 | |
V,Technical Components
| PLC | Taiwan Delta |
| Touch Screen Monitor ( 10.4″inch /Color ) | Taiwan Delta |
| Feeding servo motor(5.5kw) | Taiwan Delta |
| Forming up/down mold servo motor(4.5kw) | Taiwan Delta |
| Cutting up/down mold servo motor(4.5kw+5.5kw/4.5kw) | Taiwan Delta |
| Heater(196 pcs) | Germany Elstein |
| Contactor | Germany Siemens |
| Thermo Relay | Germany Siemens |
| Relay | Germany Weidmuller |
| SSR | Switzerland Carlo Gavazzi |
| Vacuum Pump | Germany Busch |
| Automatic Lubrication System | Taiwan ChenYing |
| Electronic pressure sensor | Taiwan Delta |
| Pneumatic | JAPAN SMC |
| Cylinder | JAPAN SMC & Taiwan Airtac |
VII,Certifications
VIII,Workshop Pictures
IX,Package
X,Exhibition
Supported by ingenious team, Mengxing has highly recommended service team. Installed with a highly advanced die change equipment, it features high work efficiency.
Most vacuum forming machine products have passed the authentications. Installed with a highly advanced die change equipment, it features high work efficiency.
