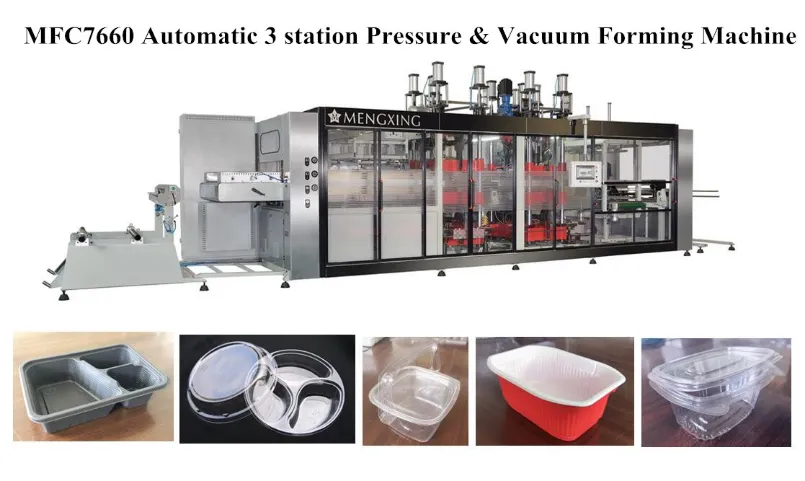

3 Stations Pressure &Vaccum Forming Machine

Home  > 3 Stations Pressure &Vaccum Forming Machine  >

Automatic Forming Cutting Stacking Counting Plastic Lid Cover Thermoforming Machine

这里可以自定义设置
Automatic Forming Cutting Stacking Counting Plastic Lid Cover Thermoforming Machine
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障

Basic Info.

Model NO.
MFC 7660
HS Code
8401200000

Automatic Forming Cutting Stacking Counting Plastic Lid Cover Thermoforming Machine
I,Usage
The machine is designed for producing various of open-wide plastic containers, such as food trays, plastic trays, cosmetic trays , blister , clamshells , plates and other plastic related items .

II,Suitable Sheet
PVC,PP,PS,OPS,PET,APET,PETG, CPET Etc

III,Structure Features
1. Mechanical, pneumatic and electrical combination, all working actions are controlled by PLC. Touch screen makes the operation convenient and easy.
2. Pressure And/Or Vacuum forming.
3. Up and down mold forming method.
4. Servo motor feeding, feeding length can be step-less adjusted. High speed and accurate.
5. Upper & lower heater, three sections heating
6. Heater with intellectual temperature control system, automatic supply the heating individual heater control. Fast heating(3 min from 0-400 degree), it won't be effected by outer voltage.
7. Forming and cutting unit mold open and close controlled by servo motor, products automatically count.
8. Data memorization function can store 120 set of running data.
9. Products can be chose stacked upward or downward.
10. Feeding width can be synchronously or independently adjusted in electrical way.
11. Heater will automatically push-out when the sheet is over.
12. Auto roll sheet loading, reduce the working load.

IV,Technical Parameter
ParameterMFC 7660(mode No.)
Sheet width (mm)500-800
Sheet thickness (mm)0.2-1.5
Max.dia.of sheet roll (mm)800
Forming mold stroke (mm)(Up ) 140,(down) 140
Mold cutting force(ton)45
Max.forming area (mm2)760×600
Min.forming area (mm2)500×460
Forming mold width (mm)500-760
Forming mold length (mm)460-600
Max.forming depth/height (mm)125 / 70
Cutting mold stroke(mm)up mold:80,
down mold:140
Max.cutting area (mm2)760×600
Cutting force(ton)45
Cycle (time/ min)Max.35
Product cooling methodBy water cooling
Air source(outer)Air supply(m3/ min)≥2
Pressure (MPa)0.8
Vacuum pumpBusch R5 0100
Power supply3 phase 4 line 380V50Hz
Heating power (Kw)120
Max.power of whole machine(Kw)150
Dimension (L×W×H) (mm)12540×3200×2530
Weight ( T )≈13

V,Technical Components
PLC Taiwan Delta
Touch Screen Monitor ( 10.4″inch /Color )Taiwan Delta
Feeding servo motor(4.5kw)Taiwan Delta
Forming up/down mold servo motor(4.5kw)Taiwan Delta
Cutting up/down mold servo motor(4.5kw/5.5kw)Taiwan Delta
Heater(222 pcs)Germany Elstein
ContactorGermany Siemens
Thermo RelayGermany Siemens
RelayGermany Weidmuller
Vacuum PumpGermany  Busch
Electronic pressure sensorTaiwan Delta
PneumaticJapan SMC
CylinderChina

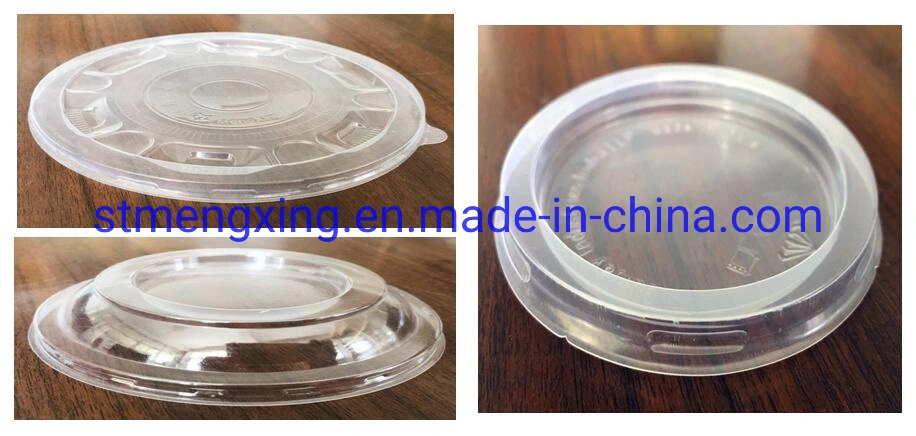

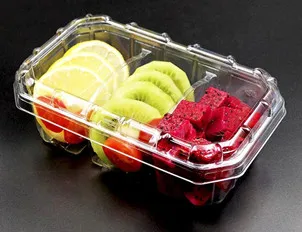

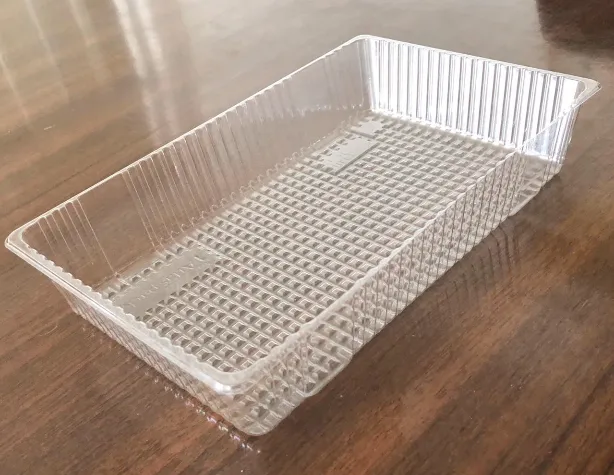

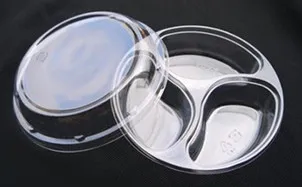

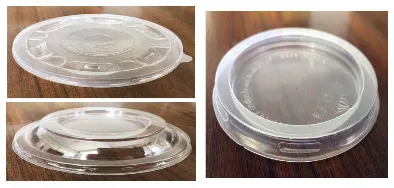

VI,Sample Pictures
Automatic Forming Cutting Stacking Counting Plastic Lid Cover Thermoforming Machine  Automatic Forming Cutting Stacking Counting Plastic Lid Cover Thermoforming Machine
Automatic Forming Cutting Stacking Counting Plastic Lid Cover Thermoforming Machine   Automatic Forming Cutting Stacking Counting Plastic Lid Cover Thermoforming Machine

Automatic Forming Cutting Stacking Counting Plastic Lid Cover Thermoforming Machine



VII,Certifications
Automatic Forming Cutting Stacking Counting Plastic Lid Cover Thermoforming Machine

VIII,Workshop Pictures
Automatic Forming Cutting Stacking Counting Plastic Lid Cover Thermoforming Machine


IX,Package


Automatic Forming Cutting Stacking Counting Plastic Lid Cover Thermoforming Machine

X,Exhibition
Automatic Forming Cutting Stacking Counting Plastic Lid Cover Thermoforming Machine
This product helps man to reduce his or her job. And because of this, the money that is required to pay is totally reduced. With an automatic lubrication system, it, therefore, has a smooth operation. Works can get rid of jobs that are dirty dull. They will take more interest in their work and their efficiency will increase. With an automatic lubrication system, it, therefore, has a smooth operation.
