Automatic Forming&Cutting Machine for Plastic Buscuit Tray Lid Box Plate Case-Mengxing

Basic Info.

Model NO.

MFC 7660

HS Code

8401200000

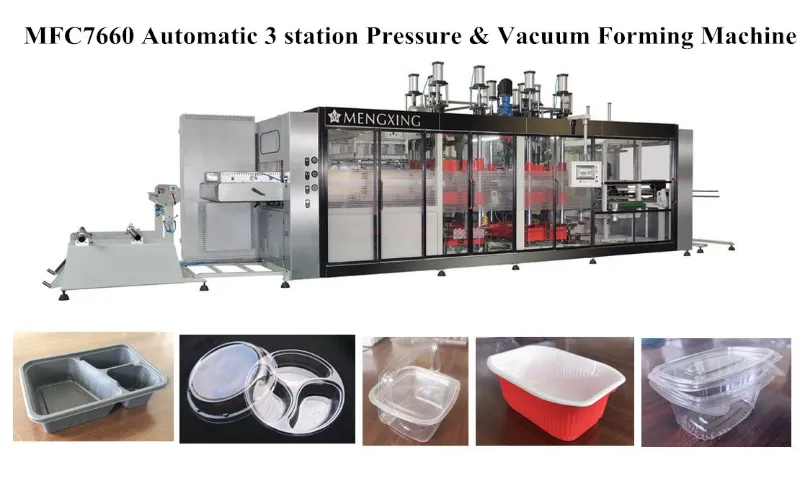

Automatic Forming&Cutting Machine for Plastic Buscuit Tray Lid Box Plate Case

I,Usage
The machine is designed for producing various of open-wide plastic containers, such as food trays, plastic trays, cosmetic trays , blister , clamshells , plates and other plastic related items .

II,Suitable Sheet
PVC,PP,PS,OPS,PET,APET,PETG, CPET Etc

III,Structure Features
1. Mechanical, pneumatic and electrical combination, all working actions are controlled by PLC. Touch screen makes the operation convenient and easy.
2. Pressure And/Or Vacuum forming.
3. Up and down mold forming method.
4. Servo motor feeding, feeding length can be step-less adjusted. High speed and accurate.
5. Upper & lower heater, three sections heating
6. Heater with intellectual temperature control system, automatic supply the heating individual heater control. Fast heating(3 min from 0-400 degree), it won't be effected by outer voltage.
7. Forming and cutting unit mold open and close controlled by servo motor, products automatically count.
8. Data memorization function can store 120 set of running data.
9. Products can be chose stacked upward or downward.
10. Feeding width can be synchronously or independently adjusted in electrical way.
11. Heater will automatically push-out when the sheet is over.
12. Auto roll sheet loading, reduce the working load.

IV,Technical Parameter

Parameter		MFC 7660(mode No.)
Sheet width (mm)		500-800
Sheet thickness (mm)		0.2-1.5
Max.dia.of sheet roll (mm)		800
Forming mold stroke (mm)		(Up ) 140,(down) 140
Mold cutting force(ton)		45
Max.forming area (mm²)		760×600
Min.forming area (mm²)		500×460
Forming mold width (mm)		500-760
Forming mold length (mm)		460-600
Max.forming depth/height (mm)		125 / 70
Cutting mold stroke(mm)		up mold:80, down mold:140
Max.cutting area (mm²)		760×600
Cutting force(ton)		45
Cycle (time/ min)		Max.35
Product cooling method		By water cooling
Air source(outer)	Air supply(m³/ min)	≥2
	Pressure (MPa)	0.8
Vacuum pump		Busch R5 0100
Power supply		3 phase 4 line 380V50Hz
Heating power (Kw)		120
Max.power of whole machine(Kw)		150
Dimension (L×W×H) (mm)		12540×3200×2530
Weight ( T )		≈13

V,Technical Components

PLC	Taiwan Delta
Touch Screen Monitor ( 10.4″inch /Color )	Taiwan Delta
Feeding servo motor(4.5kw)	Taiwan Delta
Forming up/down mold servo motor(4.5kw)	Taiwan Delta
Cutting up/down mold servo motor(4.5kw/5.5kw)	Taiwan Delta
Heater(222 pcs)	Germany Elstein
Contactor	Germany Siemens
Thermo Relay	Germany Siemens
Relay	Germany Weidmuller
Vacuum Pump	Germany Busch
Electronic pressure sensor	Taiwan Delta
Pneumatic	Japan SMC
Cylinder	China

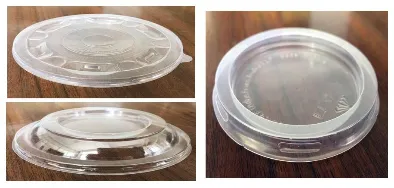

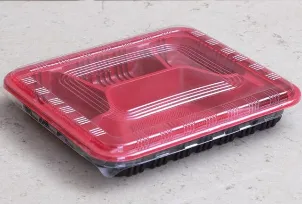

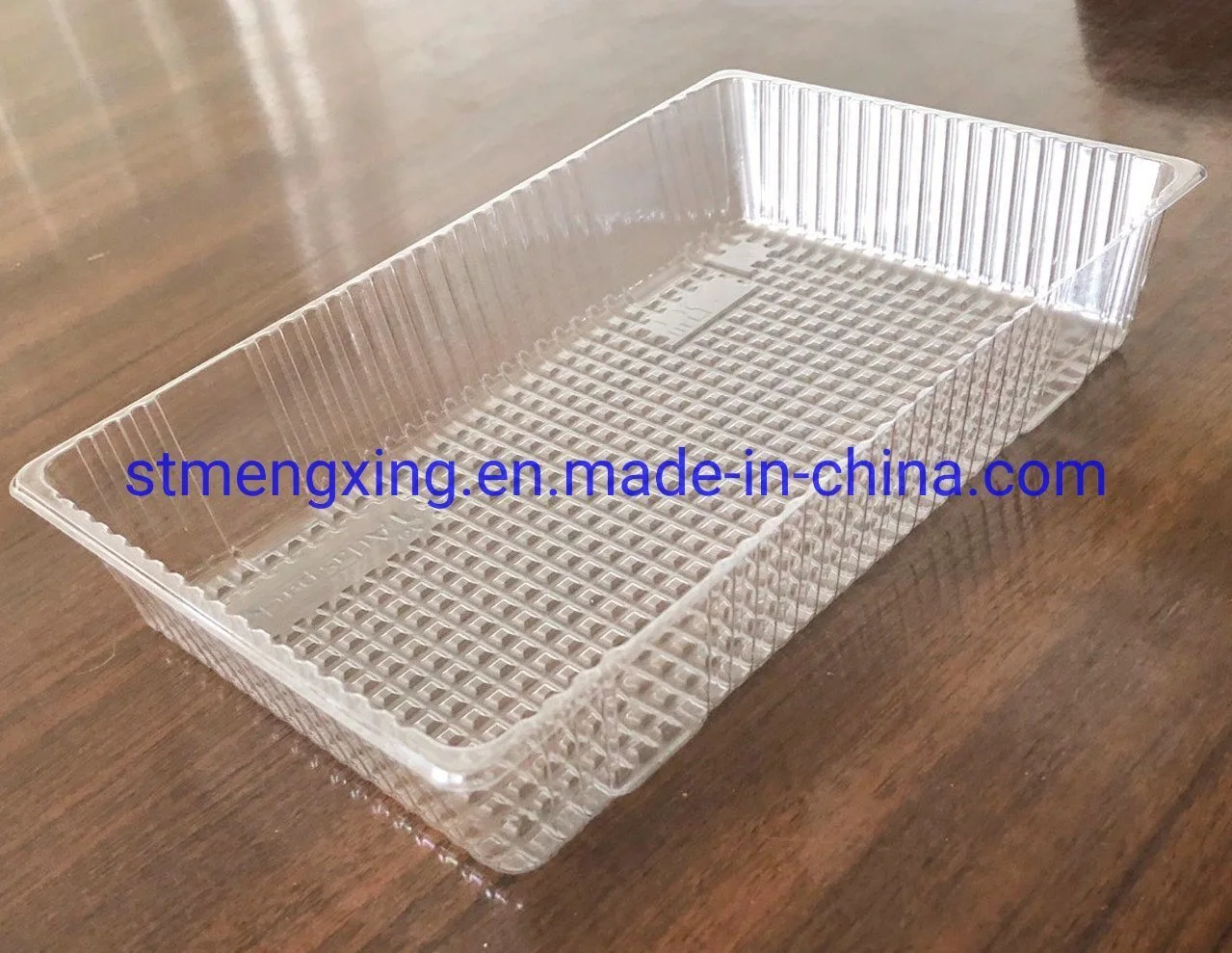

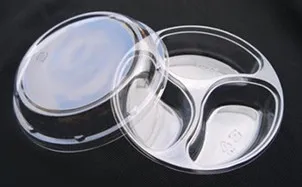

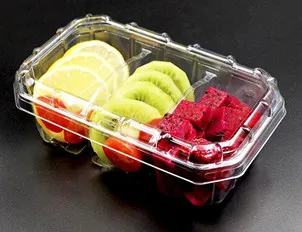

VI,Sample Pictures

VII,Certifications

VIII,Workshop Pictures

IX,Package

Automatic Forming&Cutting Machine for Plastic Buscuit Tray Lid Box Plate Case

X,Exhibition
Automatic Forming&Cutting Machine for Plastic Buscuit Tray Lid Box Plate Case

This product is believed to have a wide range of applications due to the huge market demand. It is exported to the Middle East, North Africa, North America, Europe, and other countries and regions. Shantou Mengxing Package Machinery Co.,Ltd.'s company culture is to produce good products and provide professional services. It is exported to the Middle East, North Africa, North America, Europe, and other countries and regions.
