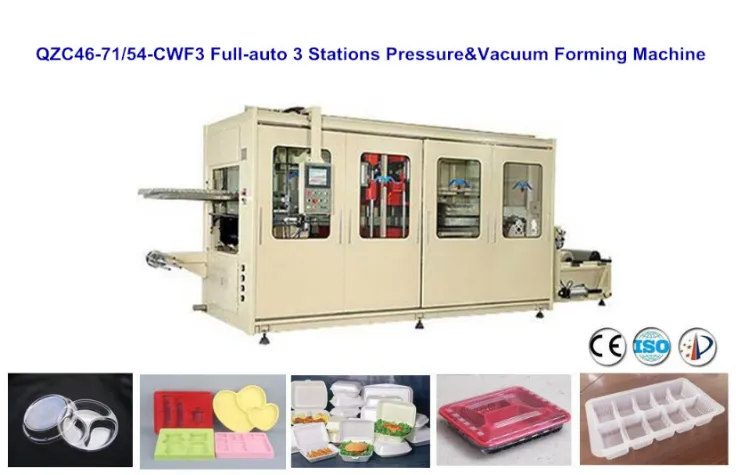

3 Stations Pressure &Vaccum Forming Machine

Home  > 3 Stations Pressure &Vaccum Forming Machine  >

Automatic EPS Tray Foamed Machine (3 station)

这里可以自定义设置
Automatic EPS Tray Foamed Machine (3 station)
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障

Basic Info.

Model NO.
QZC46-71/54-CWF3
HS Code
84774090
Automatic EPS Tray Foamed Machine (3 station)

I,Usage
 The machine is suitable for making all size packing containers ,in open-type with thin-wall ,by using roll-sheet , under high-speed vacuum suction-forming processing .The products out of this machine can be used for the package of foods .native-products,tourist-goods,textile,medical, toy,cosmetic,electrical elements and daily used hard-ware ,etc .
Sheet fit to the machine
Starch-deposit sheets ,light-deposit sheet ,environment sheet APET ,PETG.

Color sheets :PVC,HIPS,PET,PS,PP, CPET,EPS, etc.,fFiber-coating-sheet.

II,Feature Function
1. Mechanical , Pneumatic and Electrical Combination . All working action is controlled by PLC . Touch Screen Input , easy and convenient .
2. Three Working Position : Forming / Cutting / Stacking .
3. Pressure / Negative Forming assist with Plug
4. Upper or Lower Mold Forming Method
5. Servo Motor Feeding , Feeding Length Stepless Adjust , High Speed and Accurate .
6. Upper Heater , Four Section Heating .
7. Heater with Intellectual Temperature Control System , automatic supply   the heating,
 Individual Heater Control , Touch Screen Digital Input  , Mini-adjust & Precision and Accurate , Fast Heating ( Only 3 min from 0-400 degree ) . Stable and Reliable .It won't effect by outer voltage , lower power consumption , longer life of far infrared ceramic heater .
8. Servo Motor Stacking , Finished Production Accounting .
9. All production data and technical parameter store and recall function .
10. Edge Automatic trimming .
11. Feeding China Width separate adjust or Motor adjust .
12. Heater automatic push-out function .
13. Auto Roll Sheet Loading , Reduce the Working labor.


 III,Technical parameters
ParameterQZC46-71/54-CWF3(mode No.)
Sheet width (mm)460-710
Sheet thickness (mm)0.2-1.5
Max.dia.of Sheet roll (mm)600
Forming mold stroke (mm)2×155
Cutting mold stroke (mm)155
Cutting base stroke (mm)Max. 100
Max. forming area (mm2)670×540
Max. forming depth / height (mm)80/50
Max. cutting force(kgf)30000
Capacity ( Cycle / min)4-18
 ( Max. capacity is 18 cycle/ min.)
Forming coolingWater Cooling
Air sourceAir  supply(m3/ min)≥5
Pressure (MPa)0.8
Vacuum pumpBusch R5 0040
Power supply3 Phase 4 Line      380V50Hz
Heating power (Kw)44.2
Max. power of whole machine(Kw)50.42
Dimension (L×W×H) (mm)9400×3030×2430
 Weight of whole machine(Kgs) ≈9000

IV,Technical Components
PLC Taiwan Delta
Touch screen monitor ( 10.4″inch /Color )Taiwan Delta
Feeding servo motor(3.0kw)Taiwan Delta
Stacking servo motor (1.5kw)Taiwan Delta
Heater (78PCS )Germany
Solid state relay (78 PCS ) China
ContactorGermany Siemens
Thermo relayGermany Siemens
RelayGermany Weidmuller
Vacuum pumpBusch R5 0040
PneumaticJapan SMC
CylinderChina

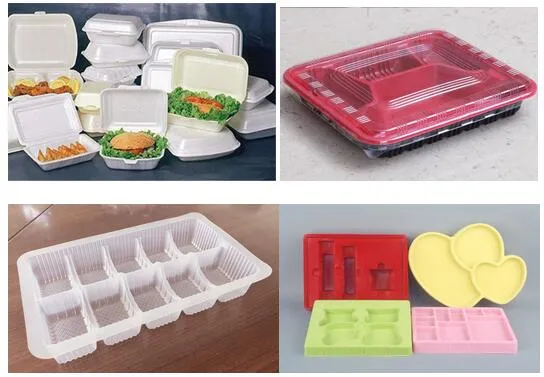

V,Sample Pictures

Automatic EPS Tray Foamed Machine (3 station)

VI,Certifications
Automatic EPS Tray Foamed Machine (3 station)

VII,Workshop Pictures
Automatic EPS Tray Foamed Machine (3 station)

VIII,Package


Automatic EPS Tray Foamed Machine (3 station)

IX,Exhibition
Automatic EPS Tray Foamed Machine (3 station)
Its industrialization speed is fast, and its scale effect is remarkable. The item produced by it is in a strict line with the food packaging requirements. Shantou Mengxing Package Machinery Co.,Ltd. selects optimal plan for our customers during pre-sale. The item produced by it is in a strict line with the food packaging requirements.
