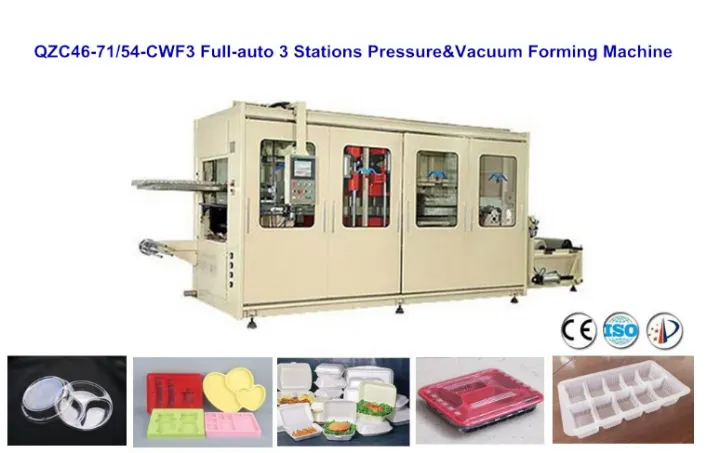

Automatic 3 Stations Pressure & Vacuum Forming Machine (QZC46-71/54-CWF3)

I,Usage
The machine is suitable for making all size packing containers ,in open-type with thin-wall ,by using roll-sheet , under high-speed vacuum suction-forming processing .The products out of this machine can be used for the package of foods .native-products,tourist-goods,textile,medical, toy,cosmetic,electrical elements and daily used hard-ware ,etc .
Sheet fit to the machine
Starch-deposit sheets ,light-deposit sheet ,environment sheet APET ,PETG.
Color sheets :PVC,HIPS,PET,PS,PP, CPET,EPS, etc.,fFiber-coating-sheet.

II,Feature Function
1. Mechanical , Pneumatic and Electrical Combination . All working action is controlled by PLC . Touch Screen Input , easy and convenient .
2. Three Working Position : Forming / Cutting / Stacking .
3. Pressure / Negative Forming assist with Plug
4. Upper or Lower Mold Forming Method
5. Servo Motor Feeding , Feeding Length Stepless Adjust , High Speed and Accurate .
6. Upper Heater , Four Section Heating .
7. Heater with Intellectual Temperature Control System , automatic supply the heating, Individual Heater Control , Touch Screen Digital Input , Mini-adjust & Precision and Accurate , Fast Heating ( Only 3 min from 0-400 degree ) . Stable and Reliable .It won't effect by outer voltage , lower power consumption , longer life of far infrared ceramic heater .
8. Servo Motor Stacking , Finished Production Accounting .
9. All production data and technical parameter store and recall function .
10. Edge Automatic trimming .
11. Feeding China Width separate adjust or Motor adjust .
12. Heater automatic push-out function .
13. Auto Roll Sheet Loading , Reduce the Working labor.

III,Technical parameters

Parameter		QZC46-71/54-CWF3(mode No.)
Sheet width (mm)		460-710
Sheet thickness (mm)		0.2-1.5
Max.dia.of Sheet roll (mm)		600
Forming mold stroke (mm)		2×155
Cutting mold stroke (mm)		155
Cutting base stroke (mm)		Max. 100
Max. forming area (mm2)		670×540
Max. forming depth / height (mm)		80/50
Max. cutting force(kgf)		30000
Capacity ( Cycle / min)		4-18 ( Max. capacity is 18 cycle/ min.)
Forming cooling		Water Cooling
Air source	Air supply(m3/ min)	≥5
	Pressure (MPa)	0.8
Vacuum pump		Busch R5 0040
Power supply		3 Phase 4 Line 380V50Hz
Heating power (Kw)		44.2
Max. power of whole machine(Kw)		50.42
Dimension (L×W×H) (mm)		9400×3030×2430
Weight of whole machine(Kgs)		≈9000

IV,Technical Components

PLC	Taiwan Delta
Touch screen monitor ( 10.4″inch /Color )	Taiwan Delta
Feeding servo motor(3.0kw)	Taiwan Delta
Stacking servo motor (1.5kw)	Taiwan Delta
Heater (78PCS )	Germany
Solid state relay (78 PCS )	China
Contactor	Germany Siemens
Thermo relay	Germany Siemens
Relay	Germany Weidmuller
Vacuum pump	Busch R5 0040
Pneumatic	Japan SMC
Cylinder	China
