This machine is designed for producing all size packaging containers, in open-type with thin wall, by using roll-sheet, under high-speed vacuum suction-forming processing. The products made by this machine can be used for the package of foods, tourist-goods, textile, medical, toy, cosmetic, electrical elements and daily used hard-ware, etc.
Starch-deposit sheets, light-deposit sheet, environment sheet, APET, PETG. PVC, HIPS, PET, PS, OPS,etc. II,Structure Feature
1. Mechanical, pneumatic and electrical combination, all working actions are controlled by PLC. Touch screen makes the operation convenient and easy.
2. Forming type: pressure and vacuum forming
3. Up/down mould forming type.
4. Servo motor feeding, feeding length can be step-less adjusted. High speed and accurate.
5. Up heater with 4 sections heating, down heater with 3 sections heating. With sheet edge preheating.
6. With sheet edge preheating. Avoid sheet broken.
7. Heater with intellectual temperature control system, automatic supply the heating individual heater control. Fast heating(3 min from 0-400 degree), it won't be effected by outer voltage
8. Forming and cutting station open/close mould controlled by servo motor, high cutting precision. products automatically accounting output.
9. Stacking type: downward stacking/manipulator stacking.
10. With products details and running data memorization function.
11. With quickly changing mould system, , more efficient.
12. Feeding width can be synchronously or independently adjusted in electrical way.
13. Heater automatically push-out when the sheet is over
14. Auto roll sheet loading, reduce the working load.III,Technical Parameter
|Parameter||MCIM 7660(mode No.)|
|Sheet width range(mm)||500-800|
|Available sheet thickness (mm)||0.2-1.5|
|Max.dia.of sheet roll (mm)||800|
|Forming mould stroke (mm)||Up mould: 140,Down mould: 210|
|Locking mould force(ton)||30|
|Max. forming area (mm2)||760×600|
|Min. forming area (mm2)||500×380|
|Forming mould width (mm)||500-760|
|Forming mould length(mm)||460-600|
|Max.forming depth/height (mm)||Manipulator :90 /80;|
|Stacking method||Downward stacking/Manipulator stacking|
|Cycle time (cycle/ min)||Manipulator: Max18;Downward stacking:Max30|
|Cooling Outlet||Water cooling|
|Air source||Air supply(m3/ min)||≥5|
|Vacuum pump||Busch R5 0100|
|Power supply||3 phase 4 lines 380V50Hz|
|Heater power (Kw)||150|
|General power (Kw)||200|
|Dimension (L×W×H) (mm)||10040×2600×3400|

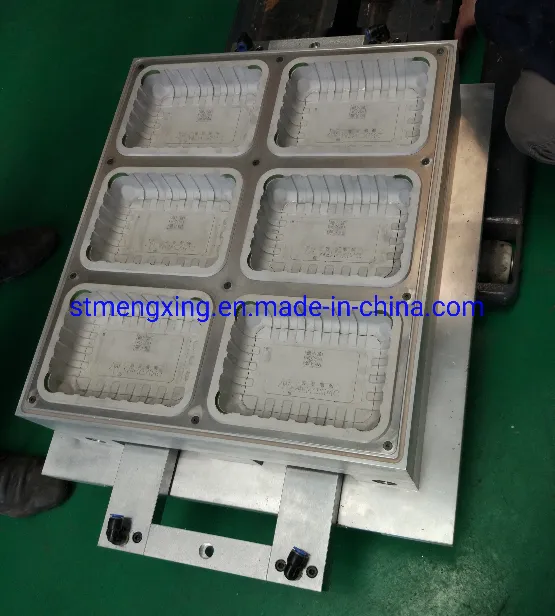

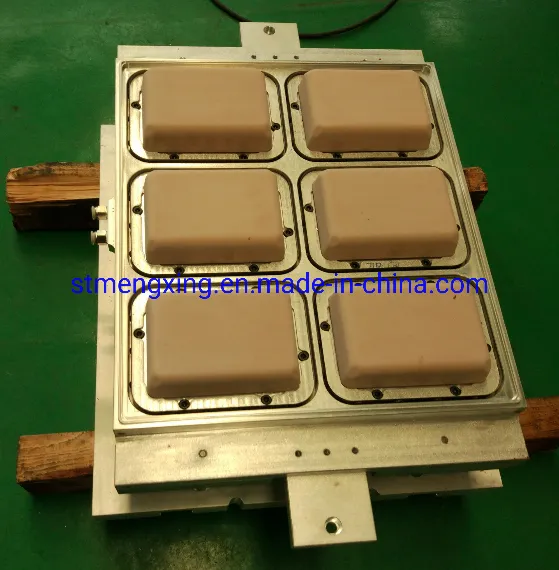

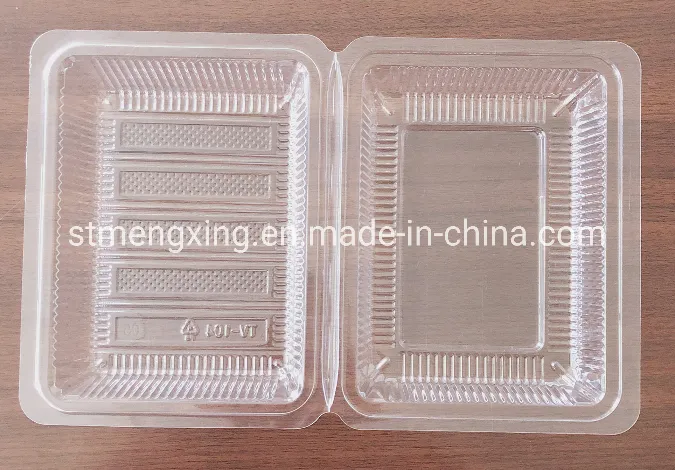

|Weight ( Ton )||≈12|V,Sample PictureVI,Mold Picture
|PLC Controller||Taiwan Delta|
|Touch screen Monitor ( 10.4″inch /Color )||Taiwan Delta|
|Feeding servo motor(4.5kw)||Taiwan Delta|
|Forming up/down mould servo motor(5.5kw)||Taiwan Delta|
|Heater(250pcs)||Germany Elstein /|
|Thermo relay||Germany Siemens|
|SSR||Switzerland Carlo Gavazzi|
|Vacuum pump||Germany Busch|
|Pneumatic component||Japan SMC|
|Cylinder||Japan SMC & Taiwan Airtec|
