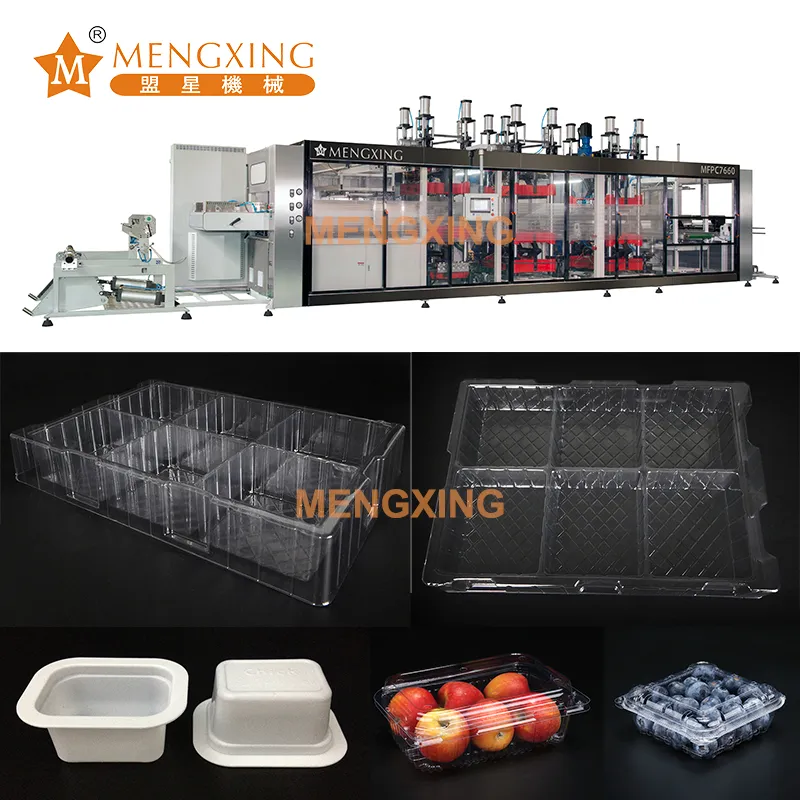

Vacuum Forming Machine Automatic Plastic Fruits Packages Box Tray Thermoforming Forming Tray Making Machine
![Vacuum Forming Machine Automatic Plastic Fruits Packages Box Tray Thermoforming Forming Tray Making Machine]()
I,Usage
The machine is designed for producing various of open-wide plastic containers, such as food trays, plastic trays, cosmetic trays , blister , clamshells , plates and other plastic related items .
II,Suitable Sheet
PVC,PP,PS,OPS,PET,APET,PETG Etc.
III,Structure Features
1. Mechanical, pneumatic and electrical combination, all working actions are controlled by PLC. Touch screen makes the operation convenient and easy.
2. Pressure And/Or Vacuum forming.
3. Up and down mold forming method.
4. Servo motor feeding, feeding length can be step-less adjusted. High speed and accurate.
5. Upper & lower heater, three sections heating
6. Heater with intellectual temperature control system, automatic supply the heating individual heater control. Fast heating(3 min from 0-400 degree), it won't be effected by outer voltage.
7.Forming,Punching,cutting unit mold open and close controlled by servo motor, products automatically count.
8.Data memorization function can store running data.
9.Stacking system: Downward stacking.
10.Feeding width can be synchronously or independently adjusted in electrical way.
11.Heater will automatically push-out when air pressure is not enough.
12.Auto roll sheet loading, Quick mold change system, reduce the working load.
IV,Technical Parameter
V,Technical Components

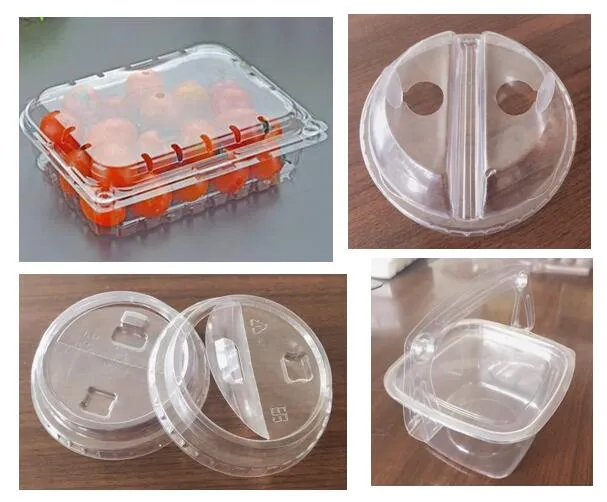

VI,Sample Pictures
![Vacuum Forming Machine Automatic Plastic Fruits Packages Box Tray Thermoforming Forming Tray Making Machine]()
VII,Certifications
![Vacuum Forming Machine Automatic Plastic Fruits Packages Box Tray Thermoforming Forming Tray Making Machine]()
VIII,Workshop Pictures
![Vacuum Forming Machine Automatic Plastic Fruits Packages Box Tray Thermoforming Forming Tray Making Machine]()
IX,Package
![Vacuum Forming Machine Automatic Plastic Fruits Packages Box Tray Thermoforming Forming Tray Making Machine]()
X,Exhibition
![Vacuum Forming Machine Automatic Plastic Fruits Packages Box Tray Thermoforming Forming Tray Making Machine]()
I,Usage
The machine is designed for producing various of open-wide plastic containers, such as food trays, plastic trays, cosmetic trays , blister , clamshells , plates and other plastic related items .
II,Suitable Sheet
PVC,PP,PS,OPS,PET,APET,PETG Etc.
III,Structure Features
1. Mechanical, pneumatic and electrical combination, all working actions are controlled by PLC. Touch screen makes the operation convenient and easy.
2. Pressure And/Or Vacuum forming.
3. Up and down mold forming method.
4. Servo motor feeding, feeding length can be step-less adjusted. High speed and accurate.
5. Upper & lower heater, three sections heating
6. Heater with intellectual temperature control system, automatic supply the heating individual heater control. Fast heating(3 min from 0-400 degree), it won't be effected by outer voltage.
7.Forming,Punching,cutting unit mold open and close controlled by servo motor, products automatically count.
8.Data memorization function can store running data.
9.Stacking system: Downward stacking.
10.Feeding width can be synchronously or independently adjusted in electrical way.
11.Heater will automatically push-out when air pressure is not enough.
12.Auto roll sheet loading, Quick mold change system, reduce the working load.
IV,Technical Parameter
| Parameter | MFPC7660(mode No.) | |
| Sheet width (mm) | 500-800 | |
| Sheet thickness (mm) | 0.1-1.5 | |
| Max.dia.of sheet roll (mm) | 800 | |
| Forming mold stroke (mm) | (Up ) 140,(down) 140 | |
| Mold clamping force/Punching force(ton) | 45 | |
| Max. forming area (mm2) | 760×600 | |
| Forming mold width (mm) | 500-760 | |
| Max. forming depth/height (mm) | 120/ 70 | |
| Cutting mold stroke(mm) | (up)80,(down)140 | |
| Max. cutting area (mm2) | 760×600 | |
| Cutting force(ton) | 60 | |
| Cycle (time/ min) | Max30 | |
| Cooling | Water cooling | |
| Gas source | Air supply (m3/min) | ≥2 |
| Pressure (MPa) | 0.6 | |
| Vacuum pump | Busch R5 0100 | |
| Power supply | 3 phase 4 line 380V50Hz | |
| Heater power (Kw) | 120 | |
| Max. general power (Kw) | 160 | |
| Dimension (L×W×H) (mm) | 14500×3200×3200 | |
| Weight ( Ton ) | ≈18 | |
V,Technical Components
| PLC | Taiwan Delta |
| Touch Screen Monitor ( 10.4″inch /Color ) | Taiwan Delta |
| Feeding servo motor(5.5kw) | Taiwan Delta |
| Forming up/down mold servo motor(4.5kw) | Taiwan Delta |
| Punching up/down mold servo motor(4.5kw) | Taiwan Delta |
| Cutting up/down mold servo motor(5.5+4.5kw/4.5kw) | Taiwan Delta |
| Stacking Servo motor (2kw) | Taiwan Delta |
| Feeding Chain | Germany Iwis |
| Heater(196 pcs) | Germany Elstein |
| Contactor | Germany Siemens |
| Overload Relay | Germany Siemens |
| Relay | Germany Weidmuller |
| Solid State Relay (SSR) | Switzerland Carlo Gavazzi |
| Vacuum Pump | Germany Busch |
| Electronic pressure sensor | Taiwan Delta |
| Automatic Lubrication Unit System | Taiwan ChenYing |
| Pneumatic Solenoid valve | Japan SMC |
| Pneumatic Cylinder | Taiwan Airtec |
VI,Sample Pictures
VII,Certifications
VIII,Workshop Pictures
IX,Package
X,Exhibition
Shantou Mengxing Package Machinery Co.,Ltd. offers factory price with best quality products. The feeding width can be synchronously or independently adjusted in an electrical way.
The growth prospect of the product is fueled by an increased demand from customers. The feeding width can be synchronously or independently adjusted in an electrical way.
