Qzc 50-80/120-Cwf Automatic Thermoforming Machine

这里可以自定义设置
Qzc 50-80/120-Cwf Automatic Thermoforming Machine
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障

Basic Info.

Model NO.
QZC50-80/120-CWF
HS Code
84774090

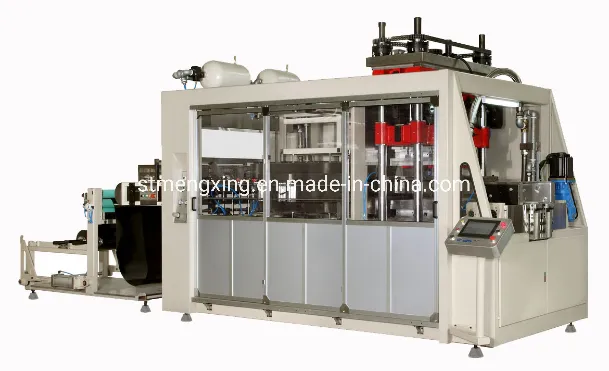

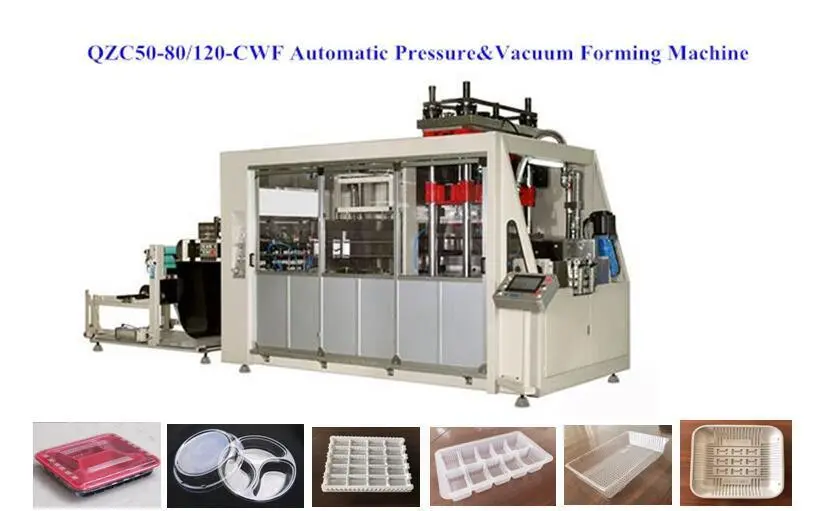

QZC50-80/120-CWF Automatic Pressure & Vacuum Forming Machine
Qzc 50-80/120-Cwf Automatic Thermoforming Machine

I,Features
01. Mechanical, pneumatic and electrical combination. All working actions are controlled by PLC with touch screen, very easy and convenient in operation.
02. Servo motor feeding, feeding length is steplessly adjusted, which is fast and accurate. (Max.speed:1000mm/s)
03 Heater with intellectual temperature control system an automatically supply the heating individual heater    control, which is convenient for temperature's uniformity.This system has advantages of easy operating, convenient, fast heating(only 5 min from 0-400degree), stable(won't be effected by outter voltage,temperature fluctuation is less than 1 degree),saving energy(about 15%) and long life of the usage of firebacks.
 04. ]Double heater(up and down) with sheet pro-heat equipment.
05. With sheet drooping detection and protection equipment.
06. Feeing sheet ahead of time. The machine has the automatically memory function of heating time to make the machine access the normal working situation at the very beginning.
07. Mould delay.
08. The forming up and down mould use the pneumatic double elbow system and the guide bushing uses inlay bearing with solid lubricant(JFB) to make the up and down mould work stably and accurately. The mould clamping force is large and good for improving the quality of the products.
09. Heater automatically push-out function make it possible to pur off and on the machine without cutting the sheet during the production procedure, then saving the sheet.
10 . The up and down moulds use electrically adjusting system, is high speed and convenient.
11. With quickly change mould equipment, pneumatically clamping.
12. The up mould equips assistant stretching air cylinder and the down mould equips assistant demoulding air cylinder.
13. The forming has several type to be chose---vacuum forming, pressure forming, vacuum and pressure forming.
14. Automatically roll sheet loading, ease the labour intensity.


II,Technical Parameter
ParameterQZC50-80/120-CWF (mode No.)
Available Sheet(mm) 500-760
 Sheet thickness(mm) 0.3-1.5
  Max.dia. of sheet roll(mm)600
 Up mould stroke(mm) 130
 Down mould stroke(mm)130
  Max.forming area(mm2)720×750
 Max.forming height(mm)70
 Max.forming depth(mm)100
  Capacity (Cycle/min)6-16
   Gas Source   Air supply (m3/min)≥3
 Pressure(MPa) 0.8
  Water consumption 4-5 Cube/Hour
  Vacuum pump  Busch R5 0100
 Power 380V/ 220V 50Hz
 Heater power (Kw)86.4
 Motor power (Kw) 8
 General power (Kw)96
 Dimension (L×W×H)(mm) About 7500×1800×2300
  Weight (Kgs)About 7800


III,Technical Equipments
 PLC  Taiwan Delta
Touch screen monitor ( 10.4″inch /Color )Taiwan Delta
 Feeding motor(4.5kw)Taiwan Delta
 HeaterGermany
 Solid voltage regulatorChina
 ContactorGermany  Siemens
 Thermo relayGermany  Siemens
 RelayGermany Weidmuller
 Vacuum pumpBusch  R5 0100
 PneumaticJapan  SMC
 CylinderChina

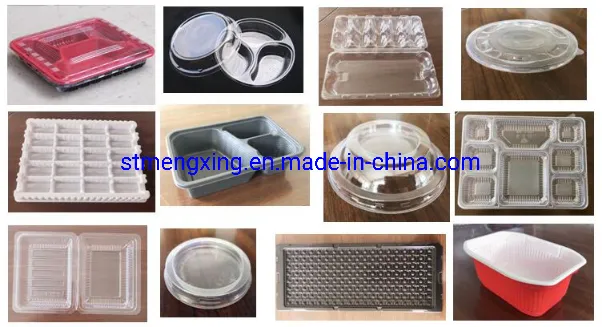

IV,Sample Pictures
Qzc 50-80/120-Cwf Automatic Thermoforming Machine


VII,Certifications
Qzc 50-80/120-Cwf Automatic Thermoforming Machine

VIII,Workshop Pictures
Qzc 50-80/120-Cwf Automatic Thermoforming Machine

X,Package


Qzc 50-80/120-Cwf Automatic Thermoforming Machine

XI,Exhibition
Qzc 50-80/120-Cwf Automatic Thermoforming Machine

This product would be a valuable asset for every investor because it is going to make any task an easy job. The product is popular for its data memorization function. High working efficiency and labor-saving are the forte of the product. People like to use it to improve production income. The product is popular for its data memorization function.
