PP/PVC/Pet/PS/PSP Automatic Disposable Plate/ Tray/ Pan/ Box/ Lid/ Container Plastic Thermoforming Machine Tray Making Machine Plastic Processing Machine-Mengxing

Basic Info.

Model NO.

Tray Making Machine

HS Code

84774090

PP/PET/PVC/PS/PSP Automatic Disposable Plate/ Tray/ Pan/ Box/ Lid/ Container Food Grade Plastic Thermoforming Machine Tray Making Machine Plastic Processing Machine

PP/PVC/Pet/PS/PSP Automatic Disposable Plate/ Tray/ Pan/ Box/ Lid/ Container Plastic Thermoforming Machine Tray Making Machine Plastic Processing Machine

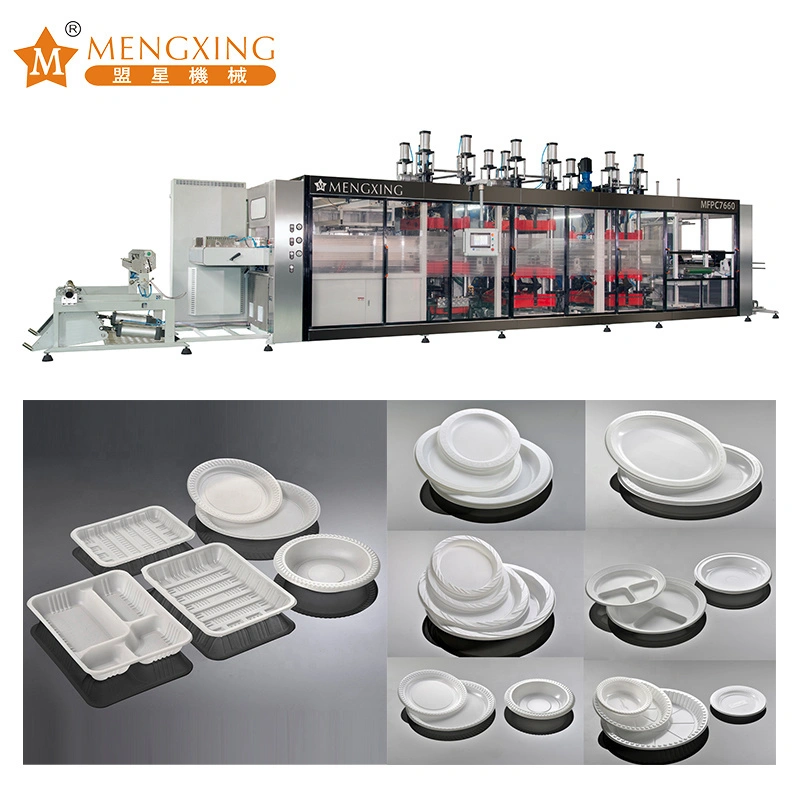

MFPC8260RD 4 Stations Pressure & Vacuum Forming Machine

I,Usage
The machine is designed for producing various of open-wide plastic containers, such as food trays, plastic trays, cosmetic trays , blister , clamshells , plates and other plastic related items .

II,Suitable Sheet
PVC,PP,PS,OPS,PET,APET,PETG, CPET Etc

III,Structure Features
1. Mechanical, pneumatic and electrical combination, all working actions are controlled by PLC. Touch screen makes the operation convenient and easy.
2. Pressure And/Or Vacuum forming.
3. Up and down mold forming method.
4. Servo motor feeding, feeding length can be step-less adjusted. High speed and accurate.
5. Upper & lower heater, three sections heating
6. Heater with intellectual temperature control system, automatic supply the heating individual heater control. Fast heating(3 min from 0-400 degree), it won't be effected by outer voltage.
7. Forming and cutting unit mold open and close controlled by servo motor, products automatically count.
8. Data memorization function can store 120 set of running data.
9. Products can be chose stacked upward or downward.
10. Feeding width can be synchronously or independently adjusted in electrical way.
11. Heater will automatically push-out when the sheet is over.
12. Auto roll sheet loading, reduce the working load.

IV,Technical Parameter

Sheet width (mm)		500-860
Sheet thickness (mm)		0.1-1.5
Max roll sheet diameter (mm)		800
Forming mold stroke (mm)		(Up ) 140,(down) 140
Mold clamping force/Punching force(ton)		45
Max forming area (mm2)		820×600
Forming mold width (mm)		500-820
Max forming depth/height (mm)		120/ 70
Cutting mold stroke(mm)		(up)80,(down)140
Max cutting area (mm2)		820×600
Cutting force(ton)		60
Cycle (time/ min)		Robot Stacking Max17
		Downward Stacking Max30
Cooling		Water cooling
Air supply	volume (m3/ min)	≥2
	Air pressure (MPa)	0.8
Vacuum pump		Busch R5 0100
Power supply		3 phase 4 line 380V50Hz
Heater power (kw)		120
Max general power (kw)		160
Dimension (L×W×H) (mm)		14500×3200×3200
Weight ( Ton )		≈19

V,Technical Components

PLC	Taiwan Delta
Touch Screen Monitor ( 10.4″inch /Color )	Taiwan Delta
Feeding servo motor(5.5kw)	Taiwan Delta
Forming up/down mold servo motor(4.5kw)	Taiwan Delta
Punching up/down mold servo motor(4.5kw)	Taiwan Delta
Cutting up/down mold servo motor(5.5+4.5kw/4.5kw)	Taiwan Delta
Robot Servo motor (2kw+2kw)	Taiwan Delta
Feeding Chain	Germany Iwis
Heater(196 pcs)	Germany Elstein
Contactor	Germany Siemens
Overload Relay	Germany Siemens
Relay	Germany Weidmuller
Solid State Relay (SSR)	Switzerland Carlo Gavazzi
Vacuum Pump	Germany Busch
Electronic pressure sensor	Taiwan Delta
Automatic Lubrication Unit System	Taiwan ChenYing
Pneumatic Solenoid valve	JAPAN SMC
Pneumatic Cylinder	JAPAN SMC & Taiwan Airtac

IV,Sample Pictures

VII,Certifications

VIII,Workshop Pictures

IX,Package

PP/PVC/Pet/PS/PSP Automatic Disposable Plate/ Tray/ Pan/ Box/ Lid/ Container Plastic Thermoforming Machine Tray Making Machine Plastic Processing Machine

X,Exhibition
PP/PVC/Pet/PS/PSP Automatic Disposable Plate/ Tray/ Pan/ Box/ Lid/ Container Plastic Thermoforming Machine Tray Making Machine Plastic Processing Machine

It is created not only to fulfill the ambitions of customers but also to add value to their business. The feeding width can be synchronously or independently adjusted in an electrical way. vacuum forming machine is produced by superior material and advanced technology. The feeding width can be synchronously or independently adjusted in an electrical way.
