QZC50-80/120-CWF
HS Code
84774090

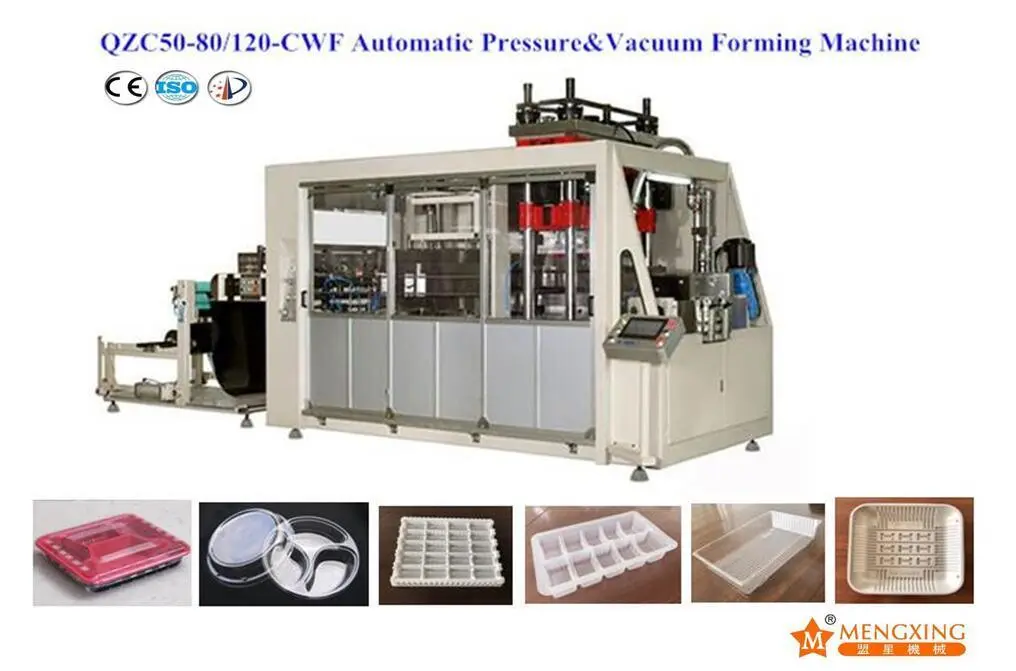

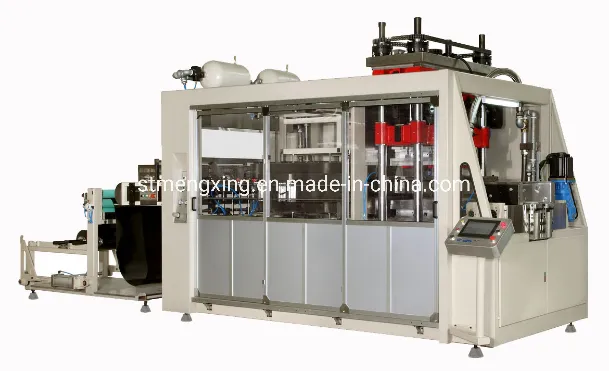

QZC50-80/120-CWF Automatic Pressure & Vacuum Forming Machine
![Plastic Thermoforming Machine for Pet, PP, HIPS, OPS, PVC]()
I,Features
01. Mechanical, pneumatic and electrical combination. All working actions are controlled by PLC with touch screen, very easy and convenient in operation.
02. Servo motor feeding, feeding length is steplessly adjusted, which is fast and accurate. (Max.speed:1000mm/s)
03 Heater with intellectual temperature control system an automatically supply the heating individual heater control, which is convenient for temperature's uniformity.This system has advantages of easy operating, convenient, fast heating(only 5 min from 0-400degree), stable(won't be effected by outter voltage,temperature fluctuation is less than 1 degree),saving energy(about 15%) and long life of the usage of firebacks.
04. ]Double heater(up and down) with sheet pro-heat equipment.
05. With sheet drooping detection and protection equipment.
06. Feeing sheet ahead of time. The machine has the automatically memory function of heating time to make the machine access the normal working situation at the very beginning.
07. Mould delay.
08. The forming up and down mould use the pneumatic double elbow system and the guide bushing uses inlay bearing with solid lubricant(JFB) to make the up and down mould work stably and accurately. The mould clamping force is large and good for improving the quality of the products.
09. Heater automatically push-out function make it possible to pur off and on the machine without cutting the sheet during the production procedure, then saving the sheet.
10 . The up and down moulds use electrically adjusting system, is high speed and convenient.
11. With quickly change mould equipment, pneumatically clamping.
12. The up mould equips assistant stretching air cylinder and the down mould equips assistant demoulding air cylinder.
13. The forming has several type to be chose---vacuum forming, pressure forming, vacuum and pressure forming.
14. Automatically roll sheet loading, ease the labour intensity.
II,Technical Parameter
III,Technical Equipments

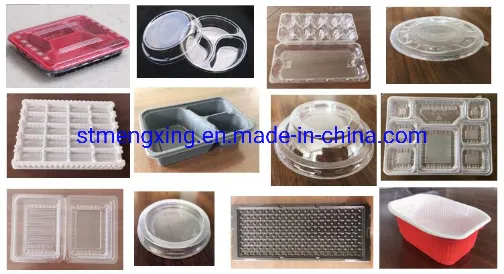

IV,Sample Pictures
![Plastic Thermoforming Machine for Pet, PP, HIPS, OPS, PVC]()
VII,Certifications
![Plastic Thermoforming Machine for Pet, PP, HIPS, OPS, PVC]()
VIII,Workshop Pictures
![Plastic Thermoforming Machine for Pet, PP, HIPS, OPS, PVC]()
X,Package
![Plastic Thermoforming Machine for Pet, PP, HIPS, OPS, PVC]()
X,Exhibition
![Plastic Thermoforming Machine for Pet, PP, HIPS, OPS, PVC]()
I,Features
01. Mechanical, pneumatic and electrical combination. All working actions are controlled by PLC with touch screen, very easy and convenient in operation.
02. Servo motor feeding, feeding length is steplessly adjusted, which is fast and accurate. (Max.speed:1000mm/s)
03 Heater with intellectual temperature control system an automatically supply the heating individual heater control, which is convenient for temperature's uniformity.This system has advantages of easy operating, convenient, fast heating(only 5 min from 0-400degree), stable(won't be effected by outter voltage,temperature fluctuation is less than 1 degree),saving energy(about 15%) and long life of the usage of firebacks.
04. ]Double heater(up and down) with sheet pro-heat equipment.
05. With sheet drooping detection and protection equipment.
06. Feeing sheet ahead of time. The machine has the automatically memory function of heating time to make the machine access the normal working situation at the very beginning.
07. Mould delay.
08. The forming up and down mould use the pneumatic double elbow system and the guide bushing uses inlay bearing with solid lubricant(JFB) to make the up and down mould work stably and accurately. The mould clamping force is large and good for improving the quality of the products.
09. Heater automatically push-out function make it possible to pur off and on the machine without cutting the sheet during the production procedure, then saving the sheet.
10 . The up and down moulds use electrically adjusting system, is high speed and convenient.
11. With quickly change mould equipment, pneumatically clamping.
12. The up mould equips assistant stretching air cylinder and the down mould equips assistant demoulding air cylinder.
13. The forming has several type to be chose---vacuum forming, pressure forming, vacuum and pressure forming.
14. Automatically roll sheet loading, ease the labour intensity.
II,Technical Parameter
| Parameter | QZC50-80/120-CWF (mode No.) | |
| Available Sheet(mm) | 500-760 | |
| Sheet thickness(mm) | 0.3-1.5 | |
| Max.dia. of sheet roll(mm) | 600 | |
| Up mould stroke(mm) | 130 | |
| Down mould stroke(mm) | 130 | |
| Max.forming area(mm2) | 720×750 | |
| Max.forming height(mm) | 70 | |
| Max.forming depth(mm) | 100 | |
| Capacity (Cycle/min) | 6-16 | |
| Gas Source | Air supply (m3/min) | ≥3 |
| Pressure(MPa) | 0.8 | |
| Water consumption | 4-5 Cube/Hour | |
| Vacuum pump | Busch R5 0100 | |
| Power | 380V/ 220V 50Hz | |
| Heater power (Kw) | 86.4 | |
| Motor power (Kw) | 8 | |
| General power (Kw) | 96 | |
| Dimension (L×W×H)(mm) | About 7500×1800×2300 | |
| Weight (Kgs) | About 7800 | |
III,Technical Equipments
| PLC | Taiwan Delta |
| Touch screen monitor ( 10.4″inch /Color ) | Taiwan Delta |
| Feeding motor(4.5kw) | Taiwan Delta |
| Heater | Germany |
| Solid voltage regulator | China |
| Contactor | Germany Siemens |
| Thermo relay | Germany Siemens |
| Relay | Germany Weidmuller |
| Vacuum pump | Busch R5 0100 |
| Pneumatic | Japan SMC |
| Cylinder | China |
IV,Sample Pictures
VII,Certifications
VIII,Workshop Pictures
X,Package
X,Exhibition
