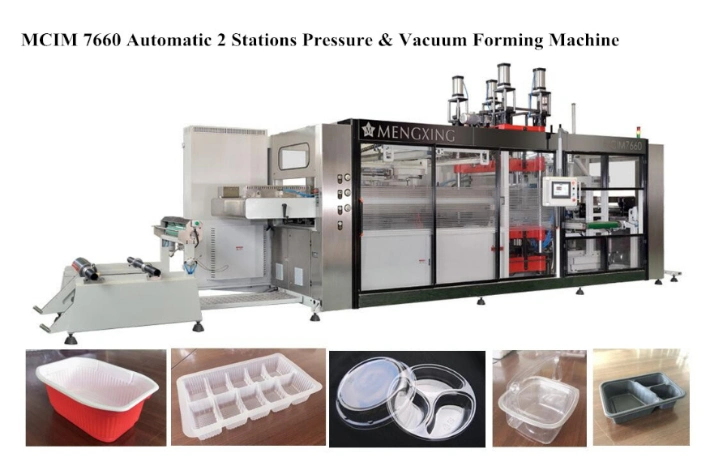

Plastic Boxes Forming Machine for BOPS Material (MCIM 7660)
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障

Basic Info.

Model NO.
MCIM 7660
HS Code
8401200000

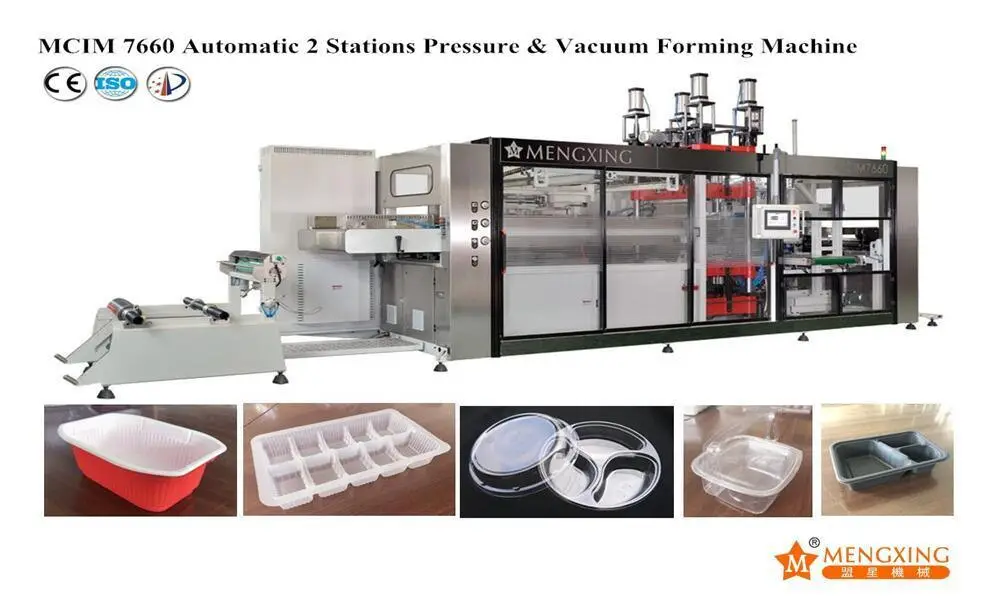

Plastic Boxes Forming Machine for BOPS Material (MCIM 7660)

I,Usage
This machine is designed for producing all size packaging containers, in open-type with thin wall, by using roll-sheet, under high-speed vacuum suction-forming processing. The products made by this machine can be used for the package of foods, tourist-goods, textile, medical, toy, cosmetic, electrical elements and daily used hard-ware, etc.
Suitable Sheet
Starch-deposit sheets, light-deposit sheet, environment sheet, APET, PETG. PVC, HIPS, PET, PS, OPS,etc.

II,Structure Feature
1.  Mechanical, pneumatic and electrical combination, all working actions are controlled by PLC. Touch screen makes the operation convenient and easy.
2.  Forming type: pressure and vacuum forming
3.  Up/down mould forming type.
4.  Servo motor feeding, feeding length can be step-less adjusted. High speed and accurate.
5.  Up heater with 4 sections heating, down heater with 3 sections heating. With sheet edge    preheating.
6.  With sheet edge preheating. Avoid sheet broken.
7.  Heater with intellectual temperature control system, automatic supply the heating individual heater control. Fast heating(3 min from 0-400 degree), it won't be effected by outer voltage
8.  Forming and cutting station open/close mould controlled by servo motor, high cutting precision. products automatically accounting output.
9.  Stacking type: downward stacking/manipulator stacking.
10. With products details and running data memorization function.
11. With quickly changing mould system, , more efficient.
12. Feeding width can be synchronously or independently adjusted in electrical way.
13. Heater automatically push-out when the sheet is over
14. Auto roll sheet loading, reduce the working load.

III,Technical Parameter
ParameterMCIM 7660(mode No.)
Sheet width range(mm)500-800
Available sheet thickness (mm)0.2-1.5
Max.dia.of sheet roll (mm)800
Forming mould stroke (mm)Up mould: 140,Down mould: 210
Locking mould force(ton)30
Max. forming area (mm2)760×600
Min. forming area (mm2)500×380
Forming mould width (mm)500-760
Forming mould length(mm)460-600
Max.forming depth/height (mm)Manipulator :90 /80; Downward stacking:175/125
Cutting force(ton)45
Stacking methodDownward stacking/Manipulator stacking
Cycle time (cycle/ min)Manipulator: Max18;Downward stacking:Max30
Cooling OutletWater cooling
Air sourceAir supply(m3/ min)≥5
Pressure (MPa)0.8
Vacuum pumpBusch R5 0100
Power supply3 phase 4 lines 380V50Hz
Heater power (Kw)150
General power (Kw)200
Dimension (L×W×H) (mm)10040×2600×3400
Weight ( Ton )≈12

IV,Technical Configuration

PLC  ControllerTaiwan Delta
Touch screen Monitor ( 10.4inch /Color )Taiwan Delta
Feeding servo motor(4.5kw)Taiwan Delta
Forming up/down mould servo motor(5.5kw)Taiwan Delta
Heater(250pcs)Germany Elstein /
Ireland Ceramicx
ContactorGermany Siemens
Thermo relayGermany Siemens
RelayGermany Weidmuller
SSR Switzerland Carlo Gavazzi
Vacuum pumpGermany Busch
Pneumatic componentJapan SMC
CylinderJapan SMC & Taiwan Airtec

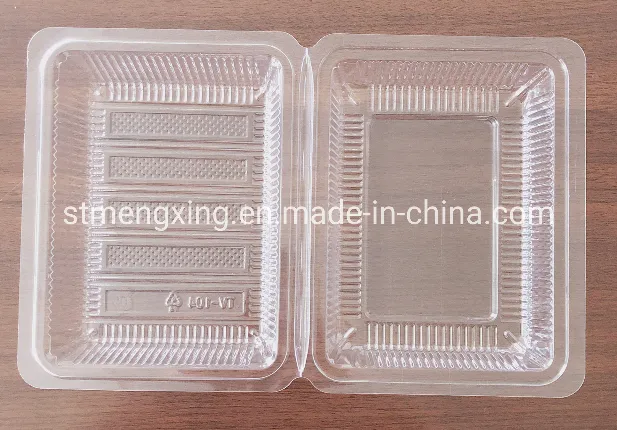

V,Sample Pictures
Plastic Boxes Forming Machine for BOPS Material (MCIM 7660)

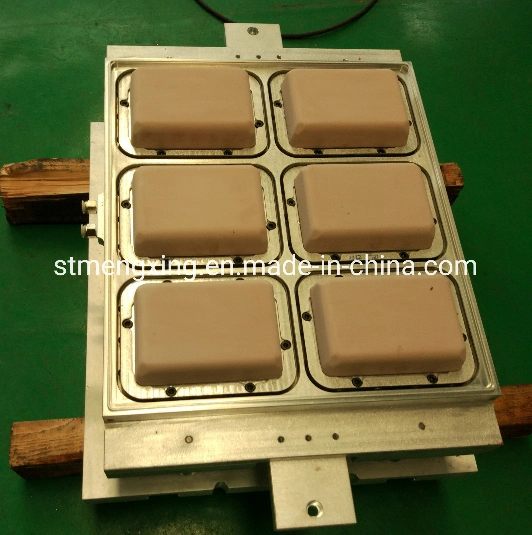

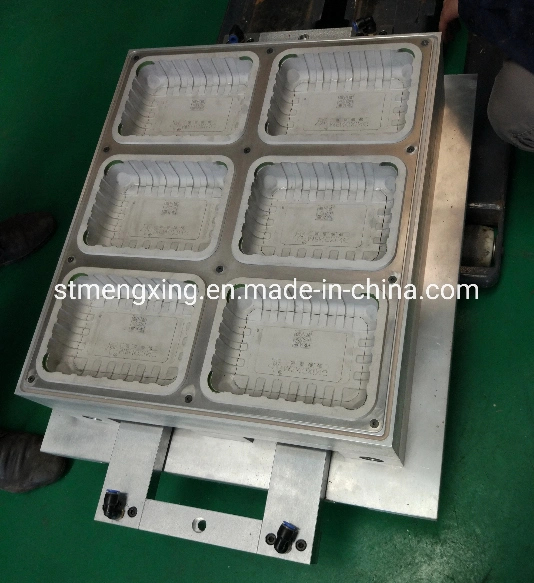

VI,Mold Picture
Plastic Boxes Forming Machine for BOPS Material (MCIM 7660)   Plastic Boxes Forming Machine for BOPS Material (MCIM 7660)


VII,Certifications
Plastic Boxes Forming Machine for BOPS Material (MCIM 7660)

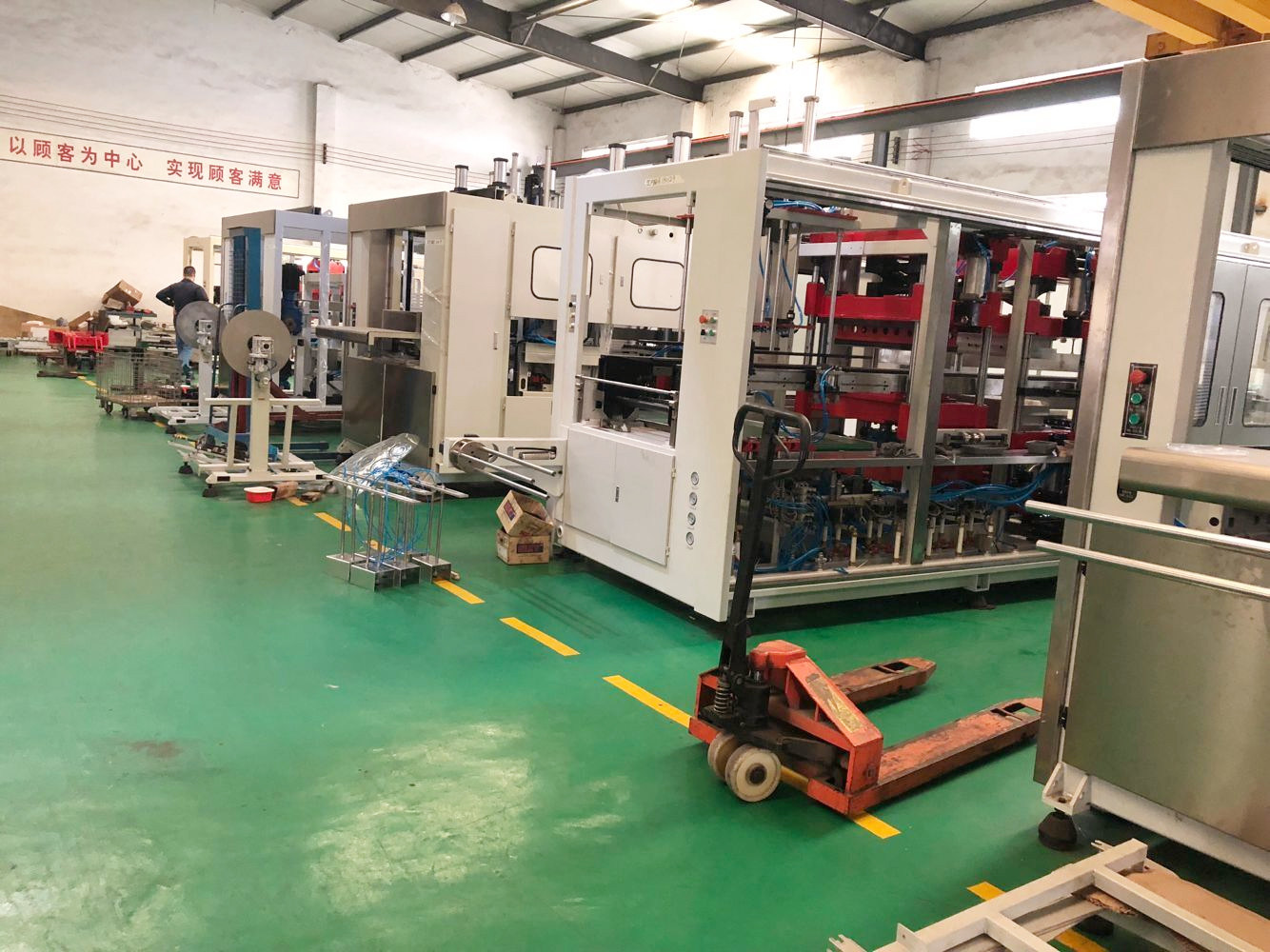

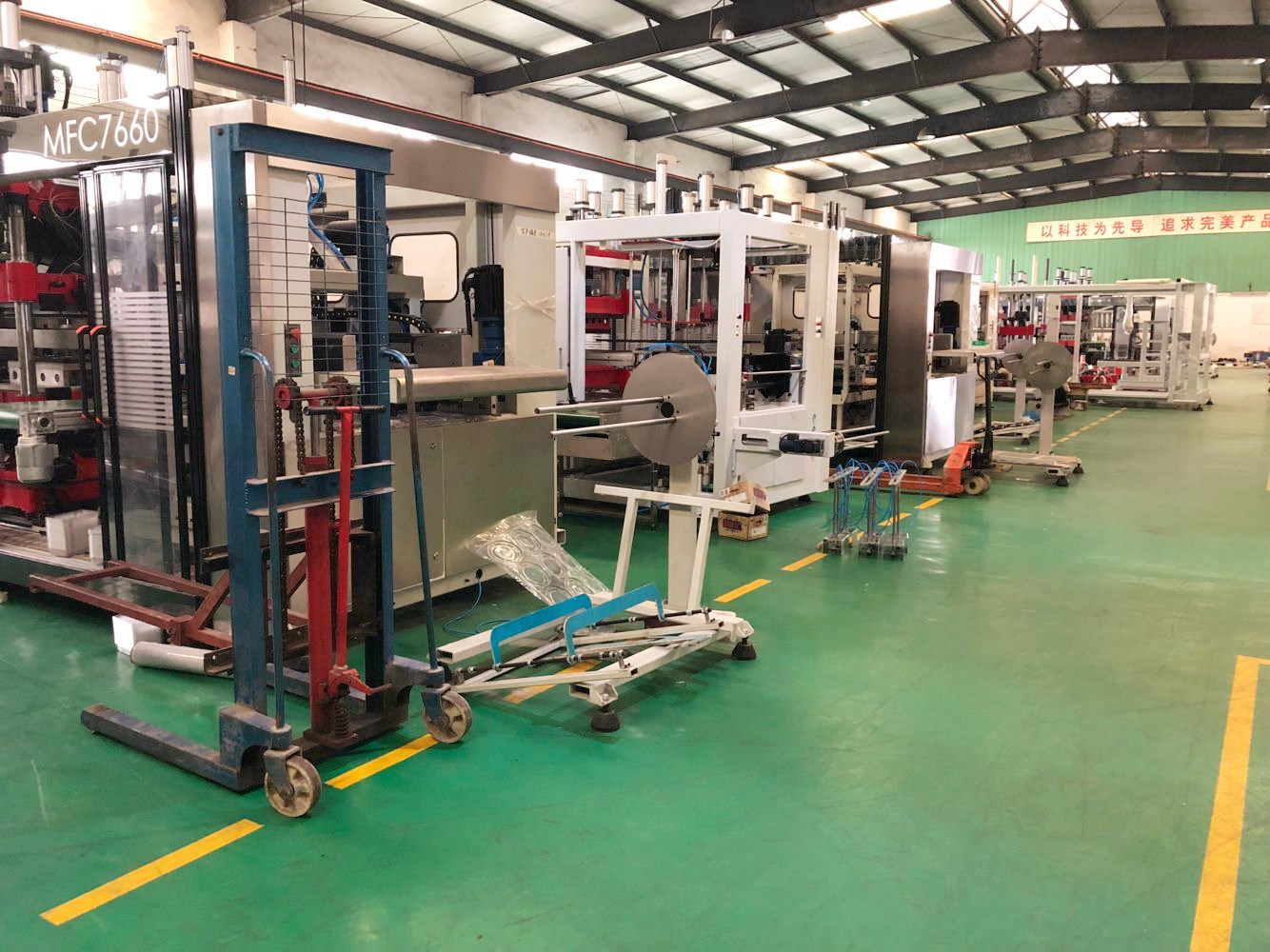

VIII,Workshop Pictures
Plastic Boxes Forming Machine for BOPS Material (MCIM 7660)


IX,Package


Plastic Boxes Forming Machine for BOPS Material (MCIM 7660)

X,Exhibition
Plastic Boxes Forming Machine for BOPS Material (MCIM 7660)
This kind of product can improve the working efficiency of work staff. The operation process is very simple and convenient. It is exported to the Middle East, North Africa, North America, Europe, and other countries and regions. This product can bring huge benefits for business owners, such as its incredible safety. It can ensure a decrease in work accidents. It is exported to the Middle East, North Africa, North America, Europe, and other countries and regions.
