Vacuum Forming Machine

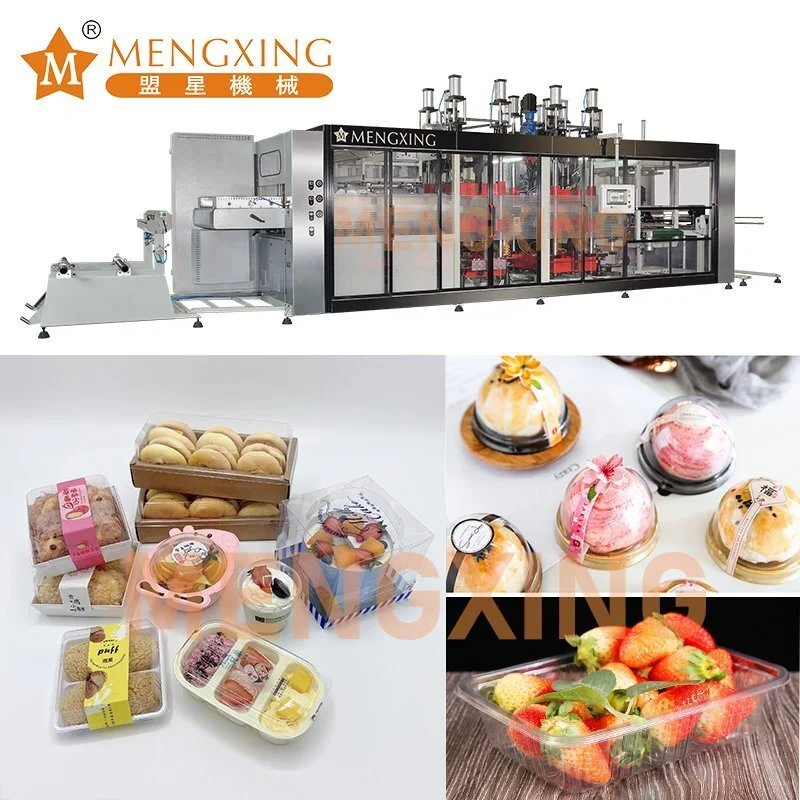

OPS Sushi Lid Cover Forming Machine Fully Automatic Thermoforming Machine Plastic Processing Machine PP Food Container Vacuum Forming Machine
I,Usage
This machine is designed for producing all size packaging containers, in open-type with thin wall, by using roll-sheet, under high-speed vacuum suction-forming processing. The products made by this machine can be used for the package of foods, tourist-goods, textile, medical, toy, cosmetic, electrical elements and daily used hard-ware, etc.
Suitable Sheet
Starch-deposit sheets, light-deposit sheet, environment sheet, APET, PETG. PVC, HIPS, PET, PS, OPS,etc.
II,Structure Feature
1. Mechanical, pneumatic and electrical combination, all working actions are controlled by PLC. Touch screen makes the operation convenient and easy.
2. Forming type: pressure and vacuum forming
3. Up/down mould forming type.
4. Servo motor feeding, feeding length can be step-less adjusted. High speed and accurate.
5. Up heater with 4 sections heating, down heater with 3 sections heating. With sheet edge preheating.
6. With sheet edge preheating. Avoid sheet broken.
7. Heater with intellectual temperature control system, automatic supply the heating individual heater control. Fast heating(3 min from 0-400 degree), it won't be effected by outer voltage
8. Forming and cutting station open/close mould controlled by servo motor, high cutting precision. products automatically accounting output.
9. Stacking type: downward stacking/manipulator stacking.
10. With products details and running data memorization function.
11. With quickly changing mould system, , more efficient.
12. Feeding width can be synchronously or independently adjusted in electrical way.
13. Heater automatically push-out when the sheet is over
14. Auto roll sheet loading, reduce the working load.III,Technical Parameter | Sheet width (mm) | 500-800 |
| Sheet thickness (mm) | 0.2-1.5 |
| Max roll sheet diameter (mm) | 800 |
| Forming mold stroke (mm) | (Up ) 80,(down) 140 |
| Max forming area (mm2) | 760×600 |
| Min forming area (mm2) | 500×460 |
| Forming mold width (mm) | 500-760 |
| Forming mold length (mm) | 460-600 |
| Max forming depth/height (mm) | 100 / 70 |
| Cutting force(ton) | 45 |
| Cycle (time/ min) | Max20 |
| Cooling | Water cooling |
| Air supply | volume (m3/ min) | ≥2 |
| Air pressure (MPa) | 0.8 |
| Vacuum pump | Busch R5 0100 |
| Power supply | 3 phase 4 line 380V50Hz |
| Heater power (kw) | 120 |
| Max general power (kw) | 140 |
| Dimension (L×W×H) (mm) | 10540×3200×2530 |
| Weight ( Ton ) | ≈10 |
| PLC | Taiwan Delta |
| Touch Screen Monitor ( 10.4″inch /Color ) | Taiwan Delta |
| Feeding servo motor(4.5kw) | Taiwan Delta |
| Forming up/down mold servo motor(4.5kw) | Taiwan Delta |
| Cutting servo motor(5.5kw) | Taiwan Delta |
| Heater(222 pcs) | Germany Elstein |
| Contactor | Germany Siemens |
| Thermo Relay | Germany Siemens |
| Relay | Germany Weidmuller |
| Vacuum Pump | Germany Busch |
| Electronic pressure sensor | Taiwan Delta |
| Pneumatic | JAPAN SMC |
| Cylinder | CHINA |
