    Basic Info.

    Model NO.
    MFPC 7660
    OEM Service
    Offer
    Trademark
    Mengxing
    Transport Package
    as Standard Export Packaging
    Specification
    12540*3200*2530mm
    Origin
    Shantou, Guangdong, China

    Mfpc7660 Full-Auto 4 Stations Pressure & Vacuum Forming Machine
    I,Usage
    The machine is designed for producing various of open-wide plastic containers, such as food trays, plastic trays, cosmetic trays , blister , clamshells , plates and other plastic related items .

    II,Suitable Sheet
    PVC,PP,PS,OPS,PET,APET,PETG, CPET Etc

    III,Structure Features
    1. Mechanical, pneumatic and electrical combination, all working actions are controlled by PLC. Touch screen makes the operation convenient and easy.
    2. Pressure And/Or Vacuum forming.
    3. Up and down mold forming method.
    4. Servo motor feeding, feeding length can be step-less adjusted. High speed and accurate.
    5. Upper & lower heater, three sections heating
    6. Heater with intellectual temperature control system, automatic supply the heating individual heater control. Fast heating(3 min from 0-400 degree), it won't be effected by outer voltage.
    7. Forming and cutting unit mold open and close controlled by servo motor, products automatically count.
    8. Data memorization function can store 120 set of running data.
    9. Products can be chose stacked upward or downward.
    10. Feeding width can be synchronously or independently adjusted in electrical way.
    11. Heater will automatically push-out when the sheet is over.
    12. Auto roll sheet loading, reduce the working load.

    IV,Technical Parameter
    ParameterMFC 7660(mode No.)
    Sheet width (mm)500-800
    Sheet thickness (mm)0.2-1.5
    Max.dia.of sheet roll (mm)800
    Forming mold stroke (mm)(Up ) 140,(down) 140
    Mold cutting force(ton)45
    Max.forming area (mm2)760×600
    Min.forming area (mm2)500×460
    Forming mold width (mm)500-760
    Forming mold length (mm)460-600
    Max.forming depth/height (mm)125 / 70
    Cutting mold stroke(mm)up mold:80,
    down mold:140
    Max.cutting area (mm2)760×600
    Cutting force(ton)45
    Cycle (time/ min)Max.35
    Product cooling methodBy water cooling
    Air source(outer)Air supply(m3/ min)≥2
    Pressure (MPa)0.8
    Vacuum pumpBusch R5 0100
    Power supply3 phase 4 line 380V50Hz
    Heating power (Kw)120
    Max.power of whole machine(Kw)150
    Dimension (L×W×H) (mm)12540×3200×2530
    Weight ( T )≈13

    V,Technical Components
    PLC Taiwan Delta
    Touch Screen Monitor ( 10.4″inch /Color )Taiwan Delta
    Feeding servo motor(4.5kw)Taiwan Delta
    Forming up/down mold servo motor(4.5kw)Taiwan Delta
    Cutting up/down mold servo motor(4.5kw/5.5kw)Taiwan Delta
    Heater(222 pcs)Germany Elstein
    ContactorGermany Siemens
    Thermo RelayGermany Siemens
    RelayGermany Weidmuller
    Vacuum PumpGermany  Busch
    Electronic pressure sensorTaiwan Delta
    PneumaticJapan SMC
    CylinderChina

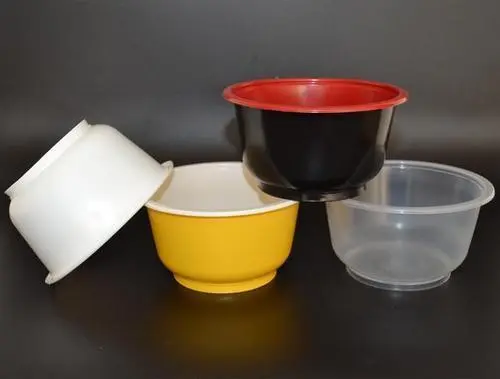

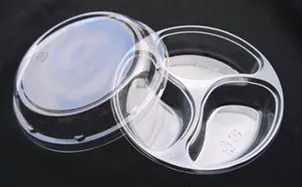

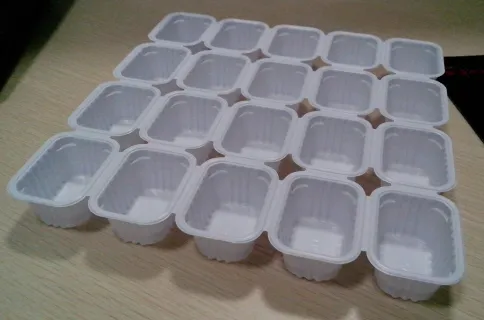

    VI,Sample Pictures
      Mfpc7660 Full-Auto 4 Stations Pressure & Vacuum Forming Machine     Mfpc7660 Full-Auto 4 Stations Pressure & Vacuum Forming Machine
    Mfpc7660 Full-Auto 4 Stations Pressure & Vacuum Forming Machine   Mfpc7660 Full-Auto 4 Stations Pressure & Vacuum Forming Machine


    VII,Certifications
    Mfpc7660 Full-Auto 4 Stations Pressure & Vacuum Forming Machine

    VIII,Workshop Pictures
    Mfpc7660 Full-Auto 4 Stations Pressure & Vacuum Forming Machine


    IX,Package


    Mfpc7660 Full-Auto 4 Stations Pressure & Vacuum Forming Machine

    X,Exhibition
    Mfpc7660 Full-Auto 4 Stations Pressure & Vacuum Forming Machine


    Shantou Mengxing Package Machinery Co.,Ltd. offers factory price with best quality products. The item produced by it is in a strict line with the food packaging requirements. Shantou Mengxing Package Machinery Co.,Ltd. has absorbed the advantages of advanced vacuum forming machine at home and abroad. The item produced by it is in a strict line with the food packaging requirements.
