Mengxing 2 Stations BOPS Forming Machine (cutting in mold)

这里可以自定义设置
Mengxing 2 Stations BOPS Forming Machine (cutting in mold)
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障

Basic Info.

Model NO.
MCIM 7660
HS Code
8401200000

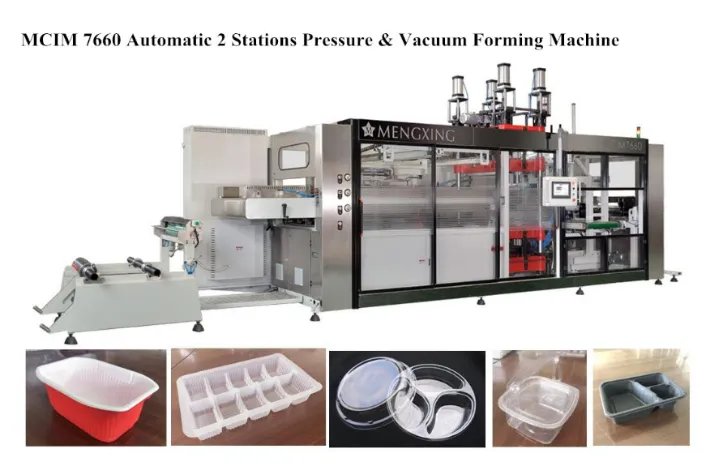

Mengxing 2 Stations BOPS Forming Machine (cutting in mold)

I,Usage
This machine is designed for producing all size packaging containers, in open-type with thin wall, by using roll-sheet, under high-speed vacuum suction-forming processing. The products made by this machine can be used for the package of foods, tourist-goods, textile, medical, toy, cosmetic, electrical elements and daily used hard-ware, etc.
Suitable Sheet
Starch-deposit sheets, light-deposit sheet, environment sheet, APET, PETG. PVC, HIPS, PET, PS, OPS,etc.

II,Structure Feature
1.  Mechanical, pneumatic and electrical combination, all working actions are controlled by PLC. Touch screen makes the operation convenient and easy.
2.  Forming type: pressure and vacuum forming
3.  Up/down mould forming type.
4.  Servo motor feeding, feeding length can be step-less adjusted. High speed and accurate.
5.  Up heater with 4 sections heating, down heater with 3 sections heating. With sheet edge    preheating.
6.  With sheet edge preheating. Avoid sheet broken.
7.  Heater with intellectual temperature control system, automatic supply the heating individual heater control. Fast heating(3 min from 0-400 degree), it won't be effected by outer voltage
8.  Forming and cutting station open/close mould controlled by servo motor, high cutting precision. products automatically accounting output.
9.  Stacking type: downward stacking/manipulator stacking.
10. With products details and running data memorization function.
11. With quickly changing mould system, , more efficient.
12. Feeding width can be synchronously or independently adjusted in electrical way.
13. Heater automatically push-out when the sheet is over
14. Auto roll sheet loading, reduce the working load.

III,Technical Parameter
ParameterMCIM 7660(mode No.)
Sheet width range(mm)500-800
Available sheet thickness (mm)0.2-1.5
Max.dia.of sheet roll (mm)800
Forming mould stroke (mm)Up mould: 140,Down mould: 210
Locking mould force(ton)30
Max. forming area (mm2)760×600
Min. forming area (mm2)500×380
Forming mould width (mm)500-760
Forming mould length(mm)460-600
Max.forming depth/height (mm)Manipulator :90 /80; Downward stacking:175/125
Cutting force(ton)45
Stacking methodDownward stacking/Manipulator stacking
Cycle time (cycle/ min)Manipulator: Max18;Downward stacking:Max30
Cooling OutletWater cooling
Air sourceAir supply(m3/ min)≥5
Pressure (MPa)0.8
Vacuum pumpBusch R5 0100
Power supply3 phase 4 lines 380V50Hz
Heater power (Kw)150
General power (Kw)200
Dimension (L×W×H) (mm)10040×2600×3400
Weight ( Ton )≈12

IV,Technical Configuration

PLC  ControllerTaiwan Delta
Touch screen Monitor ( 10.4inch /Color )Taiwan Delta
Feeding servo motor(4.5kw)Taiwan Delta
Forming up/down mould servo motor(5.5kw)Taiwan Delta
Heater(250pcs)Germany Elstein /
Ireland Ceramicx
ContactorGermany Siemens
Thermo relayGermany Siemens
RelayGermany Weidmuller
SSR Switzerland Carlo Gavazzi
Vacuum pumpGermany Busch
Pneumatic componentJapan SMC
CylinderJapan SMC & Taiwan Airtec

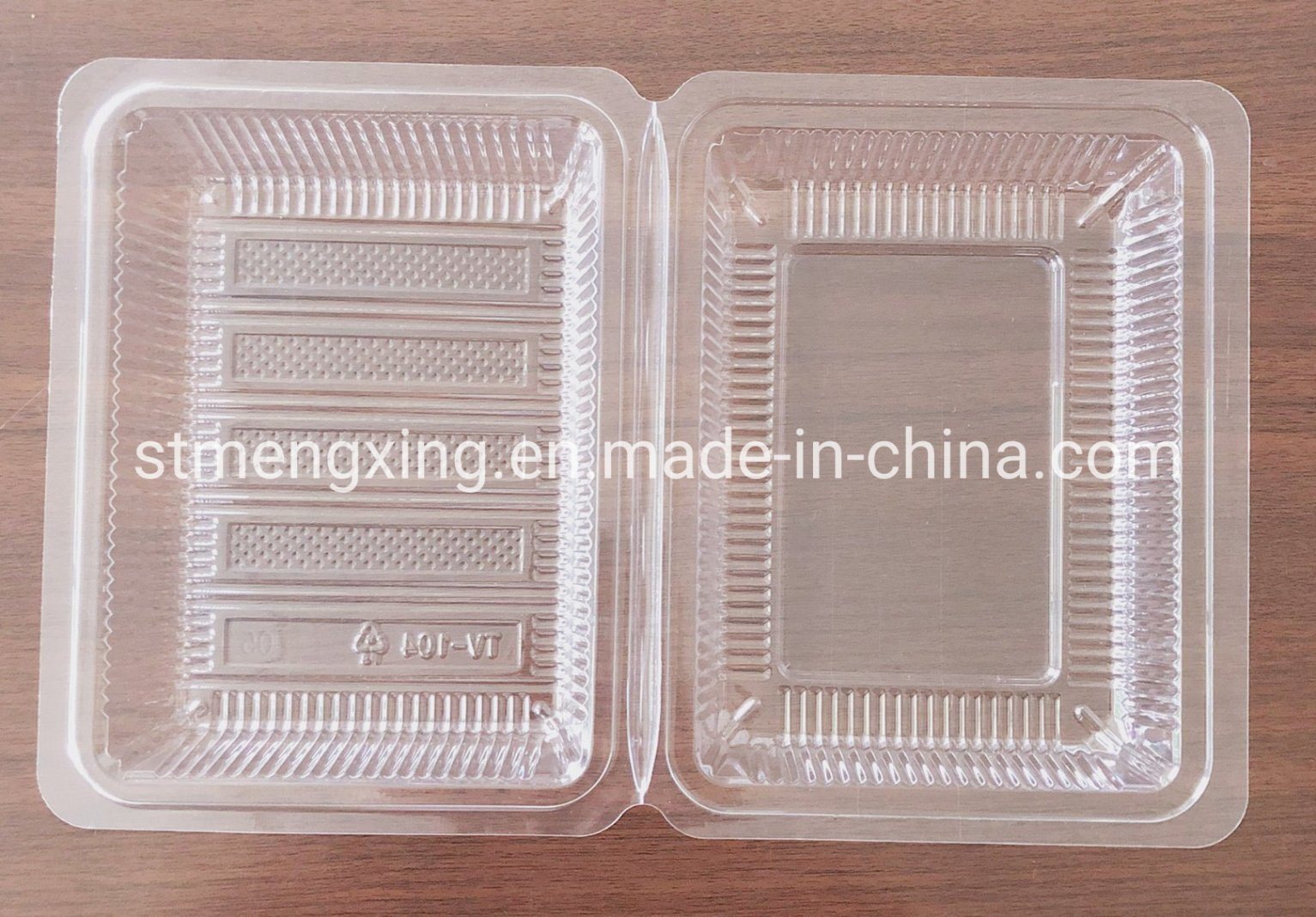

V,Sample Pictures
Mengxing 2 Stations BOPS Forming Machine (cutting in mold)

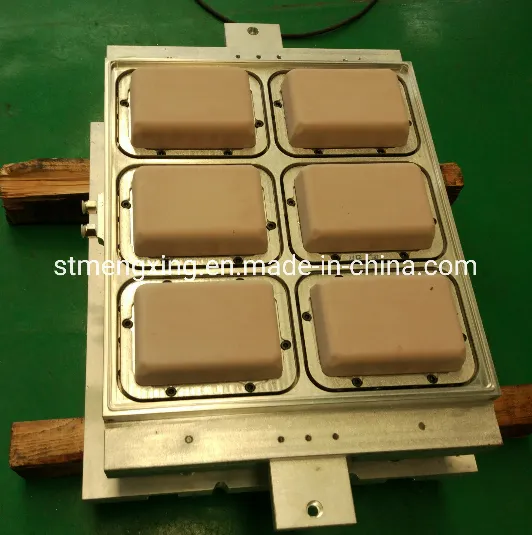

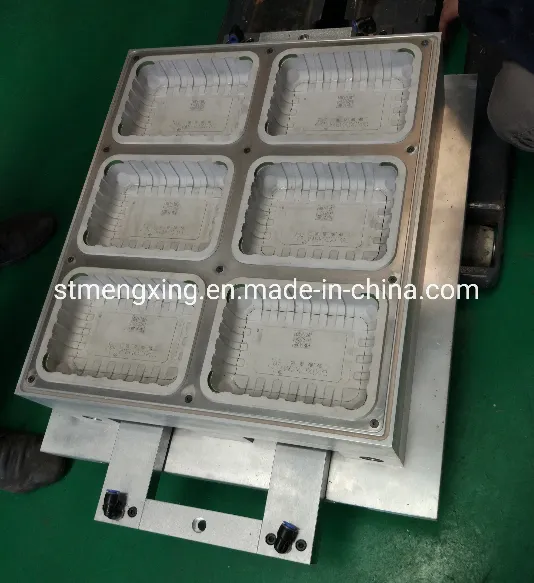

VI,Mold Picture
Mengxing 2 Stations BOPS Forming Machine (cutting in mold)   Mengxing 2 Stations BOPS Forming Machine (cutting in mold)


VII,Certifications
Mengxing 2 Stations BOPS Forming Machine (cutting in mold)

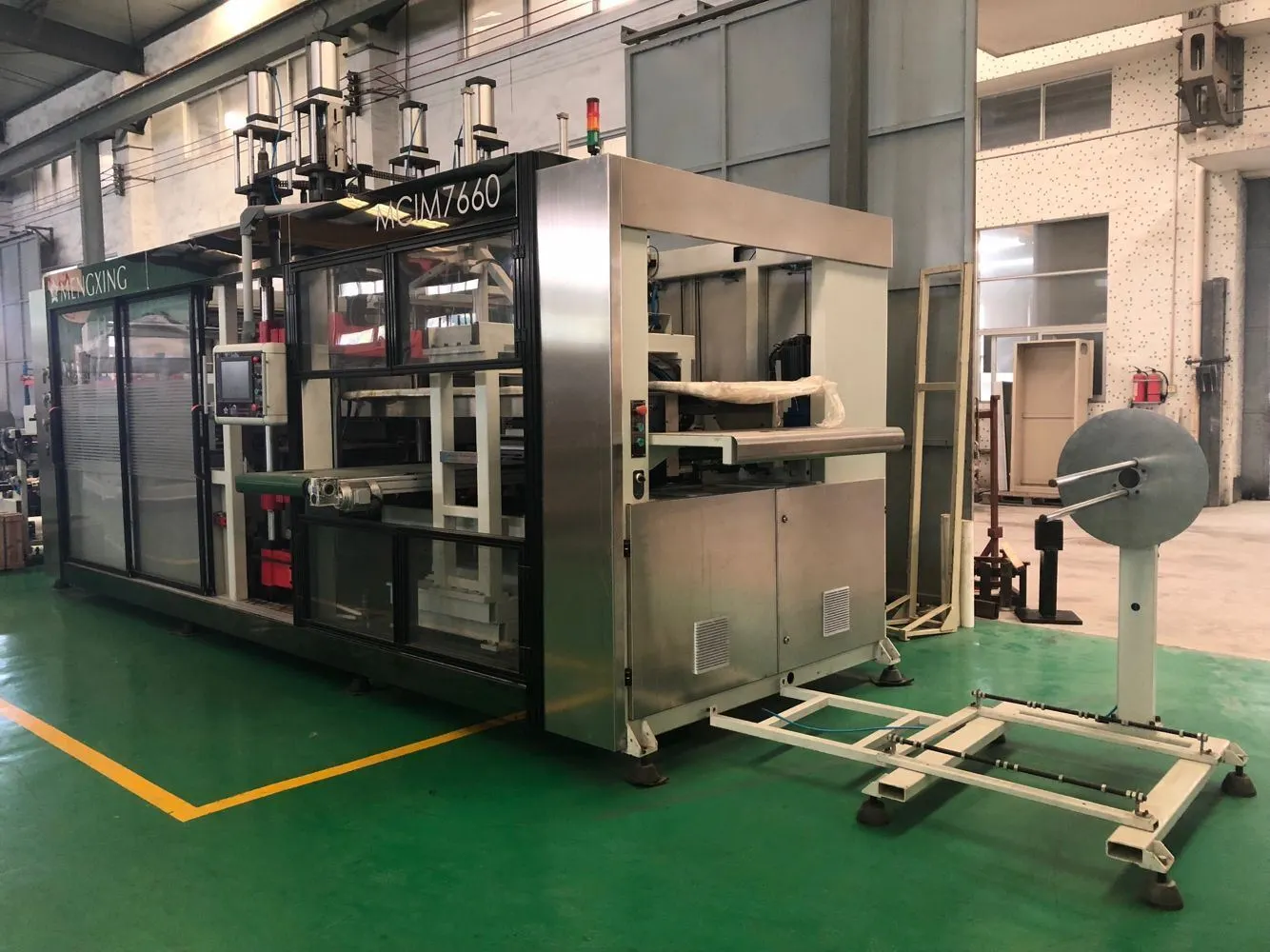

VIII,Workshop Pictures
Mengxing 2 Stations BOPS Forming Machine (cutting in mold)


IX,Package


Mengxing 2 Stations BOPS Forming Machine (cutting in mold)

X,Exhibition
Mengxing 2 Stations BOPS Forming Machine (cutting in mold)
This product will promote the standardization of work quality. It is able to make the work done very neat and accurate. The servo motor adopted is super powerful. This product will finally contribute to the improvement in production efficiency. Because it can effectively eliminate human error during operation. The servo motor adopted is super powerful.
